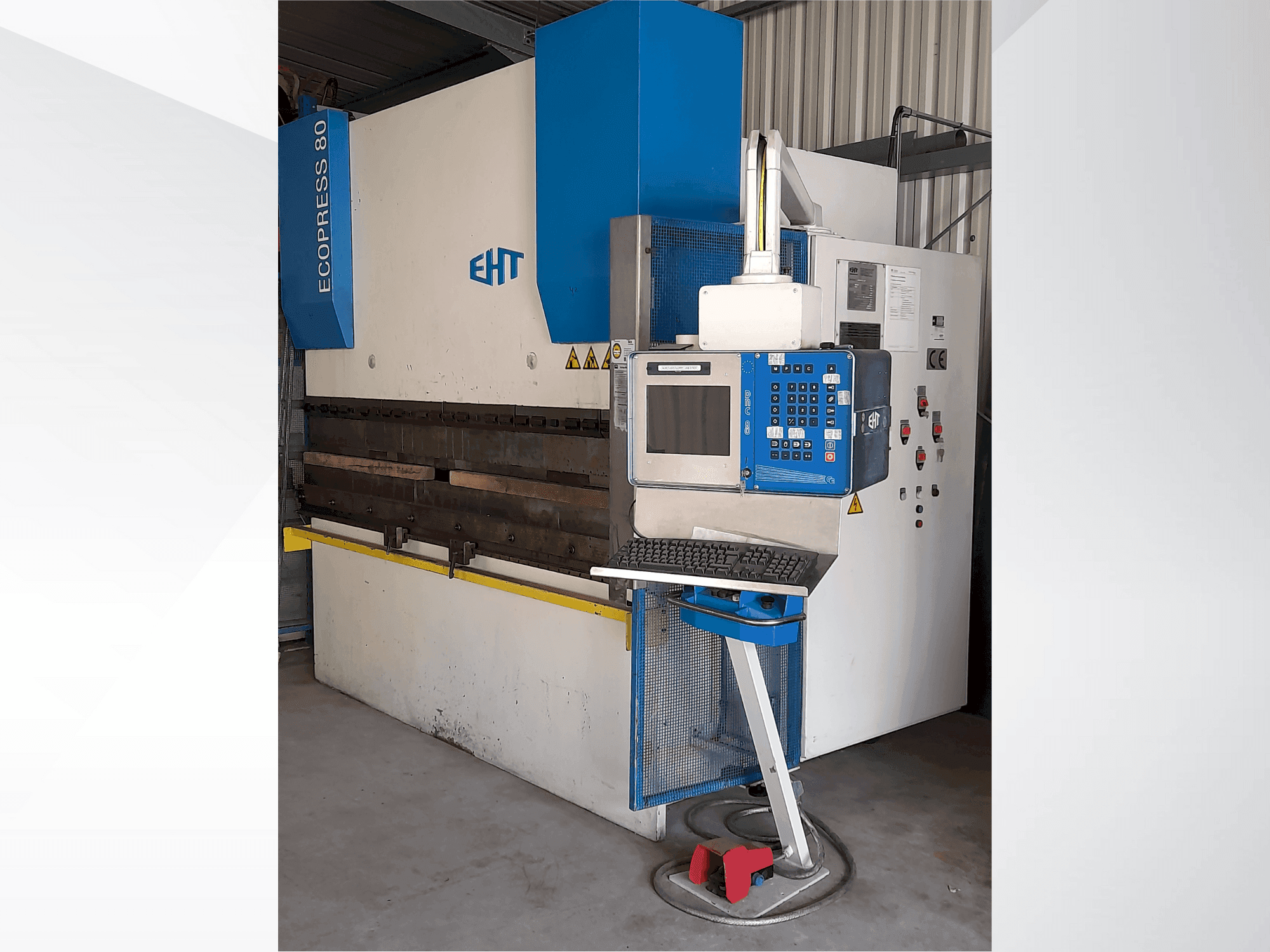

This EHT Ecopress 80 press brake was manufactured in 1997. It features a pressing force of 800 kN and a working length of 2550 mm. The main motor power is 7.5 kW, and it operates with a control type DNC84PS. Consider the opportunity to buy this EHT Ecopress 80 press brake. Contact us for more information about this machine.
Overview
- brand: EHT
- year: 1997
- MODEL: Ecopress 80
- application type: Bending
- Location: Germany
- machine type: Press Brake
Additional Information
Additional equipment
- Bending unit must be placed in the wagon manually
Extra Information
Main Machine Data/ 2.2.1 Dimensions/ Overall length: 4300 mm/ Overall width: 3490 mm/ Overall height above floor: 2750 mm/ 2.2.2 Functional Data/ Working length: 2550 mm/ Distance between machine columns: 2050 mm/ Column overhang: 300 mm/ Ram stroke: 240 mm/ Distance between table and ram: min. 320 mm, max. 560 mm/ Maximum press force: 800 kN/ Stroke speeds: Idle speed: 150 mm/s/ Pressing speed: 10 mm/s/ Retraction speed: 140 mm/s/ Machine weight: 7300 kg/ 2.2.3 Safety Data/ Safety distance: min. 220 mm/ Permissible stopping time: 137 ms/ 2.2.4 Hydraulics / Pneumatics/ Pressure in Hydraulic system: max. 280 bar/ Pneumatic system pressure: 4.5-6 bar/ Oil tank capacity: 200 l/ 2.2.5 Connection values/ Operating voltage: 3x400V/ Rated current of the main fuse: 50 A/ Connected load: 10 kW/ Main motor drive power: 7.5 kW/ 2.3 Rear stop/ 2.3.1 Stop beam adjustment/ X-axis stop range (from bending line): 5-1000 mm/ X-axis adjustment speed: 250 mm/s/ X-axis drive power: 0.5 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
