➤ Used ELB Optimat For Sale - Grinding | gindumac.com

Show in original language

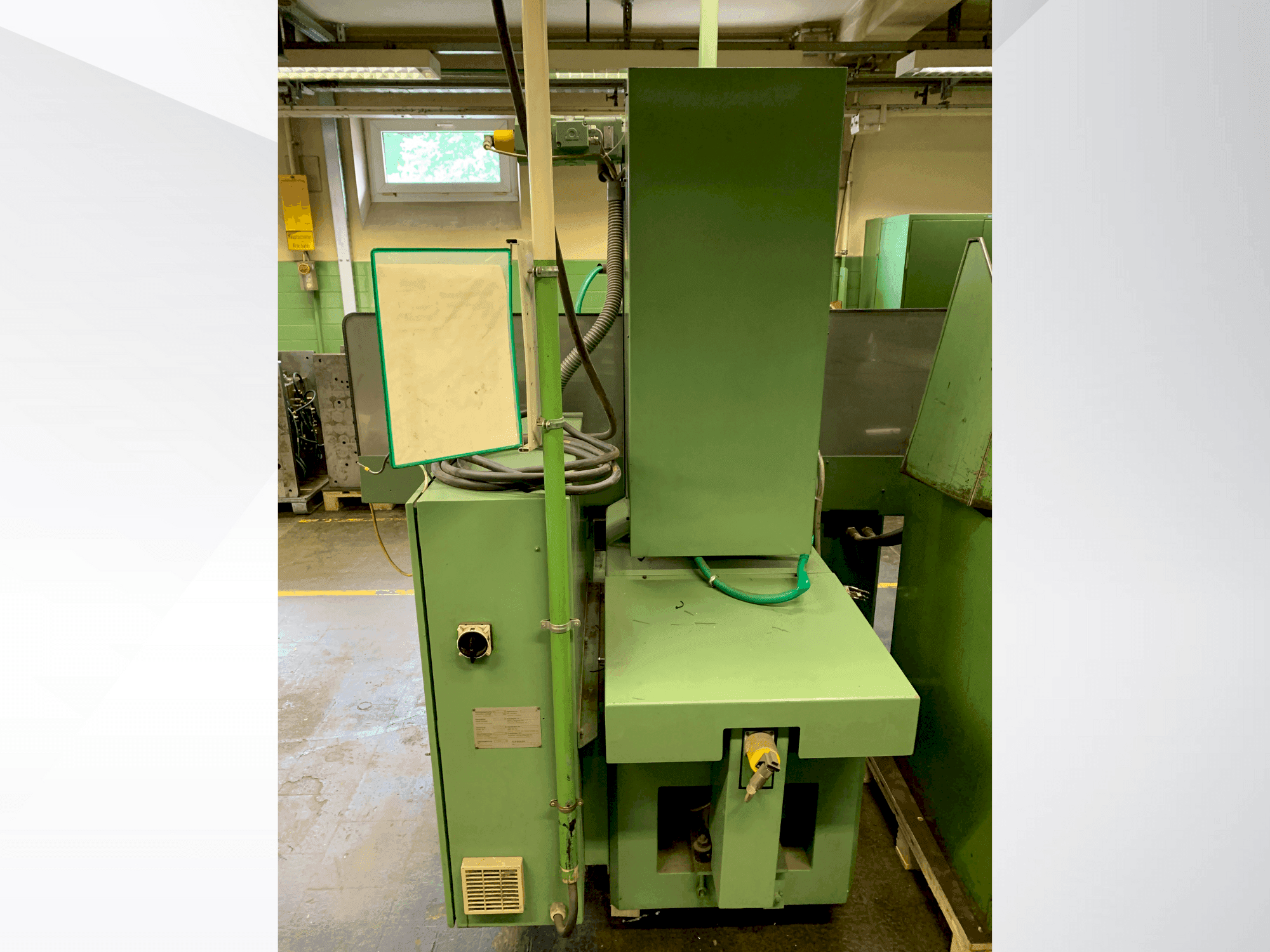

This 3-axis ELB Optimat Grinding machine was manufactured in 1989. It features a robust micro granite base and a powerful grinding spindle head with a speed of 1440 rpm. The machine offers a sanding length of 600mm and a width of 375mm, supporting a table load of 300kg. Ideal for precision tasks, the ELB Optimat includes a wet grinding device and a hand lever dressing device. For more information about this Grinding machine, please reach out to us.

Overview

brand: ELB
year: 1989
MODEL: Optimat
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine

Technical Information - ELB Optimat

Dimensions

Table Length: 900 mm
Table Load: 300 kg
Table Width: 350 mm

Movement

Number of Axes: 3

Technical Specification

Spindle Speed: 1440 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Machine base stand: micro granite
Guide system
Sanding disc holder: standard/horizontal sanding spindle/bore d=76. 2 mm/clamping width 20-30 mm/cone d=36 mm
Grinding spindle head: cone 36 mm, disc 300x50x76. 2 mm
Sanding l x w x h: 600 x 375 x 375 mm
X-axis: table feed 1-30 m/min
Y-axis: vertical feed max. 180 mm/min, infeed size adjustable from 0. 001 mm
Z-axis: automatic cross travel max. 350 mm, cross infeed size 1-40 mm, cross travel max. 1200 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
