- ELB SCHLIFF SWBD-30 VA II surface grinder machine

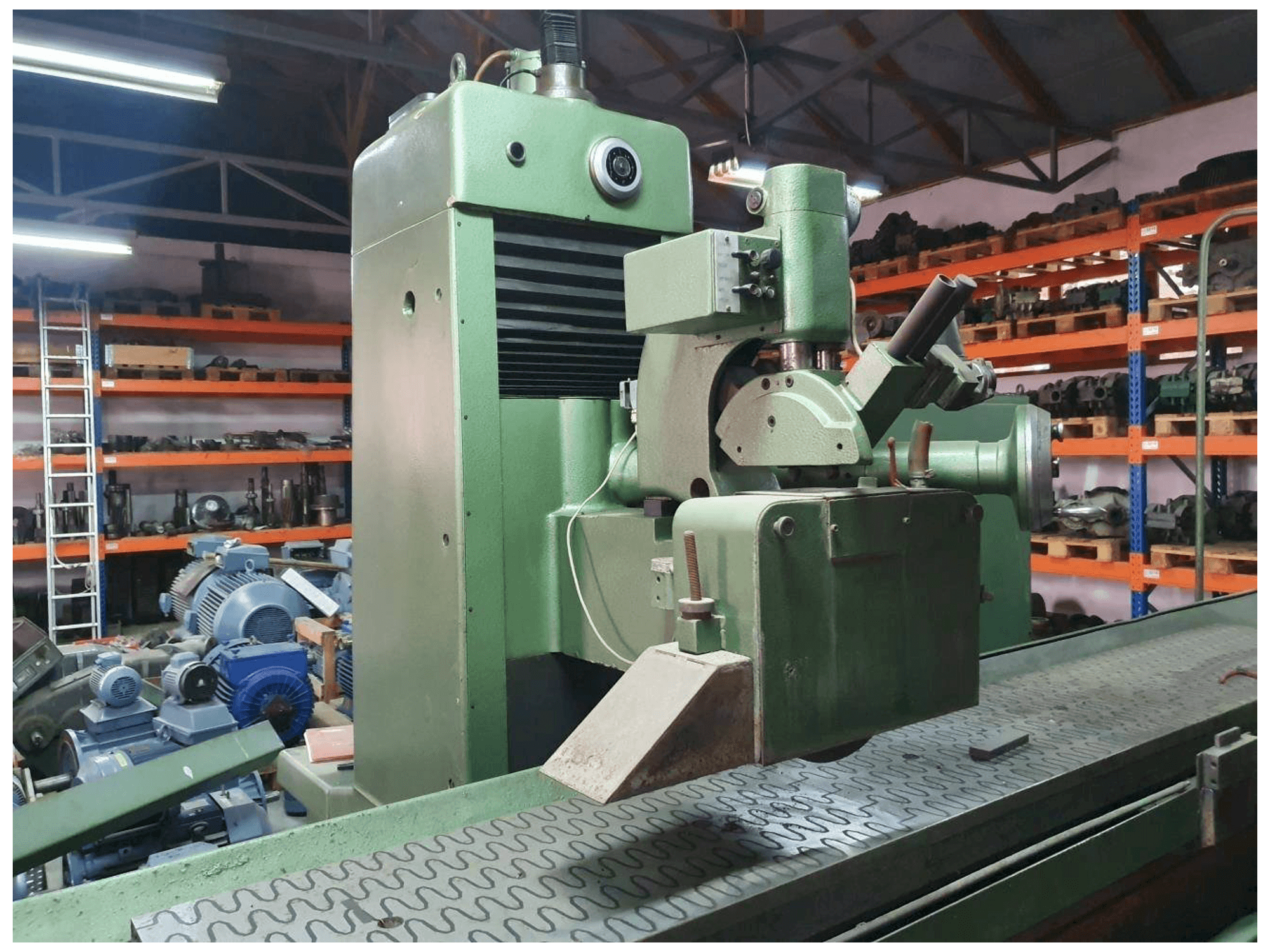

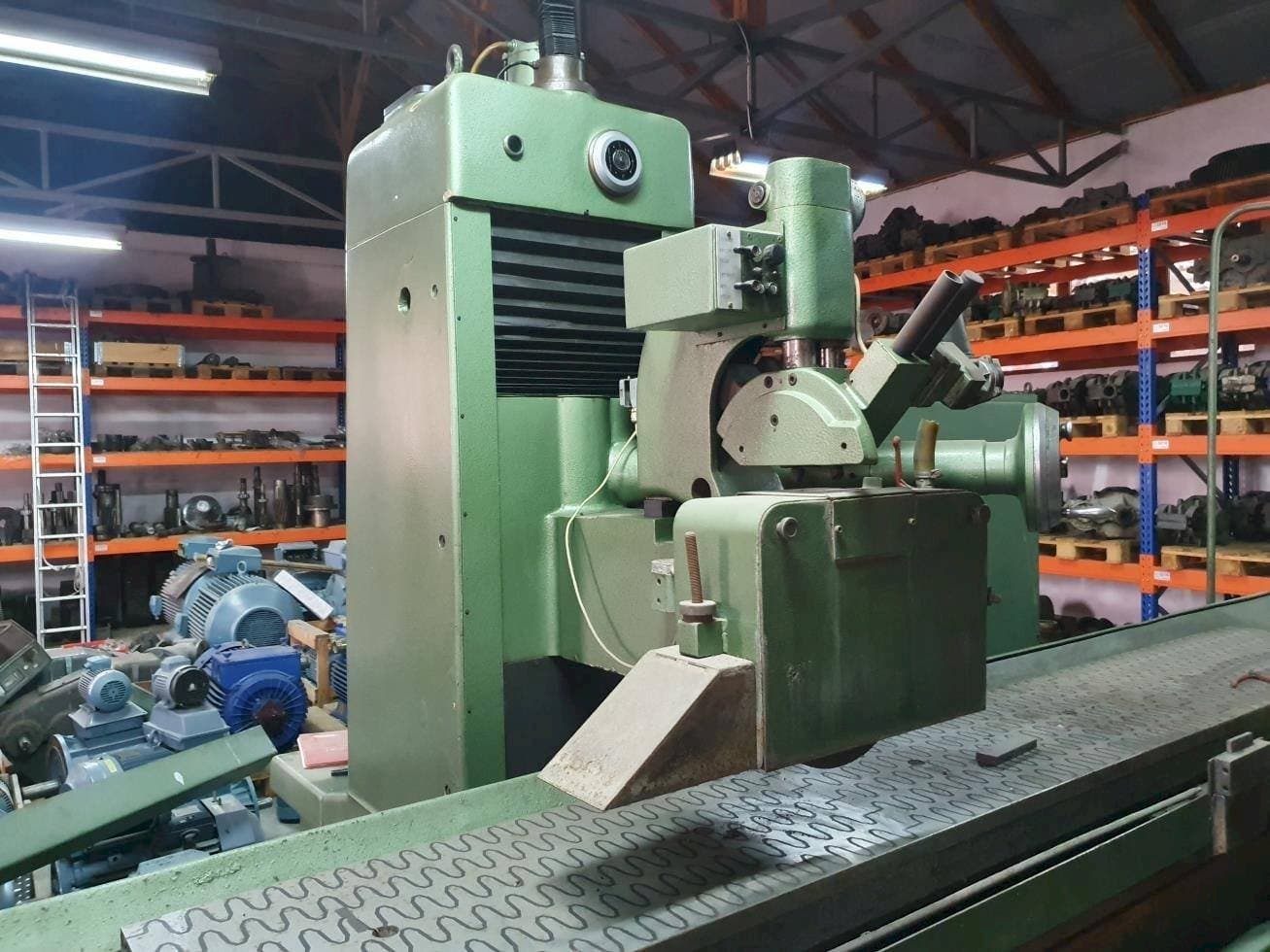

This ELB SCHLIFF SWBD-30 VA II surface grinder machine was made in the year 1970 and was renewed in 2002. The machine has a max grinding length of 3000 mm, a max grinding width of 500 mm, and an electro-automatic magnetic pole switch in electromagnetic plates.
Overview
- brand: ELB
- year: 1970
- MODEL: SCHLIFF SWBD-30 VA II
- application type: Grinding
- Location: Poland
- machine type: Surface Grinding Machine
Technical Information - ELB SCHLIFF SWBD-30 VA II
Dimensions
- Machine Depth: 2450 mm
- Machine Height: 2700 mm
- Machine Weight: 12500 kg
- Table Load: 2000 kg
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Cross travel of headstock slide: 500 mm
- Longitudinal travel of table: 3000 mm
- Number of t-slots: 3
- T-slot spacing: 125 mm, width of t-slots: 16h7
- Electro-automatic magnetic pole switch in electromagnetic plates
- Arbor for balancing grinding wheels
- Holder for grinding wheels
- Thermoregulation of coolant and lubricating oil
- Pump capacity for cooling: 100 l/min
- Swing fields p=24 mm
Technical Machine Benefits
- Electromagnetic table dimensions (w x l): 450 x 3000 mm
- Max grinding length: 3000 mm
- Max grinding width: 500 mm
- Max grinding height with new grinding wheel: 450 mm
- Max grinding height with worn grinding wheel: 540 mm
- Area of electromagnetic clamping plates: 1000 x 450 mm
- Number of electromagnetic clamping plates: 3 pcs.
- Dimensions of grinding wheels: ⌀ 450 x 203 x 80 mm
- Vertical travel of headstock slide: 465 mm
- Horizontal travel of headstock column slide: 500 mm
Extra Information
The machine went through a major overhaul performed in 2002
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
