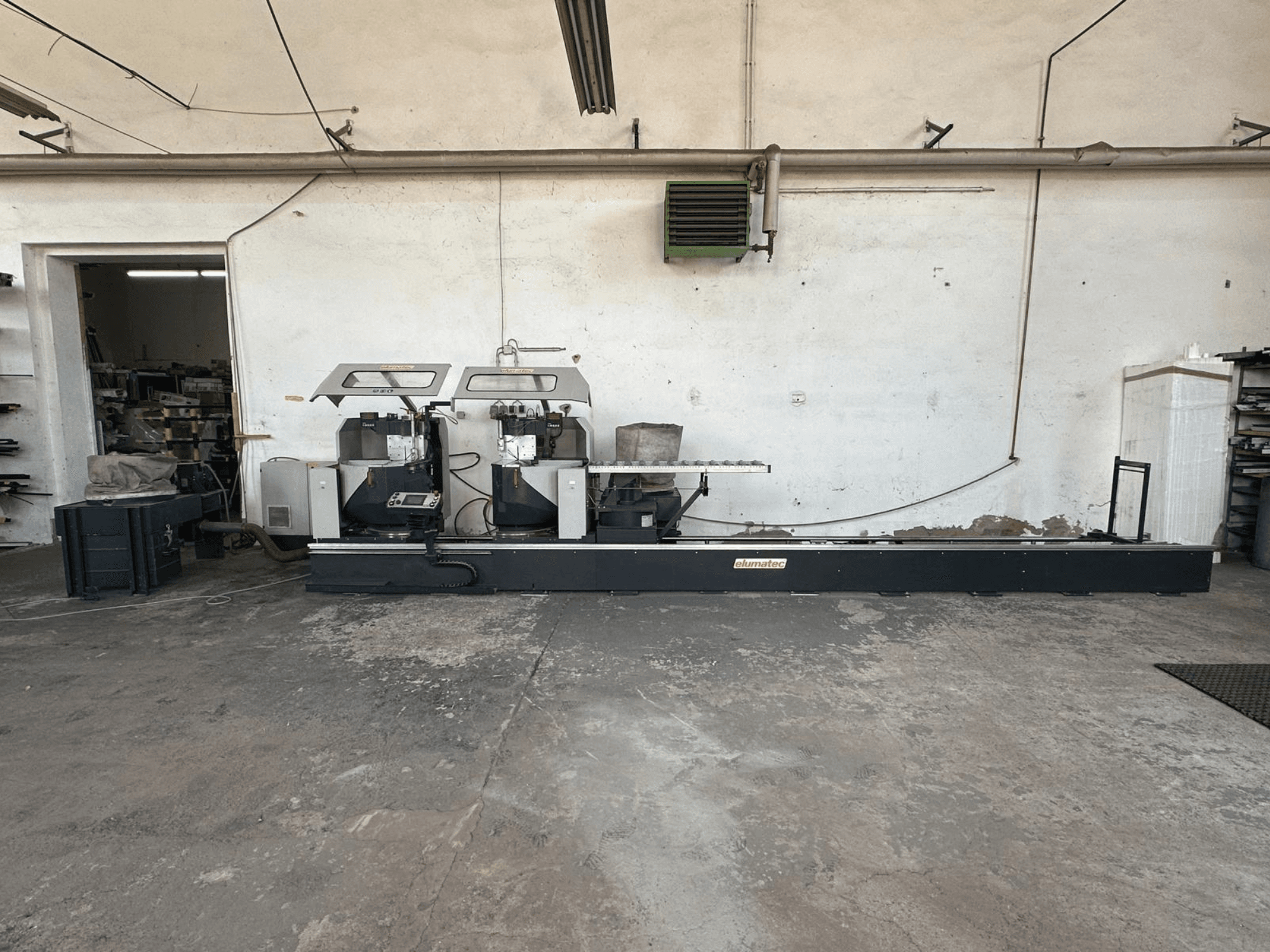

Circular Metal Saw manufactured in 2009. This Elumatec DG 244 features a cutting length of 6,000 mm and a saw blade diameter of 550 mm. It includes a motorized tilting range from 22.5° to 140° and comes with a mobile roller conveyor for efficient extraction. If you are looking to get high-quality cutting capabilities, consider the Elumatec DG 244 machine we have for sale. Contact us for further details.
Overview
- brand: Elumatec
- year: 2009
- MODEL: DG 244
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
Technical Information - Elumatec DG 244
Dimensions
- Machine Weight: 2492 kg
Additional Information
Cutting Length (X-Axis Travel): 6,000 mm (6.0 m)
Saw Blade Diameter: 550 mm
Controller: E 355 (2-Axis Control)
Tilting Range: 22.5° to 140° (Motorized E-Axis)
Software: Module for chop cuts and overlengths (E355/E555)
Software Interface: Connection for window construction programs
Additional equipment
Short length stop: Included for stationary unit
Profile lifting rail set: Included for stationary and mobile units
Roller conveyor: 1.5 m, mobile, 400 mm width for extraction
Workpiece support: Mobile type
Extraction Unit: Complete for DG 244, 230/400V, 50Hz, 2x 2.2kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
