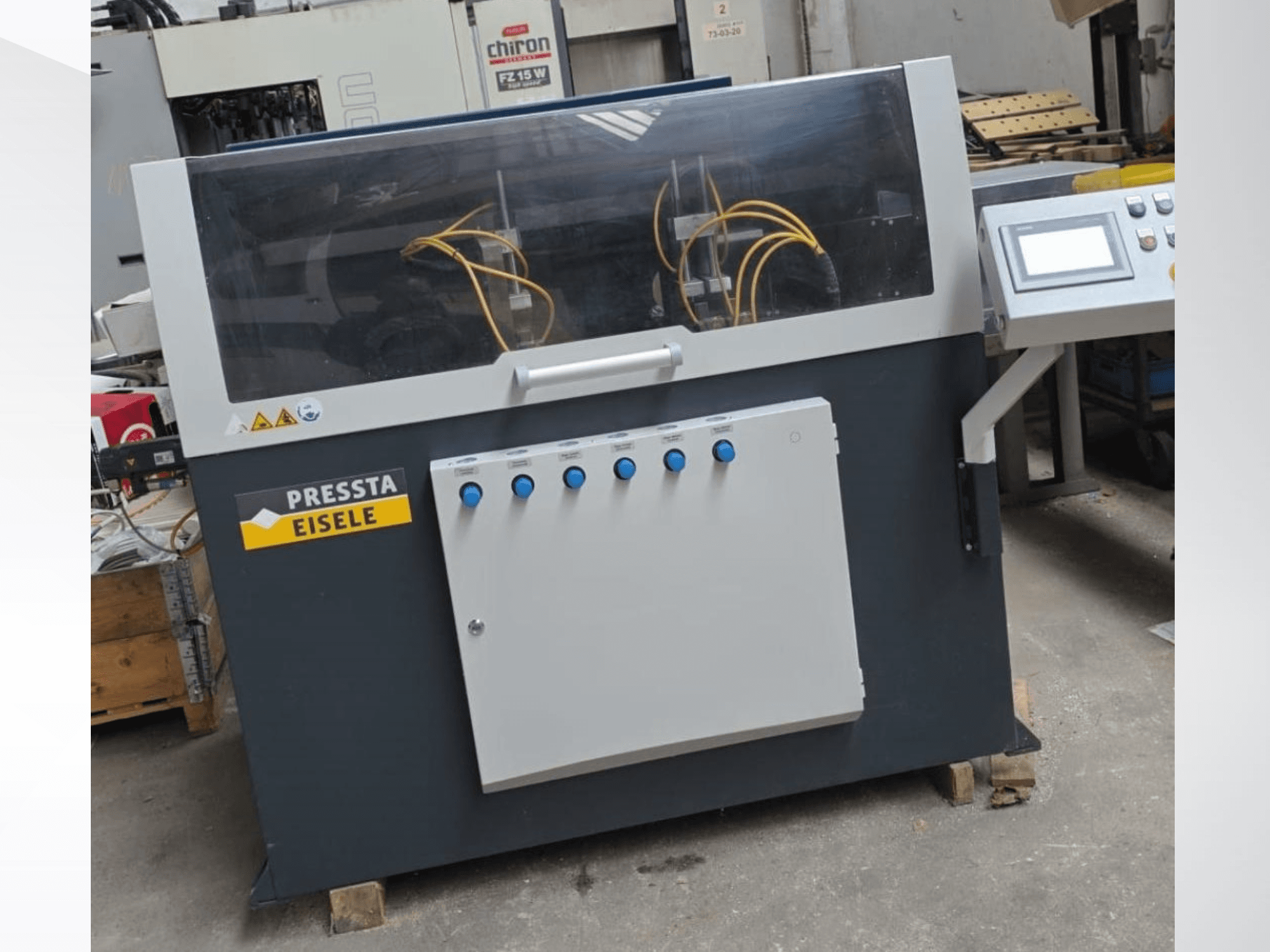

Circular Metal Saw manufactured in 2023. This PRESSTA EISELE PROFILMA 502 features a powerful 7.5 kW saw drive with a maximum saw blade speed of 2,850 rpm. It offers a cutting capacity of 270 x 150 mm and a maximum profile width of 270 mm. The machine includes a Siemens S7 control system with a touch panel for enhanced operation. If you are looking to get high-quality cutting capabilities, consider the PRESSTA EISELE PROFILMA 502 machine we have for sale. Contact us for further details.
Overview
- brand: PRESSTA EISELE
- year: 2023
- MODEL: PROFILMA 502
- production hours: 1809
- application type: Sawing
- Location: Germany
- machine type: Circular Metal Saw
- control unit brand: SIEMENS
Technical Information - PRESSTA EISELE PROFILMA 502
Control Unit
- Control Brand: SIEMENS
- Control Model: S7 with SIMATIC HMI Touch Panel
Dimensions
- Machine Height: 1800 mm
- Machine Length: 2400 mm
- Machine Weight: 1650 kg
- Machine Width: 2000 mm
Additional Information
- Saw Drive / Output: 7.5 kW (7,500 W), S6, 2,850 rpm
- Input Voltage / Current Type: 400 V, Three-phase, 50 Hz, I = 16A
- Operating Pressure: 6 - 8 bar
- Tool Specification: Suitable for saw blades Ø 550 mm (Saw blade bore: 40 mm)
- Saw Blade Speed (Max.): 2,850 rpm
- Cutting Capacity Dimensions: 270 x 150 mm (Width x Height)
- Cutting Height (Max.): 150 mm
- Cutting Diameter / Range: 270 mm max. / Round material at 90°: 190 mm max.
- Maximum Profile Width: 270 mm
- Section Length Limits: Min. 3 mm / Max. 4,000 mm
- Minimum Remnant Cut: From 75 mm (profile-dependent)
- Control System: Siemens S7 with SIMATIC HMI Touch Panel (Includes CPU 315, Flexisoft safety, piece counter, batch multiplier for bundle processing, cycle time indication in seconds, chain dimensions, and fault diagnostics)
- Connectivity: IXON router for remote VPN connection
- Material Feed Unit: 1 Axis — Electronic servo-driven material feed unit with 800 mm individual stroke feed length, utilizing a ball screw spindle, including a reversing device for cut lengths up to 4 m max. Profile support area in feed zone equipped with a lift/lower roller.
- Saw Feed: Motorized saw blade feed, steplessly adjustable (operating from bottom to top)
- Workpiece Clamping: Pneumatic horizontal and vertical profile clamping systems on both the feed and discharge sides of the saw head. Features a clamping pressure reduction system with 6 individual pressure regulators.
- Additional Processing Features: Cutting gap extension on both sides of the saw blade to protect the cut surface
- Lubrication: Intermittent spray device with level monitoring, automatic shut-off and a 1-liter lubricant reservoir
- Safety & Noise Protection: Complete safety guard over both the saw head and the feed unit. Frame interior lined with soundproofing insulation mats. Automatic machine shut-off via limit switch at the end of the material stock.
- Infeed/Outfeed Material Support:
* Infeed side: 740 mm roller conveyor with physical intrusion guard
* Outfeed side: 450 mm Pertinax tabletop with physical intrusion guard
- Extraction Ports: Two extraction nozzles Ø 100 mm
- Chip Extraction Unit:
* Model: Chip Extraction MG 3 (Italyvacuum s.r.l. Vortex 58 FT)
* Year: 2022
* Power: 3 kW
* Current: 7.2 A
* Voltage: 400 V / 3~ / ± 5%
* Weight: 130 kg
* Features: Integrated Cyclonic System, Contactless Antistatic System
- Viewing is possible while the power is on.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
