- ➤ Used Elumatec SBZ 131 For Sale | gindumac.com

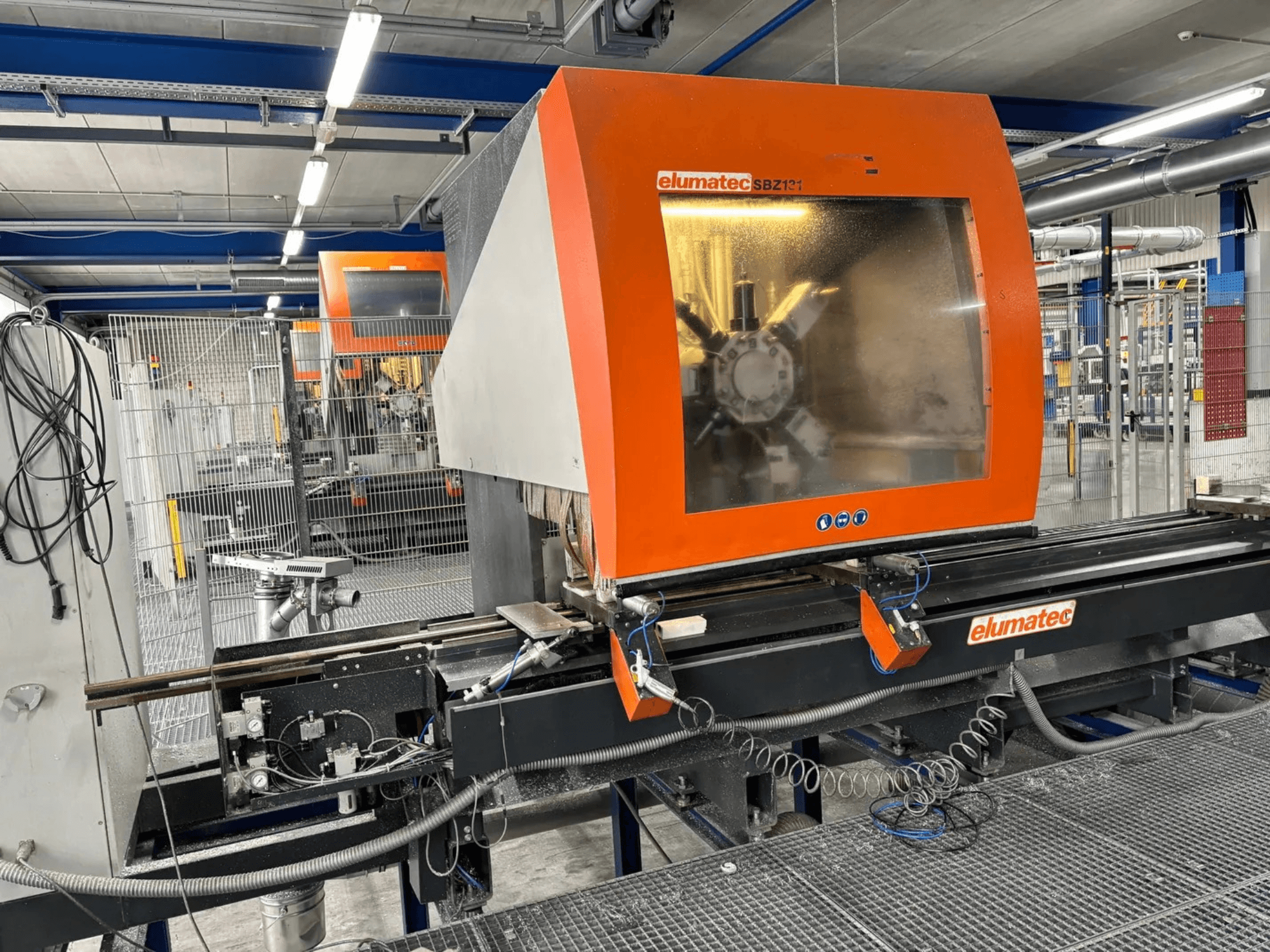

This 3-axis Elumatec SBZ 131 was manufactured in 2010. It features an impressive X-axis travel of 4200 mm, Y-axis travel of 485 mm, and Z-axis travel of 340 mm. The machine includes an 8-position rotating tool head and a maximum spindle speed of 6000 rpm. If you are looking to get high-quality profile machining capabilities, consider the Elumatec SBZ 131 CNC profile machining centre we have for sale. Contact us for further details.
Overview
- brand: Elumatec
- year: 2010
- MODEL: SBZ 131
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Elumatec SBZ 131
Dimensions
- Machine Height: 2000 mm
- Machine Length: 7500 mm
- Machine Weight: 5500 kg
- Machine Width: 1600 mm
Movement
- Number of Axes: 3
- X-axis Travel: 4200 mm
- Y-axis Travel: 485 mm
- Z-axis Travel: 340 mm
Technical Specification
- Spindle Power: 6 kW
- Spindle Speed: 6000 RPM
- Taper Size: BT 30
Additional Information
Control: Industrial PC with eluCam software; 15" colour monitor
Turret/tooling: 8-position rotating turret head with 8-position tool changer
Rapid traverse: X 60 m/min; Y 30 m/min; Z 30 m/min
Tool interface: BT30
Collet systems: ER25 / ER32
Saw blade diameter: approx. 300–420 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
