Elumatec - SBZ-140PL-MIL-ELU-2010-00001

Name: Elumatec SBZ-140
Brand: Elumatec
SKU: PL-MIL-ELU-2010-00001
Price: 37000 EUR
Availability: InStock

37,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Elumatec SBZ-140 For Sale | gindumac.com

Show in original language

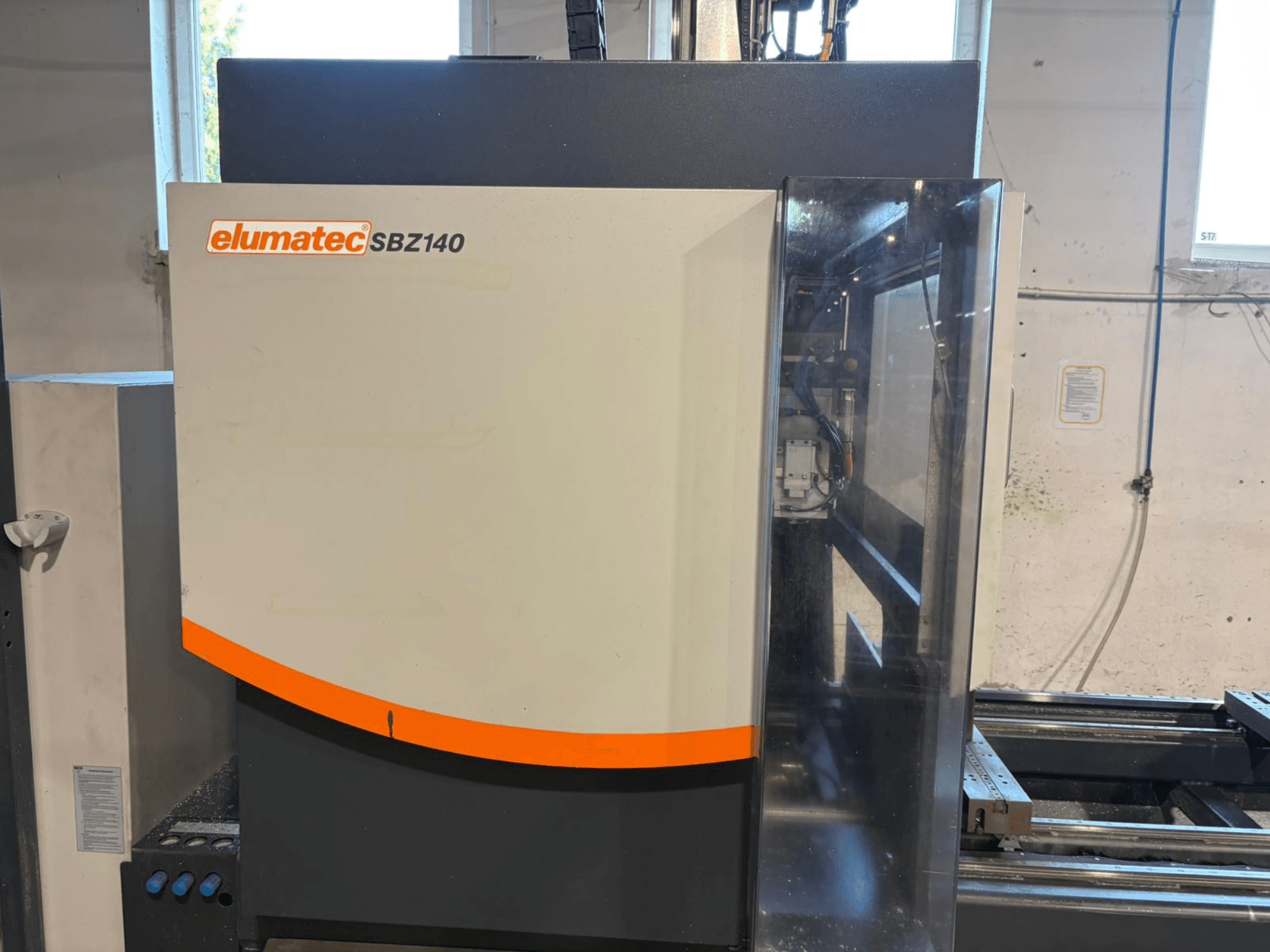

This 4-axis Elumatec SBZ-140 was manufactured in 2010. It features a maximum profile length of 7600 mm and a Y-axis travel of 850 mm, making it suitable for machining aluminum and thin-walled steel profiles. The machine includes an air-cooled spindle with a maximum speed of 24,000 rpm and a tool magazine capacity of 8 positions for efficient operation. If you are looking to get high-quality machining capabilities, consider the Elumatec SBZ-140 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Elumatec
year: 2010
MODEL: SBZ-140
application type: Milling
Location: Poland
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ-140

Movement

Number of Axes: 4
X-axis Travel: 850 mm
Z-axis Travel: 650 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 24000 RPM

Additional Information

Application: Machining of aluminum and thin-walled steel profiles
Operating system: Windows
Machining capabilities: Milling, drilling, tapping, end machining
Continuous machining range: 0°–180°
Working area:
- Max. profile length with end machining: 7480 mm
- Max. profile length without end machining: 7600 mm
Axis travels:
- A-axis rotation: 0°–180°
- A-axis programming increment: 0.1°
Axis speeds:
- Y-axis: up to 60 m/min
- Z-axis: up to 60 m/min
Spindle: Air-cooled
Tool magazine: 8 positions, co-moving for fast tool changes, expandable system
Machine features: Stationary profile machining, fast automatic tool changes, suitable for aluminum and thin-walled steel profiles, two machining zones (optional)
Pneumatic system: 7 bar required, approx. 180 l/min air consumption (with spray system)
Electrical data: 400 V / 3-phase / 50 Hz, main connection 63 A
Control panel: 15” color display, USB interface, LAN connection

Additional equipment

Angle head set (0°, 90°, 180°, 270°) for end machining and double profiles
Pendulum mode / 2 working zones (optional configuration)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
