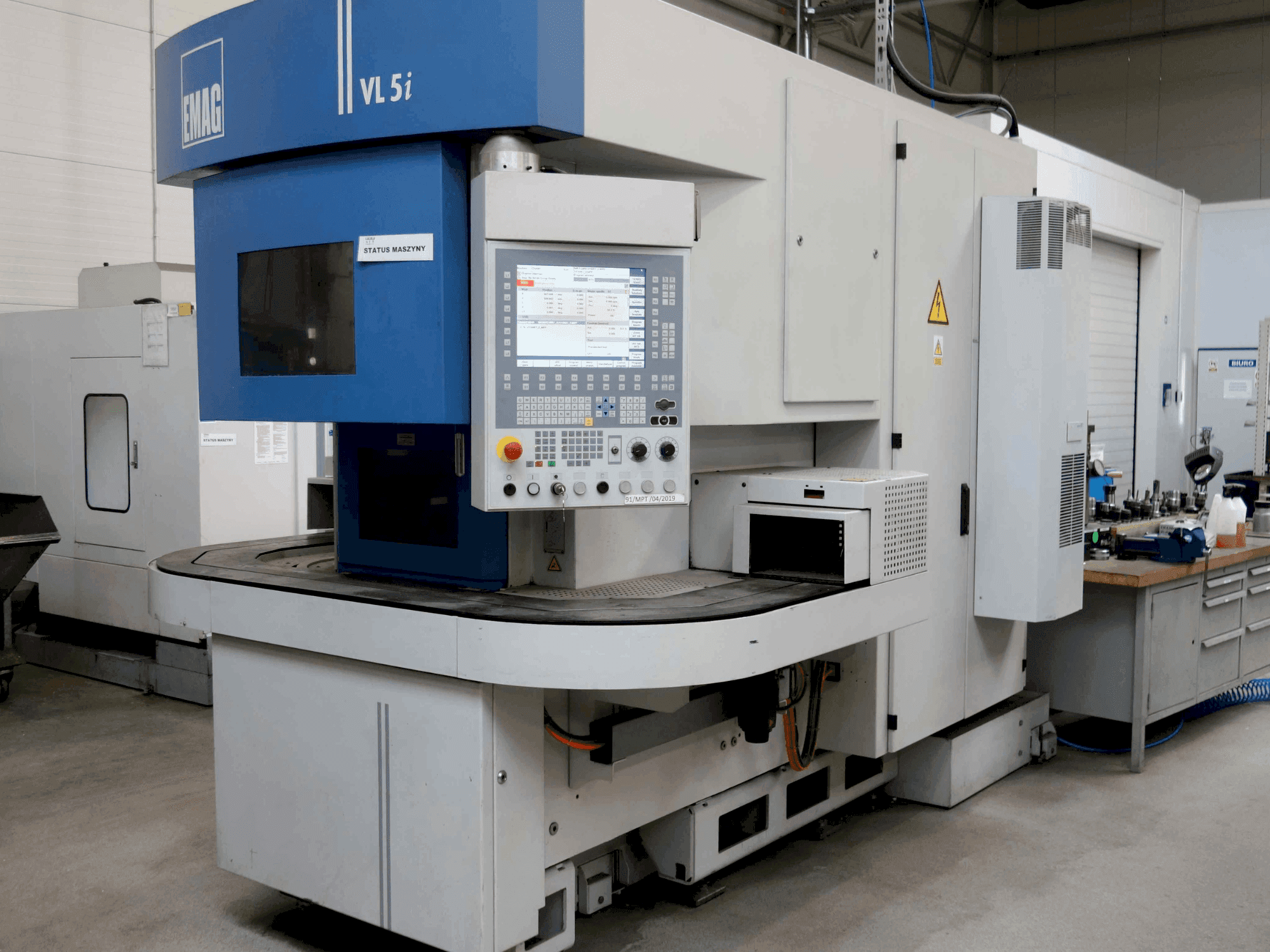

This EMAG EMAG VL5 i DSL vertical turning machine was manufactured in 2014. It features a powerful main spindle drive with 18kW and a speed range of 0-4500 rpm. Equipped with a Siemens SINUMERIK 840Dsl control system and a robust 12-position EMAG flange turret, it ensures precise and efficient operations. Ideal for handling workpieces up to 6kg with its specialized hydraulic chuck. For more information about this vertical turning machine, please reach out to us.

Overview

  • brand: EMAG
  • year: 2014
  • MODEL: EMAG VL5 i DSL
  • application type: Turning
  • Location: Poland
  • machine type: Vertical Turning Machine
  • control unit brand: SIEMENS

Technical Information - EMAG EMAG VL5 i DSL

Control Unit

  • Control Brand: SIEMENS
  • Control Model: SINUMERIK 840Dsl

Dimensions

  • Machine Depth: 3900 mm
  • Machine Height: 3200 mm
  • Machine Length: 3120 mm
  • Machine Weight: 7500 kg

Movement

  • Number of Axes: 2
  • X-axis Travel: 745 mm
  • Z-axis Travel: 300 mm

Technical Specification

  • Driven Tools: Yes
  • Max. Workpiece Diameter: 220 mm
  • Max. Workpiece Height: 175 mm
  • Spindle Power: 18 kW
  • Spindle Speed: 4500 RPM
  • Through-spindle Coolant: Yes

Additional Information

- Max. Chuck Diameter: 250 mm

- Max. Swing Diameter: 270 mm

- Closed Standard Automation Capacity: 16 (80...220 mm) / 10 kg; 22 (30...160 mm) / 8 kg; 37 (30...85 mm) / 4.5 kg

- Max. Permissible Total Automation Load: 175 kg

- Chain Length: 224 Inches

- Number of Chain Links: 224

- Chain Pitch: 1 Inch (25.4 mm)

- Loading Time: 2-4 s

- Spindle Flange (DIN 55026): Size 6

- Front Spindle Bearing Diameter: 110 mm

- Main Drive AC Asynchronous Motor Power (100/40% ED): 18 / 27 kW

- Main Drive Torque (100/40% ED): 200 / 300 Nm

- Corner Speed: 850 rpm

- Rapid Traverse Rate X: 60 m/min

- Rapid Traverse Rate Z: 30 m/min

- Feed Force X and Z: 10 kN

- Ball Screw Diameter X / Z: 40 mm

- Tool Carrier: 12-position turret, Cylindrical Shank Receptacle DIN 69880 (VDI 40)

- Tool Shank Diameter: 40 mm

- Max. Tool Length incl. Holder: 190 mm

- Max. Tool Interference Circle: 760 mm

- Driven Tools Max. Speed: 6000 rpm

- Driven Tools Corner Speed: 3000 rpm

- Driven Tools Max. Power: 8.5 kW

- Driven Tools Max. Torque (10/40/100% ED): 40 / 24 / 15 Nm

- Current Supply / Current Type: 3 ~

- Frequency: 50 Hz

- Operating Voltage: 400 V

- Control Voltage General (DC): 24 V

- Control Voltage Valve / AC: 24 V (DC) / 230 V (AC)

- Light Connection: 24 V

- Connection Power: 36 kW

- Rated Current: 64 A

- Supply Fuse: 80 A

- Electrical Execution Standard: VDE 0113

- Length incl. Chip Conveyor: 4185 mm

Additional equipment, not included

  • Coolant tank capacity: 360 liters

Machine Benefits

Technical Machine Benefits

  • High working accuracy, rapid traverse speeds, high maximum speed of driven tools

  • Machine from single shift operation

  • Maximum room temperature: up to 30°c

  • Maximum humidity: 50%

  • Sound pressure level: 78db(a)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
