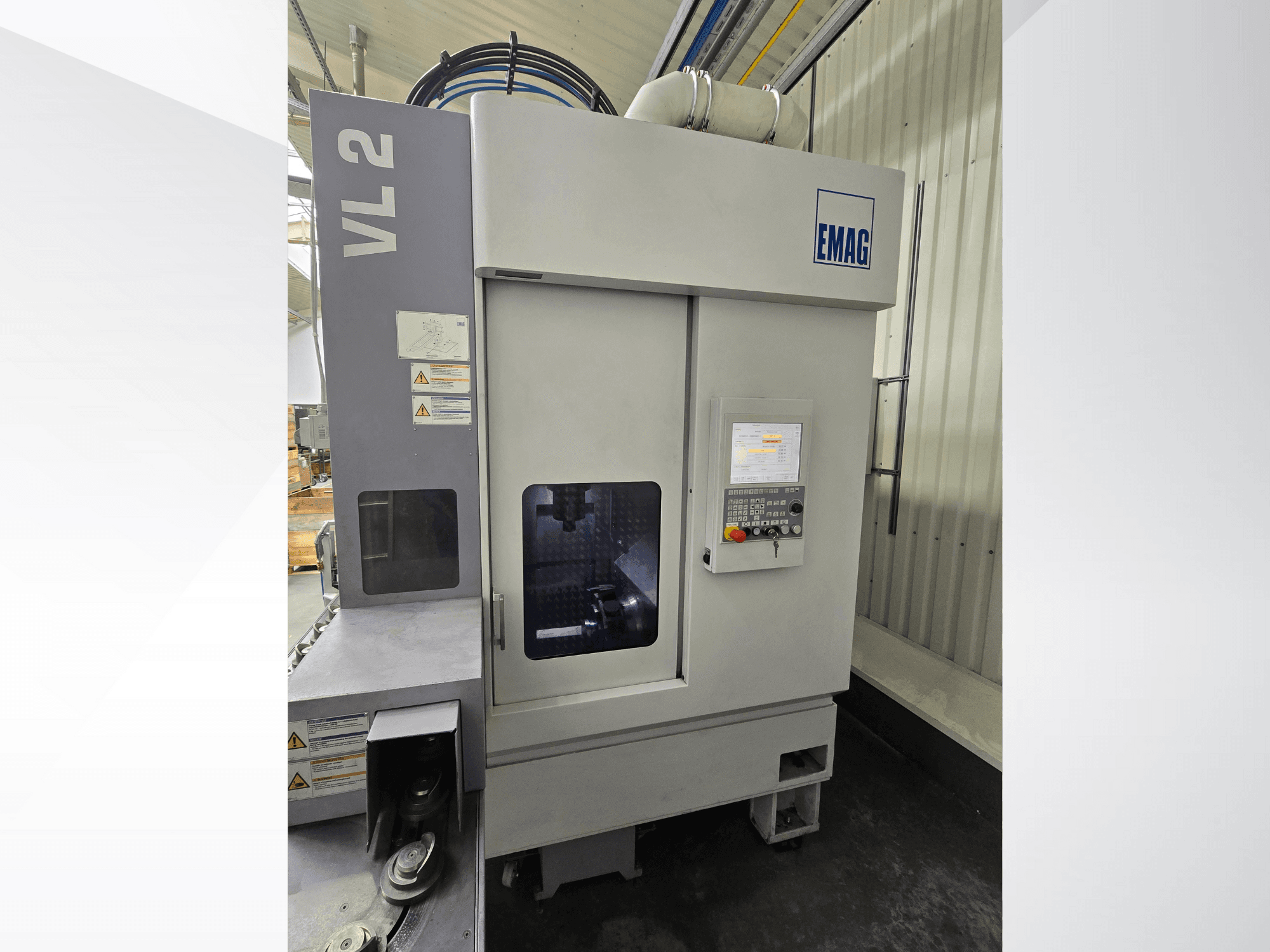

This 3-axis EMAG VL2 vertical turning machine was manufactured in 2017. It features a max workpiece diameter of 100 mm, chuck diameter of 160 mm, and a swing diameter of 210 mm. The main spindle offers a power rating up to 18.1 kW and a max spindle speed of 6,000 rpm. Consider the opportunity to buy this EMAG VL2 vertical turning machine. Contact us for more information.
Overview
- brand: EMAG
- year: 2017
- MODEL: VL2
- production hours: 10437
- application type: Turning
- Location: Hungary
- machine type: Vertical Turning Machine
Technical Information - EMAG VL2
Movement
- Number of Axes: 3
- X-axis Travel: 650 mm
- Y-axis Travel: 50 mm
- Z-axis Travel: 375 mm
Technical Specification
- Spindle Power: 18.1 kW
- Spindle Speed: 6000 RPM
Additional Information
Run time: 10,437 hours
Max. workpiece diameter: 100 mm (4")
Chuck diameter: 160 mm (6.5")
Swing diameter: 210 mm (8")
Max. workpiece length: 150 mm (6")
Main spindle:
Power rating (40% / 100%): 18.1 / 13.9 kW (24 / 19 hp)
Torque (40% / 100%): 77 / 59 Nm (57 / 44 ft-lb)
Turret:
Tool positions: 12
Driven tools speed: 6,000 rpm
Driven tools torque (30% / 100%): 27 / 15 Nm (20 / 11 ft-lb)
Rapid traverse rate:
X axis: 60 m/min
Y axis: 30 m/min
Z axis: 30 m/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
