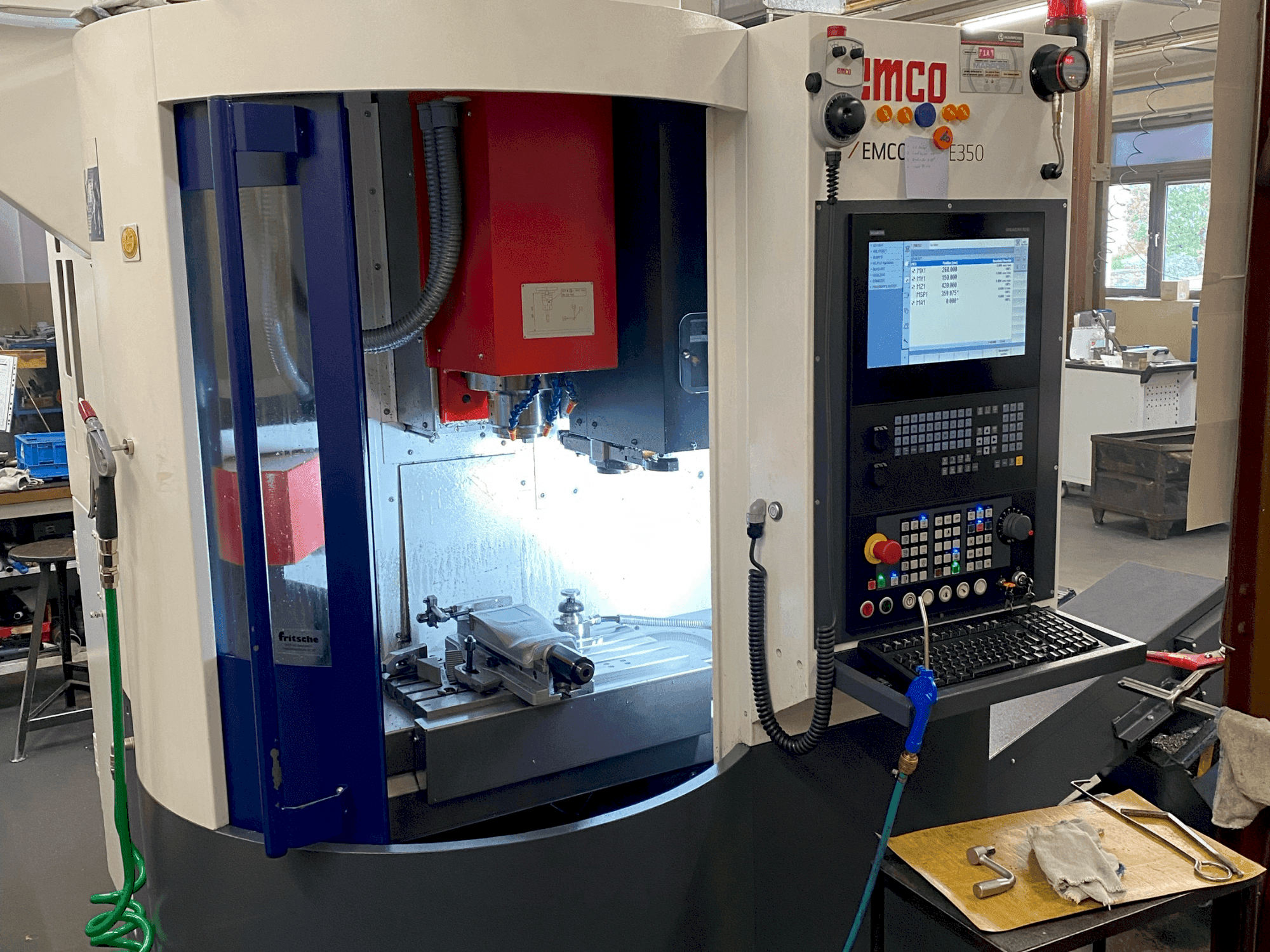

Front view of EMCO Emcomill E350 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

EMCO Emcomill E350

Photo Gallery

EMCO - Emcomill E350DE-MIL-EMC-2023-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO Emcomill E350 For Sale | gindumac.com

Show in original language

This 3-axis EMCO Emcomill E350 vertical machining centre was manufactured in 2023. It features a Siemens 828D control, electronic handwheel, and a tool magazine with 20 positions. The spindle speed reaches up to 10,000 rpm, and it includes a chip conveyor and high-pressure coolant device. If you are looking to get high-quality milling capabilities, consider the EMCO Emcomill E350 machine we have for sale. Contact us for more information about this machine.

Overview

brand: EMCO
year: 2023
MODEL: Emcomill E350
production hours: 255
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - EMCO Emcomill E350

General Data

Measurements width: 1700 mm
Measurements depth: 1600 mm
Measurements height: 2200 mm
Machine weight: 1970 kg

Control Unit

Brand: SIEMENS
Model: 828D

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7 KW
Number of axis: 3

Movement

X-AXIS Movement: 350 mm
X-AXIS Feed Force: 2400 N
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 250 mm
Y-AXIS Feed Force: 2400 N
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Feed Force: 4000 N
Z-AXIS Rapid traverse: 24 m/min

Tools

Max weight: 5 kg
Max tool diameter: 63 mm
Max tool length: 200 mm
Type of tool holder: ISO 30

Additional Information

Additional equipment

8 bar high pressure coolant device
Chip conveyor 500 mm
Cleaning gun/multiflow
Oil mist separator
Tightening bolt SK 30
NC dividing head TANI100 without chuck
Manual tailstock for NC dividing head TANI100
Chuck flange for NC dividing head TANI100
Manual 3-jaw chuck 100 mm

Machine Benefits

Technical Machine Benefits

Pitch: x - 20 mm, y - 10 mm, z - 10 mm
Max. Workpiece size: 350 x 250 mm
Clamping surface: 500 x 300 mm
Tool magazine: 20 positions
Tool clamping force: 1040 n
Tool change time: 2. 5 seconds
Spindle torque: 41 nm (s6-40%)
Tank capacity: 140 litres

Extra Information

Machine still under power // Machine still has warranty until 07.04.2025

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
