EMCO TURN E25

Photo Gallery

EMCO - TURN E25NL-TUR-EMC-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO TURN E25 For Sale | gindumac.com

Show in original language

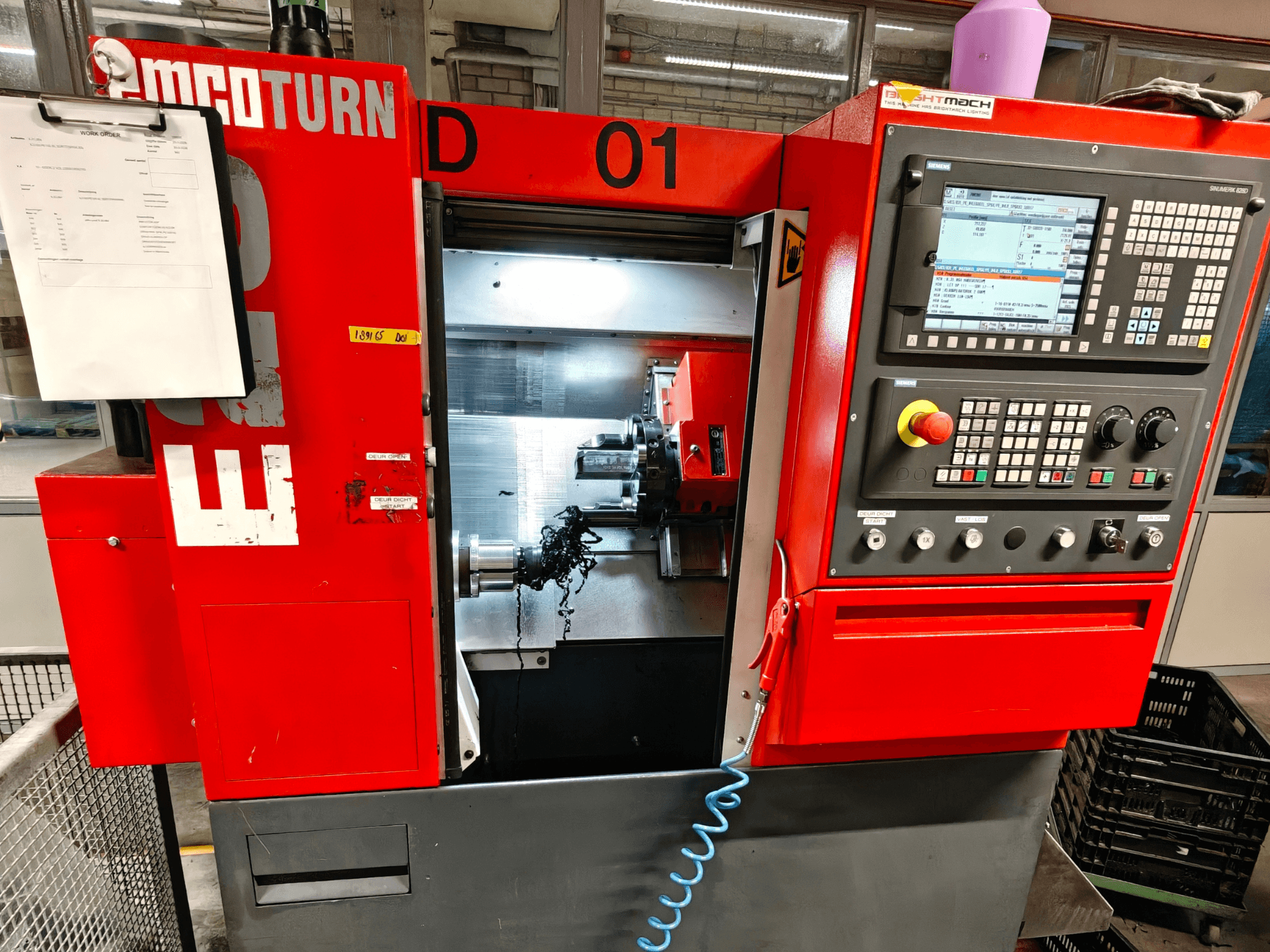

Horizontal turning machine manufactured in 2011. These EMCO TURN E25 features a maximum turning diameter of 85 mm and a turning length of 225 mm. Includes a VDI 16 disk turret with 12 tool stations and a maximum chuck size of 100 mm. If you are looking to get high-quality turning capabilities, consider the EMCO TURN E25 machines we have for sale. Contact us for further details. 2 units available.

Overview

brand: EMCO
year: 2011
MODEL: TURN E25
production hours: 4741
application type: Turning
Location: Netherlands
machine type: Horizontal Turning Machine
Available from: 26/08/2026
control unit brand: SIEMENS

Technical Information - EMCO TURN E25

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 828D

Additional Information

Availability: 2 units
Working range:
- Swing over bed: 250 mm
- Max. turning diameter: 85 mm
- Max. turning length: 225 mm
- Max. bar capacity: 25.5 mm
- Distance between centers: 405 mm
Main spindle & drive:
- Spindle connection: Ø 70 h5
- Max. chuck size: Ø 100 mm
- Max. torque: 35 Nm
- C-axis resolution: 0.001°
Tooling system:
- Turret: VDI 16 disk turret with directional logic
- Tool stations: 12
- Tool shank cross-section: 12 x 12 mm
Feeds & axis performance:
- Feed force (X / Z): 3000 N / 3500 N
- Rapid traverse (X / Z): 15 m/min / 24 m/min
- Positioning spread (Ps): 3 µm
Utilities:
- Supply voltage: 400 V (3/PE)
- Total connected load: 6 kVA
- Coolant tank capacity: 140 liters
- Sound pressure level: 78 dB(A)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
