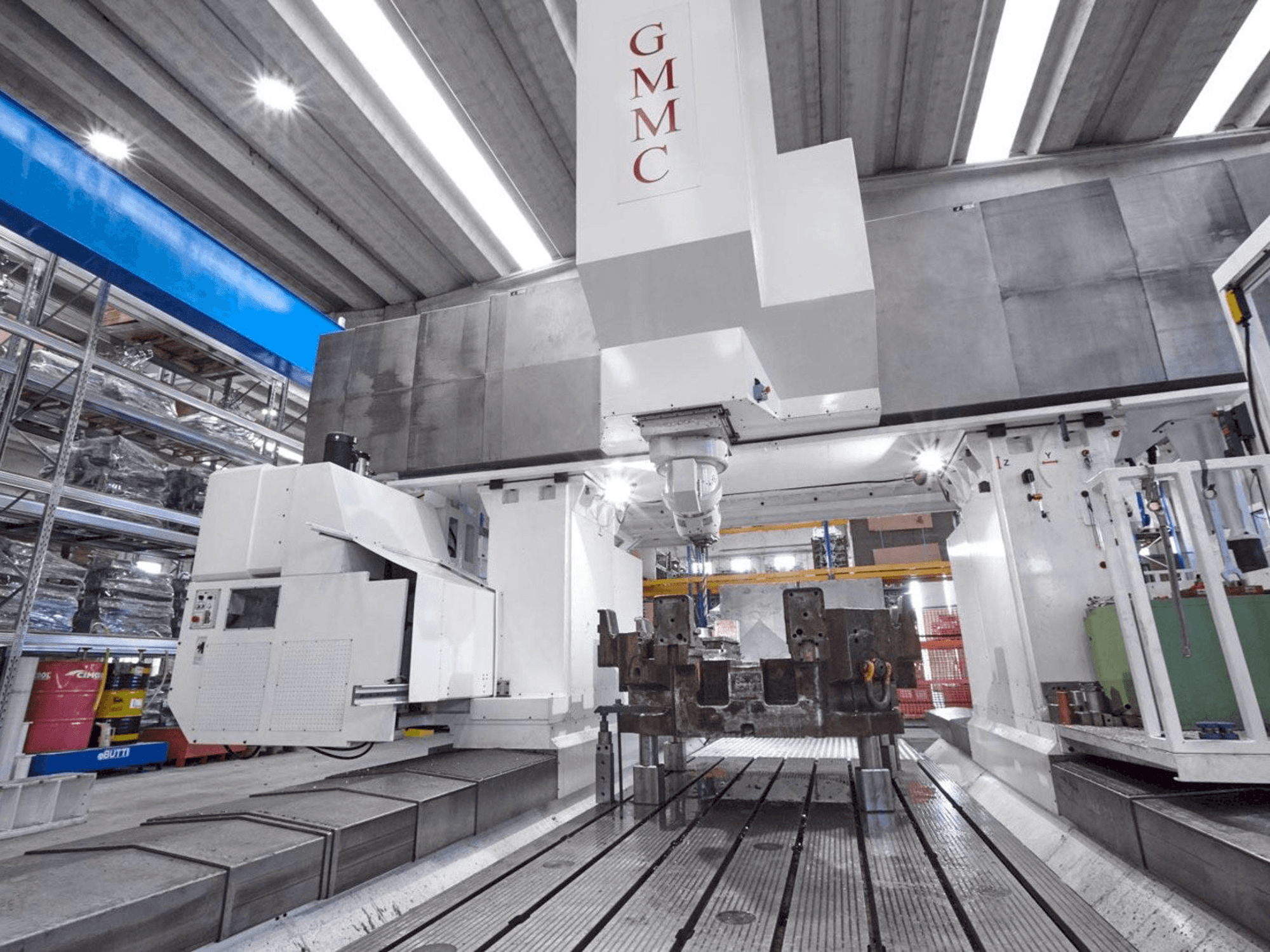

Front view of Emsil GMMC-6000  machine

Emsil GMMC-6000

Emsil - GMMC-6000

2023

550,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This EMSIL GMMC-6000 Universal Machining center was made in 2023. It is equipped with a Fanuc 31i control unit. The machine has a spindle speed of 3000 rpm.

Overview

  • brand: Emsil
  • year: 2023
  • MODEL: GMMC-6000
  • application type: Milling
  • Location: Romania
  • machine type: Machining centers (universal)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: RO-MIL-EMS-2023-00001

Technical Information

Control Unit

  • Brand: FANUC
  • Model: 31i

Main drive

  • Spindle speed range: 3000 1/MIN
  • Spindle motor power: 37/45 kW

Movement

  • X-AXIS Movement: 6000 mm
  • Y-AXIS Movement: 3000 mm
  • Z-AXIS Movement: 1500 mm

Table

  • Outer length: 6000 mm
  • Outer width: 2000 mm
  • Table load: 5000 kg/m2

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance between columns: 2800 mm
      • - Ram section : 470x570 mm
      • - Working feed on axes: 0-12000 mm/min
      • - Rapid feed on axes: 15000 mm/min
      • - Taper: iso-50 (din69871)
      • - Servomotors ac (brushless)
      • - Telescopic covers for x and y axis
      • - Internal/external tool cooling
      • - Centralized hydraulic and lubrication unit
      • - Foundation elements, 1 set
    • Qualitative Machine Benefits:
      • - Painting: ral7035
      • - Heidenhain linear scales for x and y axes & guideway with integrated measuring system schneeberger for z axis
      • - Chip evacuation system (2 pieces chip conveyors)
      • - Tu-37 automatic indexing milling head (undetacheable)
      • - A axis: 360°
      • - C axis: ±180°
      • - Maximum torque: 1400 nm
      • - Pick up station with 2 posts for automatic changing of the head

    Extra information

    • - The following options are not included in the above price of standard machine: Heidenhain linear scales for X and Y axes & guideway with integrated measuring system Schneeberger for Z axis: Price: 20.000,00 Eur Fixed table 6000x2000 mm, max. load on table: 5000 kg/m² Price: 42.000,00 Eur Chip evacuation system (2 pieces chip conveyors) Price: 25.000,00 Eur TU-37 automatic indexing milling head (undetacheable) ➢ A axis: 360° ➢ C axis: ±180° ➢ 2.5° indexing in 2 planes ➢ Maximum power: 37 Kw ➢ Maximum torque: 1400 Nm ➢ Maximum speed: 3000 rpm ➢ Taper: ISO-50 (DIN69871) Price: 105.000,00 Eur Pick up station with 2 posts for automatic changing of the head Price: 45.000,00 Eur

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
