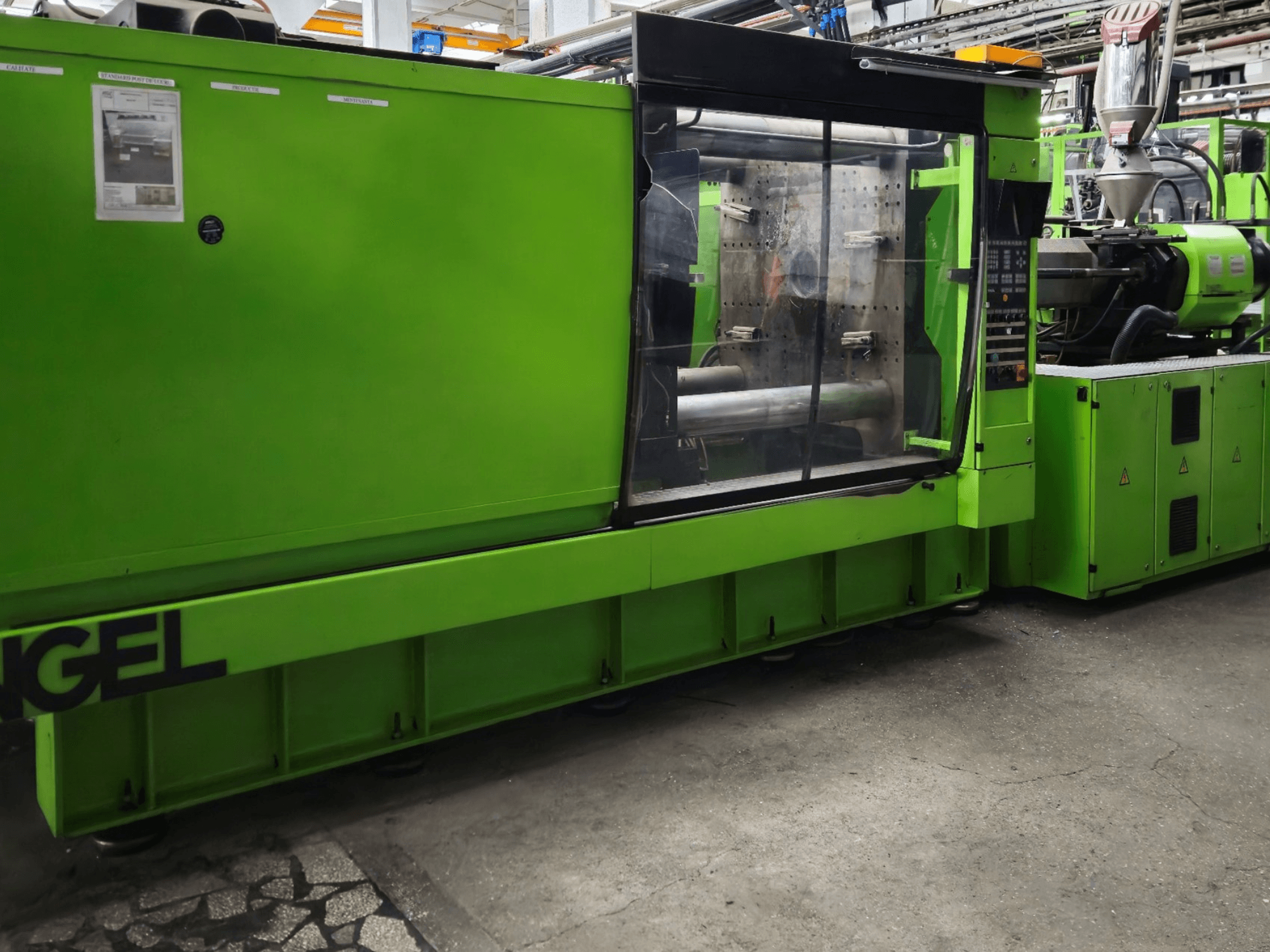

This Engel Duo 3550/550 Tech was manufactured in 1998. It features a clamping force of 5500 kN, a maximum injection volume of 1960 cm³, and a screw diameter of 80 mm. The machine dimensions are 8840 x 2520 x 2230 mm, and it weighs 20,000 kg. If you are looking to get high-quality injection moulding capabilities, consider the Engel Duo 3550/550 Tech machine we have for sale. Contact us for more information.
Overview
- brand: Engel
- year: 1998
- MODEL: Duo 3550/550 Tech
- production hours: 29598
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel Duo 3550/550 Tech
Dimensions
- Machine Height: 2230 mm
- Machine Length: 8840 mm
- Machine Weight: 20000 kg
Technical Specification
- Clamping Force: 5500 kN
- Screw Diameter: 80 mm
Additional Information
Maximum injection volume: 1,960 cm³
Minimum mould height: 310 mm
Maximum mould height: 800 mm
Platen opening stroke: 850 mm
Platen dimensions (W x L): 1,345 x 1,280 mm
Tie-bar distance (H x V): 915 x 860 mm
Motor power: 55 kW
Heater power: 47.5 kW
Injection nozzle radius (at tip): R35
Centering ring diameter: 200 mm
Number of cores: 0
Number of heating zones: 0
Operating hours: 29,598 h
Condition: Excellent
Additional equipment
Robot: Not equipped
Robot interface: None
Other accessories: None reported
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
