- ➤ Used Engel VICTORY 1350/260 tech | Injection Moulding

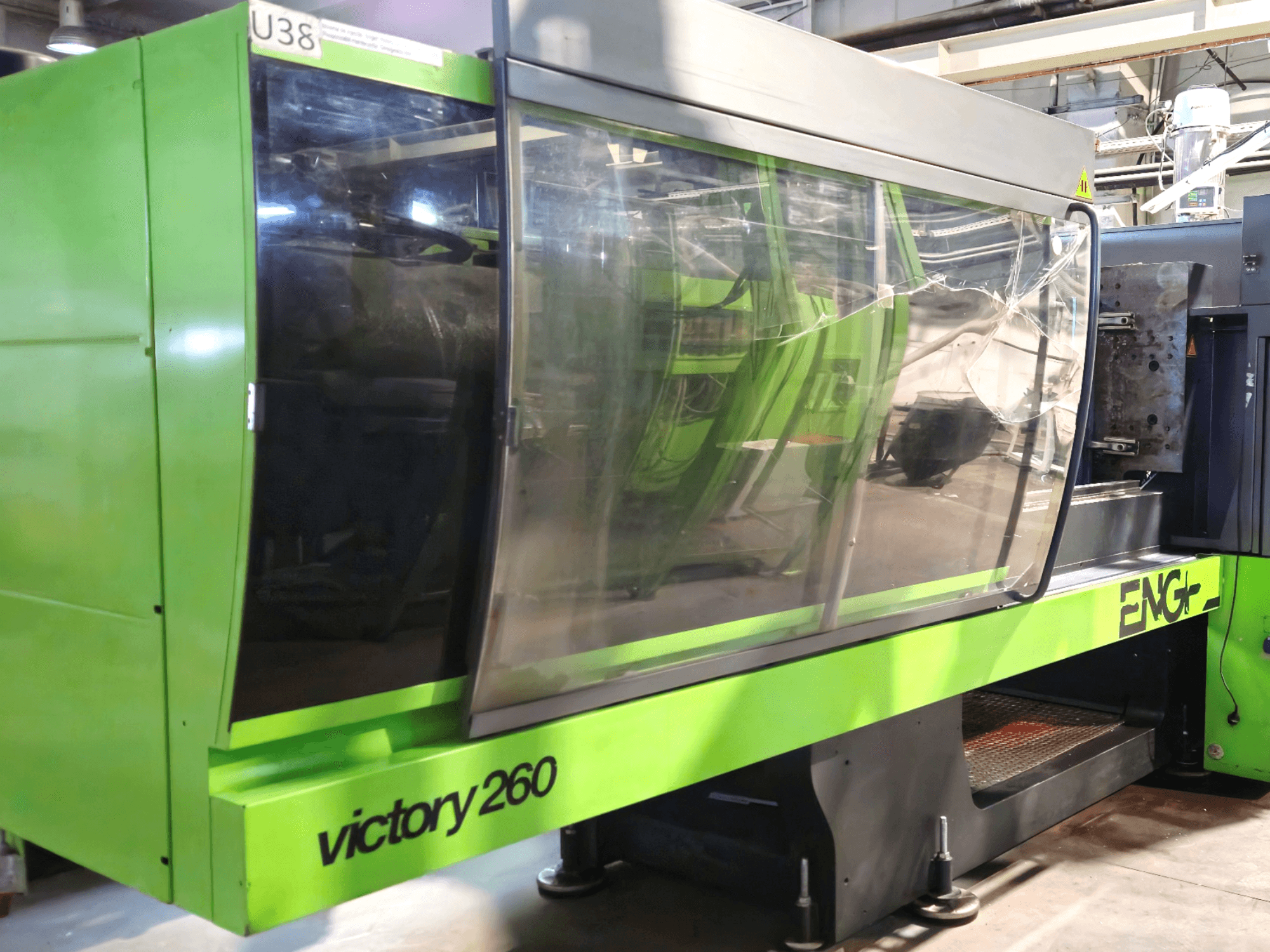

This Engel VICTORY 1350/260 tech was manufactured in 2012. It features a clamping force of 260 tons, a maximum injection volume of 735 cm³, and a screw diameter of 60 mm. The machine dimensions are 5,861 × 1,923 × 2,300 mm, and it weighs 19,400 kg. Currently in production with excellent condition and 73,164 operating hours. Contact us for more information about this machine.
Overview
- brand: Engel
- year: 2012
- MODEL: VICTORY 1350/260 tech
- production hours: 73164
- application type: Injection Moulding
- Location: Romania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Engel VICTORY 1350/260 tech
Dimensions
- Machine Height: 2300 mm
- Machine Length: 5861 mm
- Machine Weight: 19400 kg
Technical Specification
- Clamping Force: 2600 kN
- Screw Diameter: 60 mm
Additional Information
Condition: Excellent
Status: In production
Operating hours: 73,164 h
Maximum injection volume: 735 cm³
Minimum mould height: 393 mm
Maximum mould height: 1,300 mm
Platen opening stroke: 907 mm
Platen dimensions (W × L): 1,100 × 1,100 mm
Tie-bar distance: Not applicable (tie-bar-less design)
Injection nozzle radius (tip): R35
Centering ring diameter: 160 mm
Number of cores: 0
Number of heating zones: 0
Motor power: 54 kW
Heater power: 21.35 kW
Electrical connection pins: 32
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
