Engel - Victory 200/90 tech + Viper 6 RC300DE-INJ-ENG-2015-00007

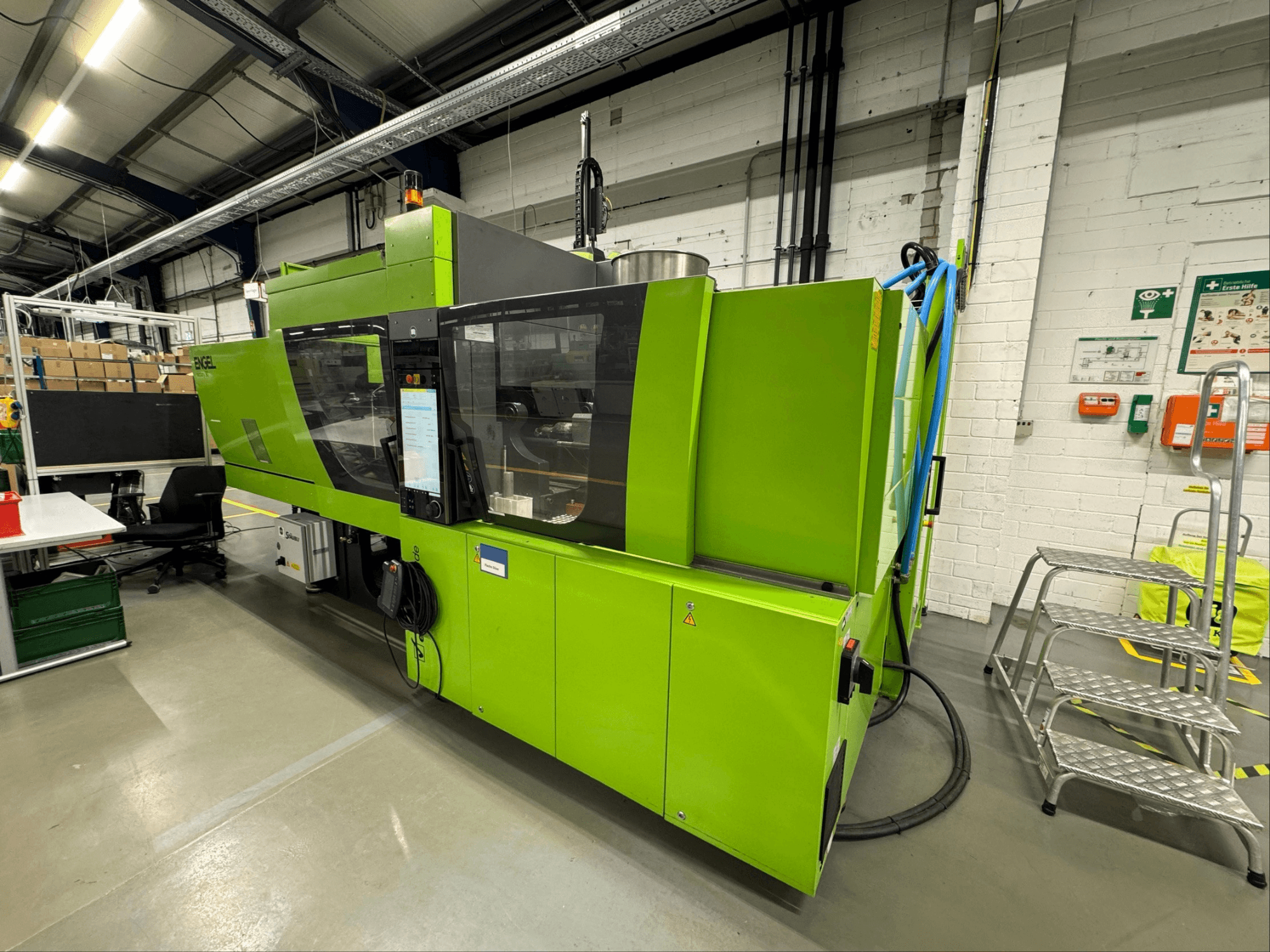

ENGEL Victory 200/90 tech

- Clamping Force: 90 tonnes

- Injection Unit Size: 200

- Total Operating Hours (Machine): 15,903 h

- Operating Hours in Automatic (Robot): 12,086 h

- Clamping Platen Execution: Tie-bar-less standard platen according to EUROMAP

- Centring Diameter: 125 mm EUROMAP

- Magnetic Clamping System: Stäubli magnetic clamping plate

- Ejector System: Central ejector with ejector safety interface

- Heating System: 230 V ceramic cylinder heating bands

ENGEL Viper 6 RC300

- Maximum Manipulation Weight (Payload): 5 kg

- Robot Axis Strokes:

X-Stroke: 400 mm

Y-Stroke (Single): 1,000 mm

Z-Stroke: 2,360 mm

C-Axis: Compact pneumatic rotary axis, 0–90° pivot, torque 6 Nm

- Minimum Deposit Height: 1450 mm (center of unswiveled C-axis, without gripper head and part)

- Max. Vertical Part / Gripper Head Size (TV): 200 mm

- Maximum Total System Height: 4100 mm (handling and machine incl. machine shoes)

- Part Deposit Side: Machine rear side

- Entry Movement: Vertical
