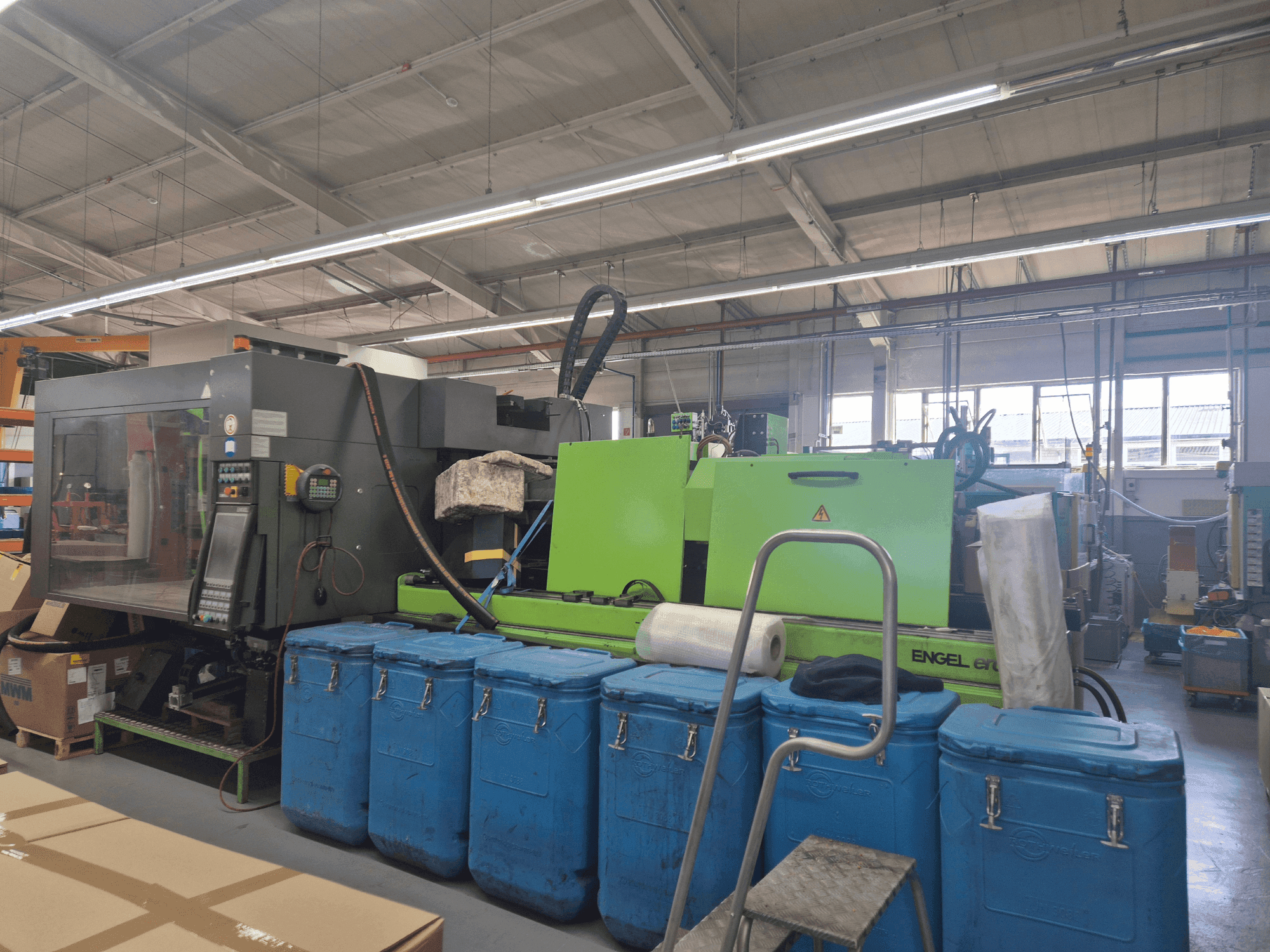

Engel - Victory 2050H500V/300 CombiDE-INJ-ENG-2008-00004

Additional Equipment

• - ERC 33/2-F (Year: 2008)
• - Only 1K, second unit was dismantled and scrapped by Engel
• - Machine is tie-bar-less
• - Handling was dismantled after the last production run and should be reassembled and commissioned by Engel or an expert
• - When the clamping cylinder is fully retracted, the mold area between the two clamping platens is approx. 1,400 mm
• - Dimensions of the measuring surface: a: 4.35 m b: 2.00 m c: 3.28 m / Dimensions of the right-hand cover parallelepiped: Length: 6.70 m Width: 2.00 m Height: 2.28 m Measuring distance: 1.00 m
• - Oil temperature: 40,00 °C /Injection pressure: 21.00 bar/Holding pressure: 86.00 bar/Screw stroke: 130.00 mm/Opening stroke: 497.00 mm/V1, V2, V3: 100.00 %/Ejector P: - bar/Cooling time: 10.00 s/Cycle time: 24.82 s/Shot weight: 264.64 g/Material: HDPE/Injection mould Fa. / Injection mould: 0,00/Drive power: 37 KW

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Cylinder diameter: 70/40
  • - Injection weight (max): 900 g
  • - Clamping unit /opening stroke: 907 mm /ejector stroke: 200 mm/ ejector force: 90 kn/ pump drive power: 55 kw

Extra information

• - Machine still under power// Injection unit 1 (Injection unit 1) Screw diameter (screw diameter): 60 mm: Max. Stroke volume: 848 cm³ Max. Screw speed: 254 r/min Injection flow rate: 300 cm³/s Specific injection pressure: 2017 bar Nozzle stroke: 600 mm Nozzle contact pressure: 110 kN 70 mm: Max. Stroke volume: 1155 cm³ Max. Screw speed: 254 r/min Injection flow rate: 408 cm³/s Specific injection pressure: 1482 bar 80 mm (variant 1 & 2): Max. Stroke volume: 1508 cm³ Max. Screw speed: 170 r/min Injection rate: 533 cm³/s Specific injection pressure: 1135 bar Injection Unit 2 (Injection Unit 2) Screw diameter (screw diameter): 35 mm: Max. Stroke volume: 192 cm³ Max. Screw speed: 400 r/min Injection flow: 151 cm³/s Specific injection pressure: 1703 bar Nozzle stroke: 300 mm Nozzle contact pressure: 35.1 kN 40 mm: Max. Stroke volume: 251 cm³ Max. Screw speed: 400 r/min Injection flow: 197 cm³/s Specific injection pressure: 1297 bar 45 mm (variant 1 & 2): Max. Stroke volume: 318 cm³ Max. Screw speed: 320 r/min Injection flow: 250 cm³/s Specific injection pressure: 1030 bar
