➤ Used EPSON LS3-401S - Robot Arm For Sale | gindumac.com

Show in original language

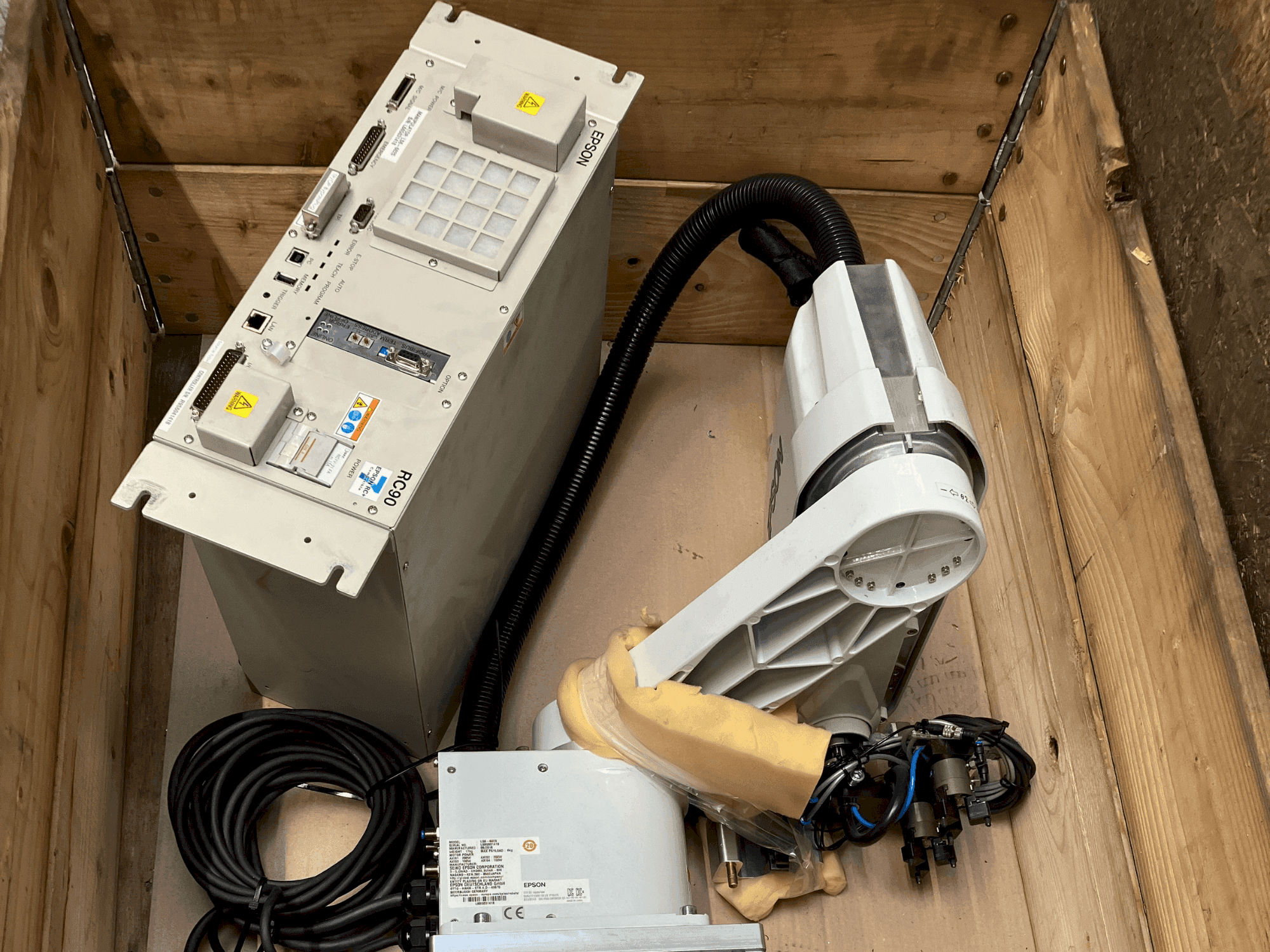

This 4-axis EPSON LS3-401S robot arm was manufactured in 2018. It features a maximum operating speed of 6000 mm/s for joints #1 and #2, and a payload capacity up to 3 kg. Ideal for tasks requiring high speed and precision, it operates efficiently with a standard cycle time of 0.42 seconds. Consider the opportunity to buy this EPSON LS3-401S robot arm. Contact us for more information about this machine.

Overview

brand: EPSON
year: 2018
MODEL: LS3-401S
application type: Robotics
Location: Germany
machine type: Robot Arm

Technical Information - EPSON LS3-401S

Dimensions

Machine Weight: 14 kg

Movement

Number of Axes: 4

Additional Information

Machine Benefits

Technical Machine Benefits

Mounting type: tabletop
Arm length: 400 mm (arm #1, #2)
Controller: rc90 safety
Standards: ce, ansi/ria15. 06-2012
Payload: rated: 1 kg
Payload: maximum: 3 kg
Standard cycle time: 0. 42 sec
Joint #4 inertia: rated: 0. 005 kg·m²
Maximum: 0. 05 kg·m²

Extra Information

Movement Max. Operating Speed: Joints #1, #2: 6000 mm/s Joint #3: 1100 mm/s Joint #4: 2600°/s Repeatability: Joints #1, #2: ±0.01 mm Joint #3: ±0.01 mm Joint #4: ±0.01° Max. Motion Range: Joint #1: ±132° Joint #2: ±141° Joint #3 (Std): 150 mm Joint #3 (Clean): 120 mm Joint #4: ±360° Motor Power Consumption: Joint #1: 200 W Joint #2: 100 W Joint #3: 100 W Joint #4: 100 W Joint #3 Downward Force: 100 N Electric Lines: 15Pin (D-Sub) Pneumatic Lines: Φ4 mm × 1, Φ5 mm × 2 Installation Environment: Standard/Cleanroom

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
