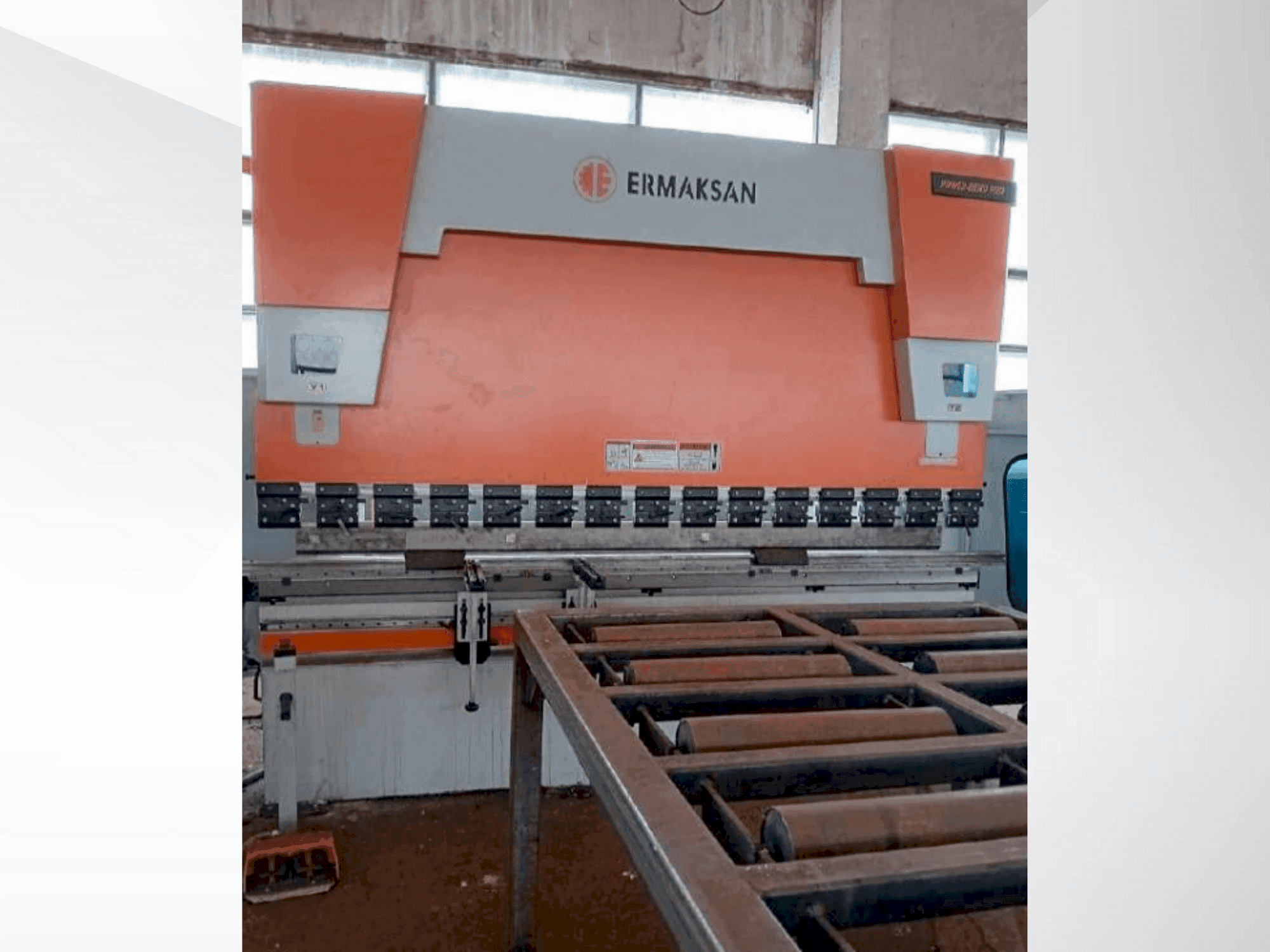

Front view of ERMAKSAN POWER BEND PRO 3100-175  machine

ERMAKSAN - POWER BEND PRO 3100-175LT-BEN-ERM-2018-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This ERMAKSAN POWER BEND PRO 3100-175 Bending machines machine was manufactured in 2018 in Turkey. The machine has a Cybelec cybtouch 12 PS 2D control panel with touch screen. It is equiped with a high-quality hydraulics HOERBIGER and a hydraulic cylinders are made of high-strength hardened steel and chrome plated, which guarantees their durability and longevity.

Overview

  • brand: ERMAKSAN
  • year: 2018
  • MODEL: POWER BEND PRO 3100-175
  • application type: Bending
  • Location: Lithuania
  • machine type: Press Brake
  • availability: Sold
  • control unit brand: CYBELEC

Technical Information - ERMAKSAN POWER BEND PRO 3100-175

General Data

  • Measurements width: 2150 mm
  • Measurements depth: 4250 mm
  • Measurements height: 2800 mm
  • Machine weight: 9450 kg

Control Unit

  • Model: Cybtouch 12 PS 2D
  • Brand: CYBELEC

Main drive

  • Bending length: 3100 mm
  • Main motor power: 15 kW

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Givi or heidenhain bending beam positioning rulers +- 0. 0025 mm
      • - Precision x-axis rear mounts: +- 0. 05 mm // x axis 800 mm // x asies speed 500 mm/sec // r axis 350 mm/sek
      • - 2 rear supports for positioning sheets // 2 front sheet supports moving along guides
      • - System for quick fixation of bending knives // rear light barrier
      • - Distance between column 2600 mm // depth 410 mm - height 900 mm
      • - Engine power 15 kw
      • - Leuze front light barrier, necessary for rapid movement of the press
      • - Matrix 4b; b-16-22-35-50, along the entire length
      • - Bending knife: ps. 135. 85. R08, along the entire length
      • - Matrix 4v; v16-22-35-50 // bbending power 175 tlade: rolleri ps. 135. 85. R08 + extra blade and matrix
    • Qualitative Machine Benefits:
      • - Cybelec cybtouch 12 ps 2d control panel with touch screen
      • - High-quality hydraulics hoerbiger
      • - Hydraulic cylinders are made of high-strength hardened steel and chrome plated, which guarantees their durability
      • - Siemens electrical components
      • - Automatic compensation table (lower table lifting)
      • - Mechanical height adjustment of the rear support along the r axis
      • - Bending power 175 t // bending length 3100 mm
      • - Oil reservoir capacity 200l

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
