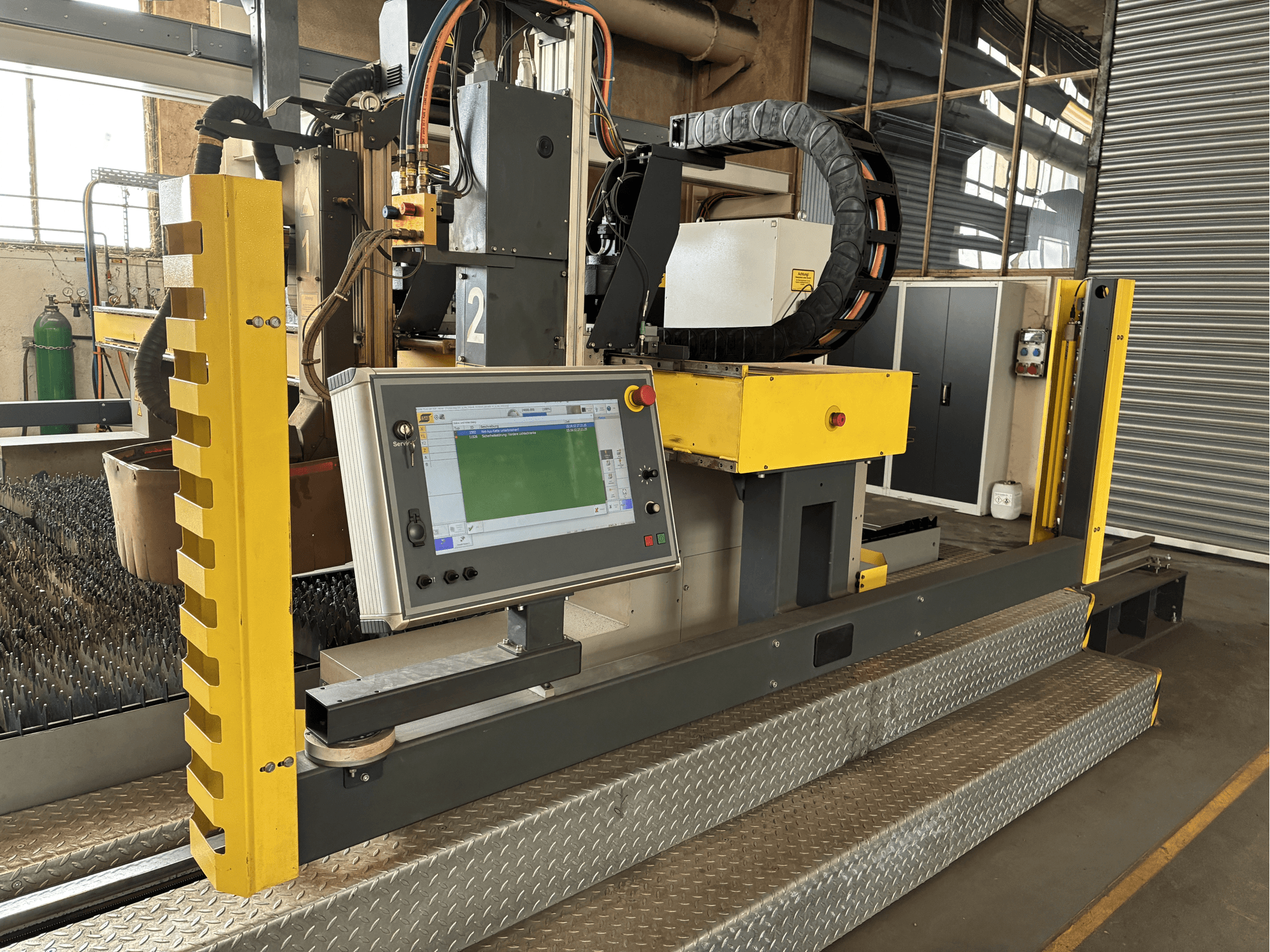

This ESAB Suprarex HD 4000 plasma cutting machine was manufactured in 2021. It features a track width of 4000 mm and a track length of 12000 mm, supporting a maximum working length of 9000 mm. The machine is equipped for both oxyfuel and plasma cutting, handling material thicknesses up to 200 mm. If you are looking to get high-quality cutting capabilities, consider the ESAB Suprarex HD 4000 machine we have for sale. Contact us for more information.
Overview
- brand: ESAB
- year: 2021
- MODEL: Suprarex HD 4000
- application type: Cutting
- Location: Germany
- machine type: Plasma Cutting Machine
Additional Information
Track width: 4000 mm
Track length: 12000 mm
Workpiece support height: 700 mm
Working area
Total working width: max. 2500 mm
Plasma phase working width: max. 2500 mm
Oxyfuel vertical working width: max. 2750 mm
Maximum working length: 9000 mm
Plate size capacity
Plate width: max. 2500 mm
Plate length: max. 9000 mm
Standard cutting table
Table width: 3100 mm
Table length: 9270 mm
Tool stations
Number of tools on the machine: 2
Number of cross drives: 2
Cutting processes
Oxyfuel cutting (vertical)
Number of oxyfuel single torches: 1
Cutting range: 3–200 mm material thickness
Plasma cutting (bevel & vertical)
Bevel station: 1x DMX beveler
Cutting range (vertical): 6–40 mm (blue steel)
45° bevel range: 6–40 mm (blue steel)
Minimum plate thickness for Y-cut: 10 mm
Minimum plate thickness for K-cut: 20 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
