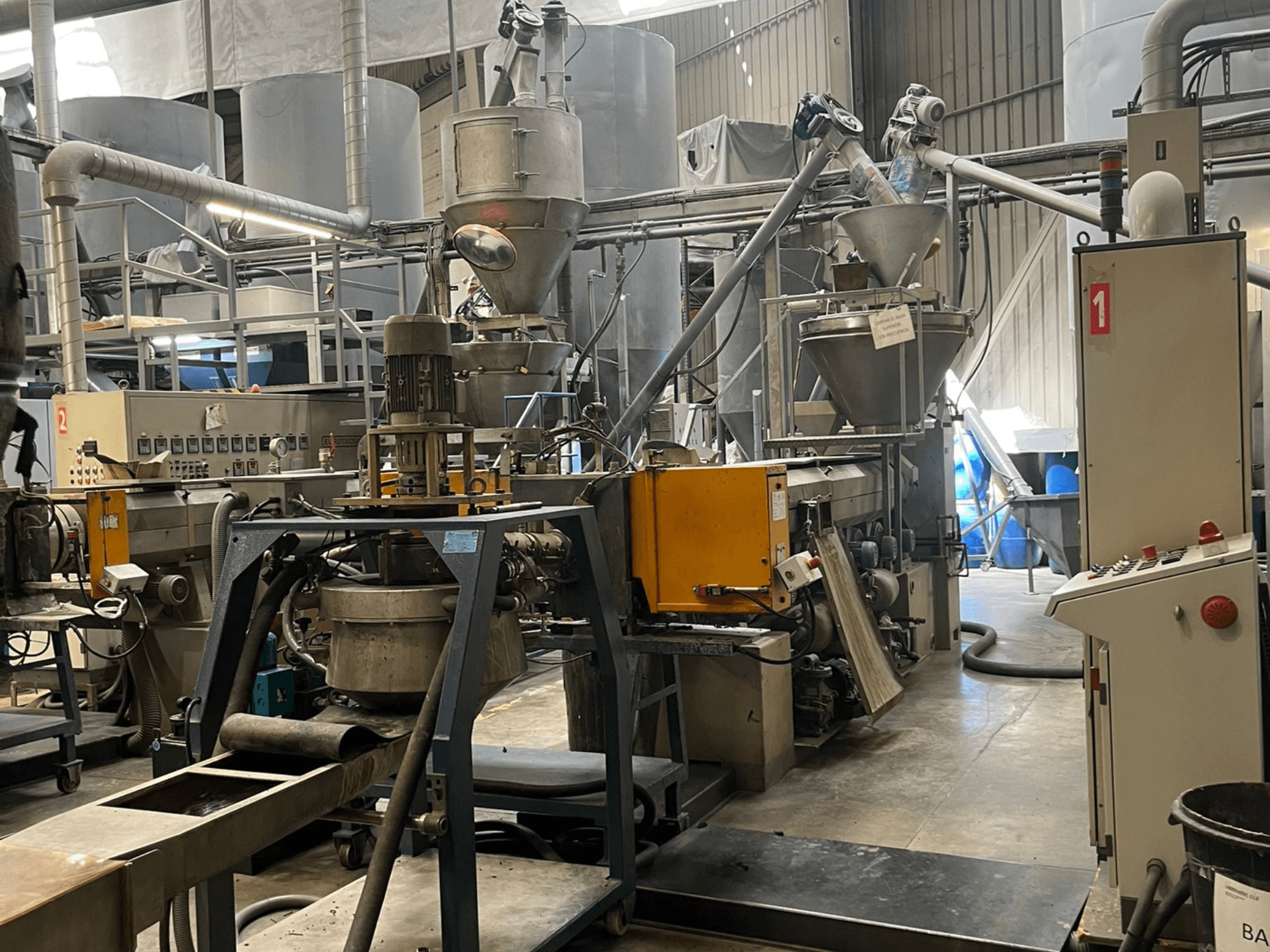

Single screw extruder manufactured in 2004. This EUROTECNO E12535D features a screw diameter of 125 mm and an L/D ratio of 35:1, with an output capacity of approximately 350 – 550 kg/h. It includes a high-efficiency heating system with 6 to 8 independent zones and a double vacuum degassing system. If you are looking to get high-quality extrusion capabilities, consider the EUROTECNO E12535D machine we have for sale. Contact us for further details.
Overview
- brand: EUROTECNO
- year: 2004
- MODEL: E12535D
- application type: Extrusion
- Location: Spain
- machine type: Single Screw Extruder
Technical Information - EUROTECNO E12535D
Technical Specification
- Screw Diameter: 125 mm
Additional Information
Screw type: Single screw
L/D ratio: 35:1 (35D)
Number of screws/mechanical shafts: 1
Output capacity: Approx. 350–550 kg/h (material dependent)
Main motor: AC electric with inverter drive (VFD), 110–160 kW (standard for Ø125 mm)
Screw speed: Electronically adjustable, approx. 0–120 RPM
Transmission: Heavy-duty, oil-cooled gearbox
Barrel heating zones: 6–8 independent zones
Heater type: High-efficiency ceramic band heaters
Barrel cooling: Forced-air cooling fans per zone
Degassing/venting: Double vacuum degassing system with liquid ring pump
Additional equipment
Feeding system: Force feeder / crammer hopper for film flakes and shredded regrind
Screen changer: Continuous hydraulic dual-plate screen changer
Pelletizing: Hot die-face water-ring pelletizer
Cooling & dewatering: Horizontal centrifugal dryer and vibrating classifier screen
Conveying & storage: Pneumatic blower to cyclone and bagging silo
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
