Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
FAMUP - COBO 3000IT-MIL-FAM-2001-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- FAMUP COBO 3000 Milling Machine

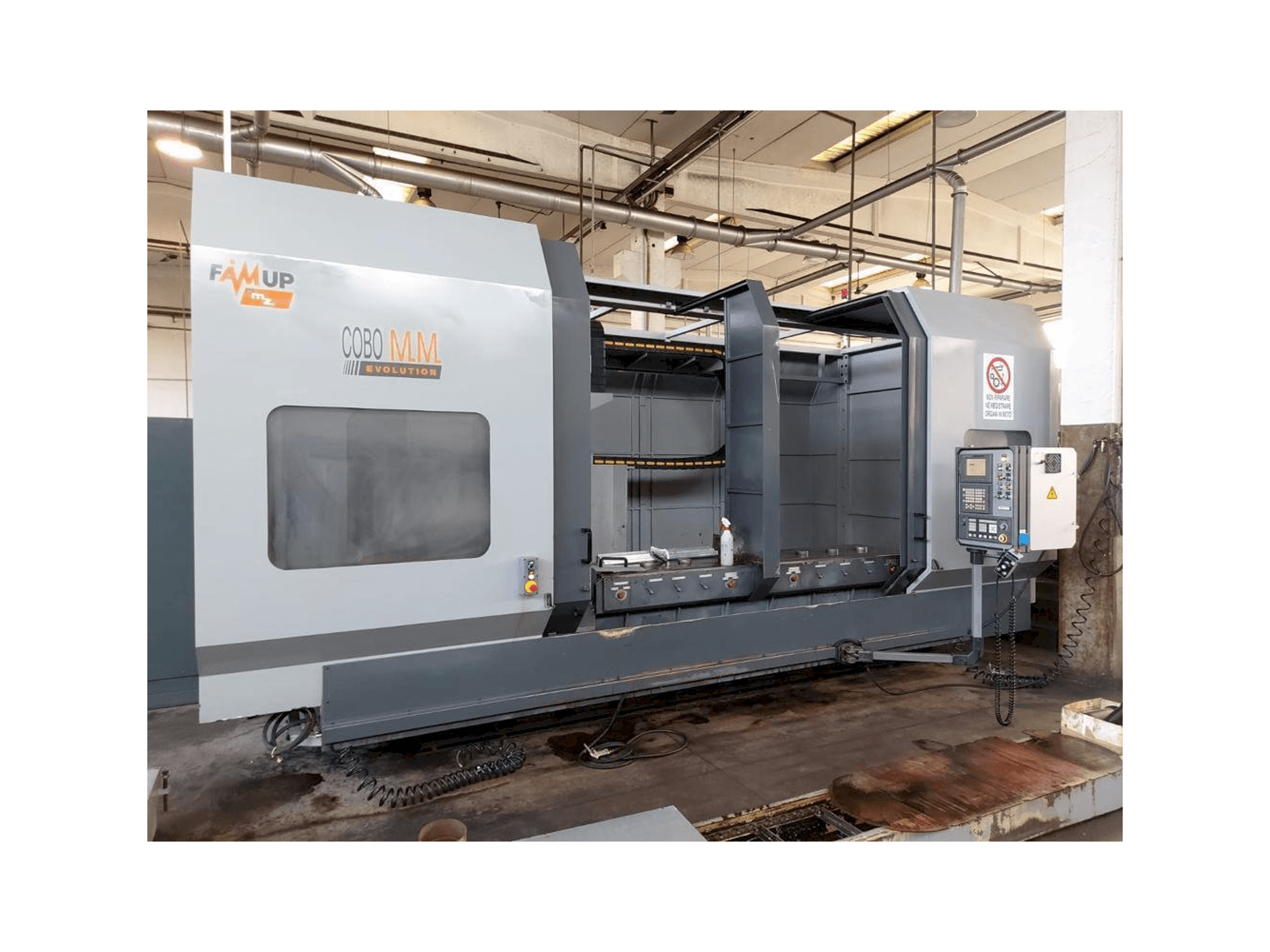

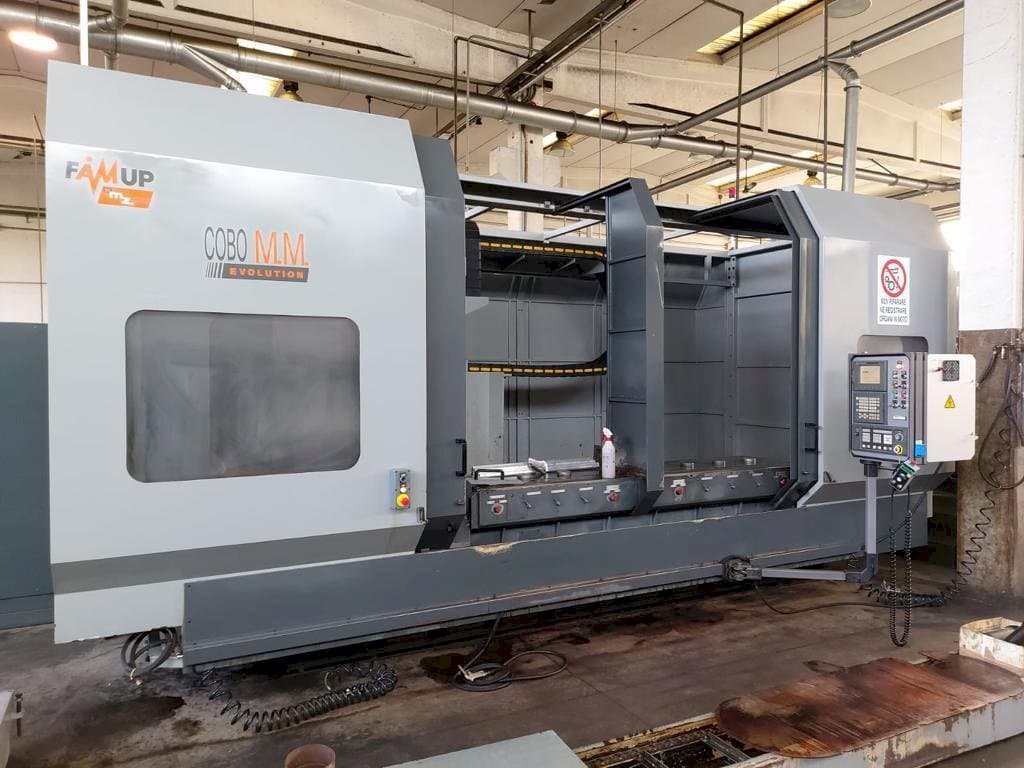

This FAMUP COBO 3000 Milling Machine was manufactured in the year 2001. Operated through a FANUC 21Im control unit. This machine can work with a spindle speed up to 8000 rpm and has a chip conveyor with belt. This machine has 4 axis.
Overview
- brand: FAMUP
- year: 2001
- MODEL: COBO 3000
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - FAMUP COBO 3000
Control Unit
- Model: 21Im
- Brand: FANUC
Main drive
- Spindle speed range: 8000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 600 mm
- Z-AXIS Movement: 550 mm
Additional Equipment
- - 4th AXIS IN CONTINUOUS DIAMETER 320 MM
- - SPINDLE TYPE ISO 40
- - TOOL MAGAZINE WITH 30 POSITIONS
- - HIGH PRESSURE THROUGH THE SPINDLE
- - CHIP CONVEYOR WITH BELT
- - PNEUMATIC PREPARATION ON BOTH TABLES
- - BULKHEAD FOR PENDULAR WORKING
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
