FAMUP - MCX 450IT-MIL-FAM-1998-00001

Name: FAMUP MCX 450
Brand: FAMUP
SKU: IT-MIL-FAM-1998-00001
Price: 16000 EUR
Availability: InStock

16,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used FAMUP MCX 450 For Sale | gindumac.com

Show in original language

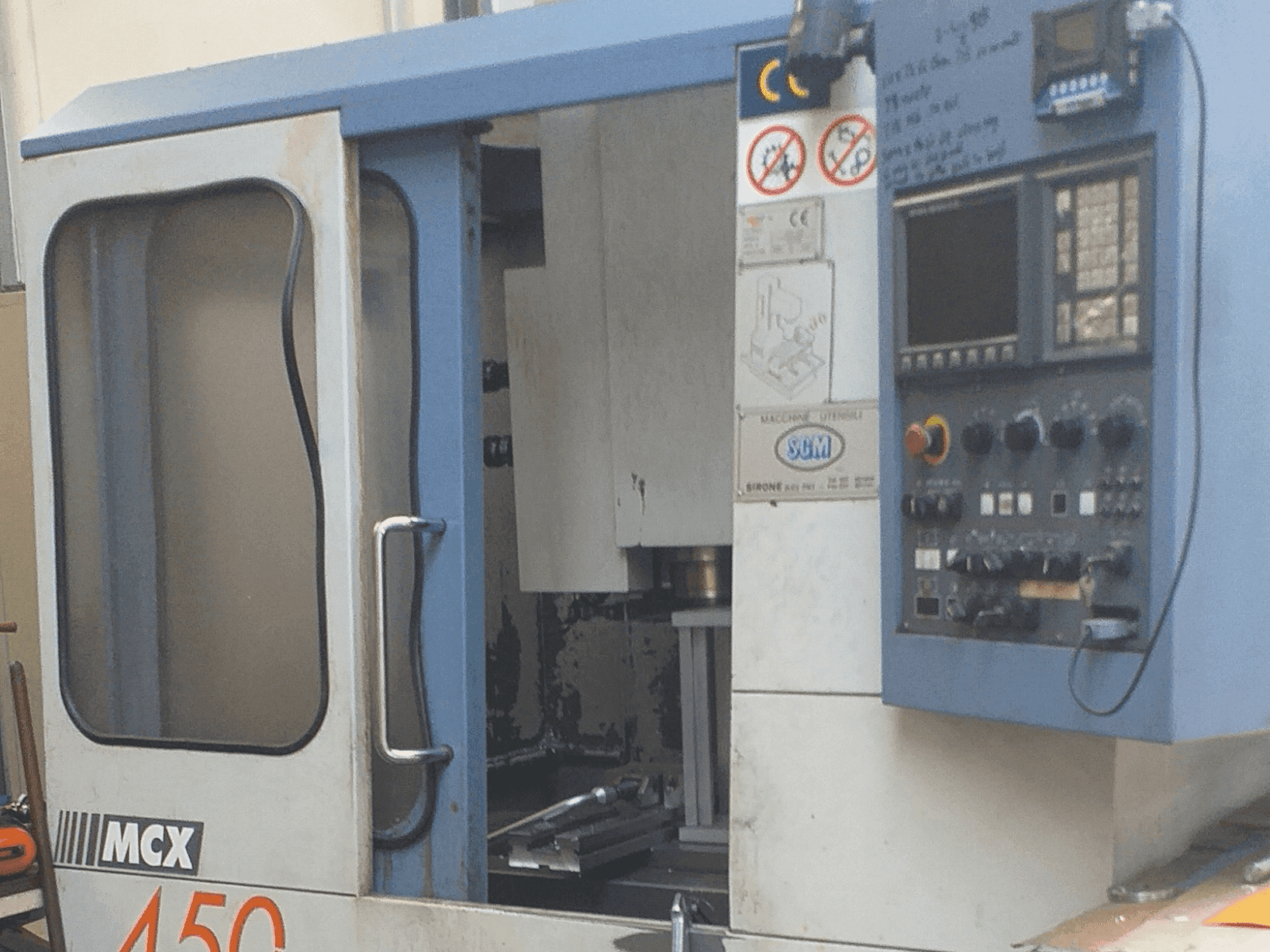

This FAMUP MCX 450 was manufactured in 1998. It features a robust 400 volts power supply, a 50 Hz frequency, and a basic machine mass of 2500 kg. The machine offers a working surface of 600 x 300 mm and a maximum permissible table load of 150 kg. The spindle supports a maximum rotation speed of 8000 rpm with an ISO 40 taper. Contact us for more information about this machine.

Overview

brand: FAMUP
year: 1998
MODEL: MCX 450
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - FAMUP MCX 450

General Data

Machine weight: 2500 kg

Main drive

Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 300 mm
Z-AXIS Movement: 400 mm

Table

Table load: 150 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power supply: 400 volts, 50 hz
- - Min-max table spindle distance: 110-510 mm
- - Working surface: 600 x 300 mm
- - Table-floor distance: 815 mm
- - Spindle cartridge: din 69871 iso 40 taper
- - Noise level: 71. 5 db(a)
- - T-slot center distance: 100 mm
- - T-slot width: 14 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
