➤ Used FANUC RoboCut alpha C600iA For Sale | gindumac.com

Show in original language

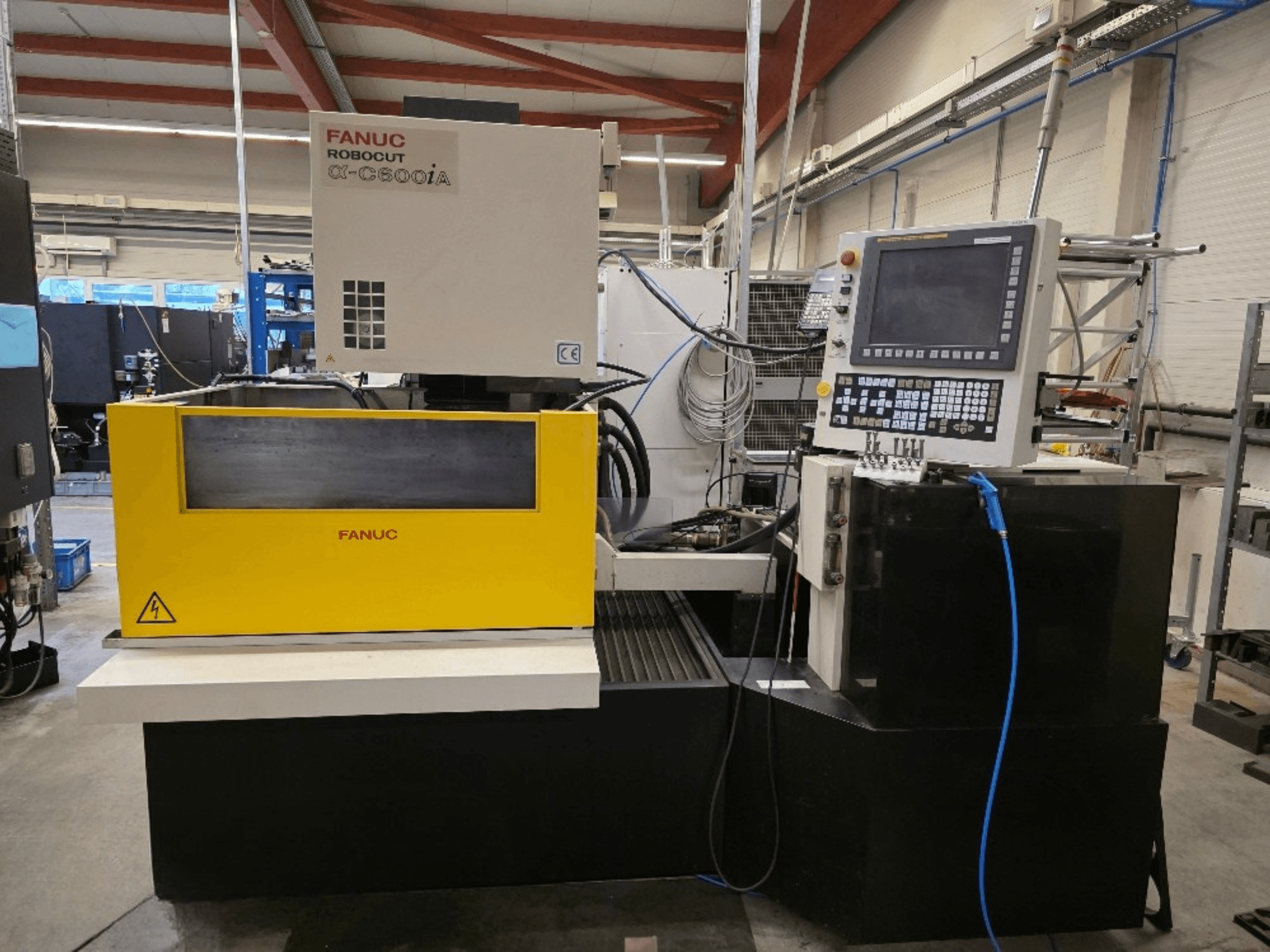

This 5-axis FANUC RoboCut alpha C600iA was manufactured in 2015, featuring X/Y axis travel of 600 mm × 400 mm and a Z-axis option up to 410 mm. It supports a maximum workpiece weight of 1000 kg and utilizes a FANUC Series 31i-W MODEL B CNC for precise control. Equipped with AI technology for enhanced accuracy and automatic wire threading, it's ideal for detailed machining tasks. Consider the opportunity to buy this FANUC RoboCut alpha C600iA wire edm machine. Contact us for more information.

Overview

brand: FANUC
year: 2015
MODEL: RoboCut alpha C600iA
application type: EDM
Location: Hungary
machine type: Wire EDM Machine
Available from: 05/12/2025
control unit brand: FANUC

Technical Information - FANUC RoboCut alpha C600iA

Control Unit

Control Brand: FANUC
Control Model: RoboCut α-C600iA

Dimensions

Machine Weight: 3000 kg

Movement

Number of Axes: 5
X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 310 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Axis travels: X/Y 600 × 400 mm; Z 310 mm (optional 410 mm); U/V ±100 × ±100 mm
Max workpiece size: 1050 × 800 × 310 mm (standard)
Max workpiece weight: 1000 kg
Max taper angle: ±30° at 150 mm (optional ±45° at 70 mm)
Positioning/minimum step size: 0.0001 mm
Achievable surface roughness: up to Ra 0.3 µm
Automatic wire threading (AWF): approx. 10 s under water; rethreading inside submerged cuts
AI Corner Control: optimizes cutting speed and flushing in sharp corners
ECO Mode: energy and wire consumption reduction functions
Applications/materials: steel, aluminum, titanium, nickel alloys; mold & die, aerospace, medical, precision parts

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
