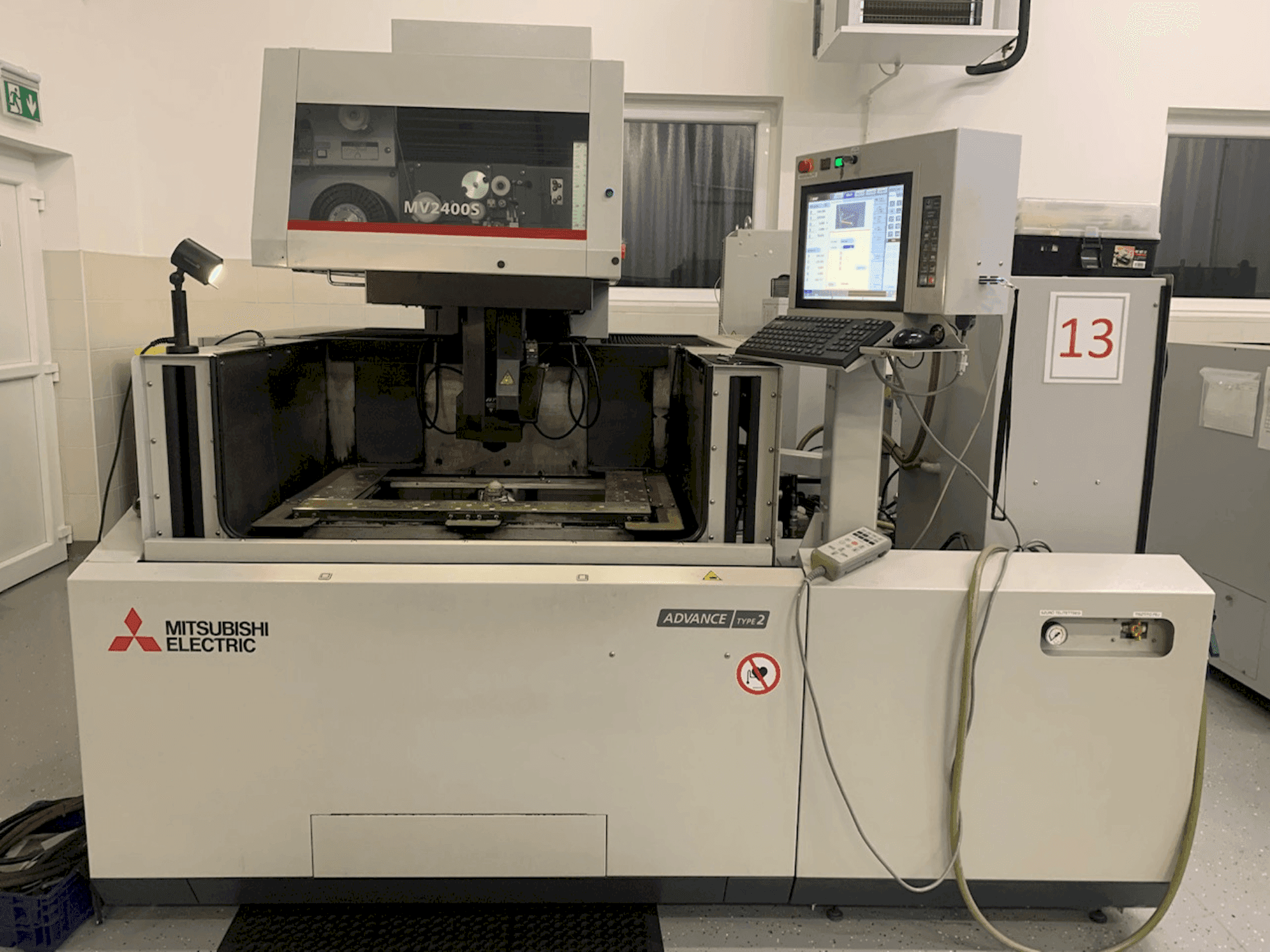

Mitsubishi - MV2400SHU-EDM-MIT-2015-00001

Additional Equipment

• - Cooling/Temperature Control: Cooling system with temperature regulation
• - Generator: Transistor pulse generator
• - Output Current: 50 A
• - Generator Size: 600 x 650 x 1765 mm
• - Generator Size: 600 x 650 x 1765 mm

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum machining angles / height: 15° / 260 mm
  • - Maximum workpiece size: 1050 x 820 x 305 mm
  • - U-shaped table dimensions (w x d): 840 x 560 mm
  • - M8 mounting holes: 52
  • - Wire diameter: 0. 1 – 0. 3 mm
  • - Wire coil weight: 10 kg
  • - Automatic wire threading and wire cutting: included
  • - Tank capacity: 860 liters
  • - Filter rating: 3 µm
  • - Filter system: dual system // filter system weight: 350 kg

Extra information

• - Controller Inputs: Keyboard, USB, Memory Stick, Ethernet Display: 15" TFT Touchscreen Positioning Accuracy: 0.1 µm Minimum Incremental Movement: 0.05 µm Maximum Programmable Size: ± 99999999 mm Software: ADVANCE Plus with 3D CAD/CAM, 10 GB Memory, and Clear/Intuitive Layout Remote Communication Ready: mcAnywhere Graphical Views: 3D, Front, Side, Top Machine Benefits ODS Optical Drive System Tubular Direct Drives on X, Y Axes Linear Scales on X, Y Axes Intelligent Automatic Wire Threading System Dry and Underwater Operation Capable Wire Straightening System Automatic Hole Detection 3D CAD/CAM Control System 5 Controlled Axes + Prepared for Additional Axes Precise Finish Circuit (PFC) Machining Long Life System (LLS) Design U-Shaped Hardened Segmented Clamping Table Compressed Dielectric (Water) Cooling System Remote Communication Ready (mcAnywhere) CE Version 30°/45° Wire Cutting Capability E.KO Ionizer 1501
