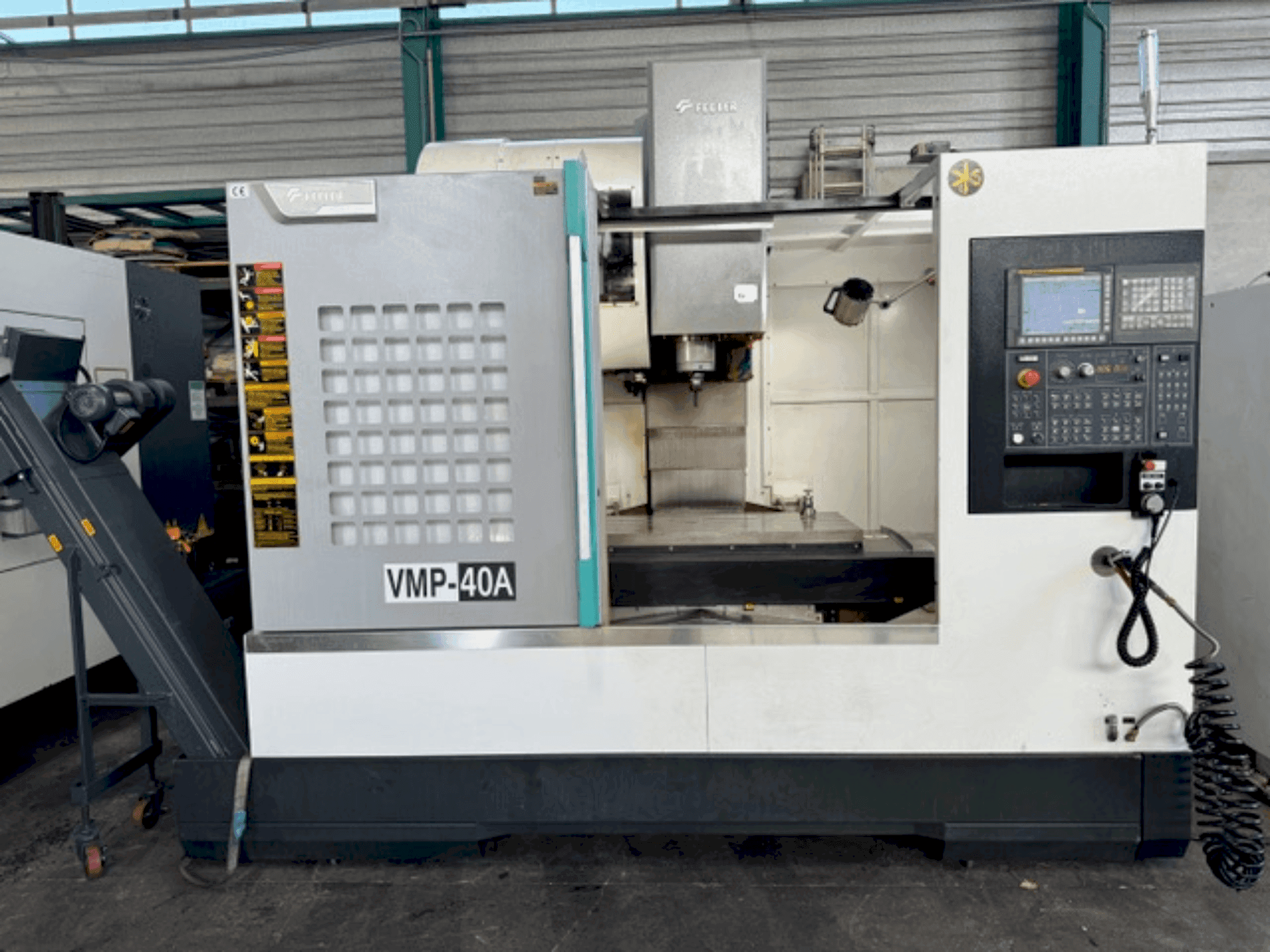

Front view of Feeler VMP40A  machine

Feeler VMP40A

Feeler - VMP40A

2019

70,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis FEELER VMP 40A vertical machining center was manufactured in 2019. Equipped with a FANUC OiMF control, it features a spindle speed of 10000 rpm and spindle motor power of 15 kW. Table dimensions are 1150x520 mm, and it includes a 30-station tool magazine. Additional features include a chip conveyor and electrical cabinet air conditioning. Consider this FEELER VMP 40A for precision machining capabilities. Contact us for further details.

Overview

  • brand: Feeler
  • year: 2019
  • MODEL: VMP40A
  • production hours: 7500
  • application type: Milling
  • Location: France
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: FR-MIL-FEE-2019-00001

Technical Information

General Data

  • Measurements width: 2140 MM
  • Measurements depth: 3500 MM
  • Measurements height: 2800 MM
  • Machine weight: 6300 KG

Control Unit

  • Brand: FANUC
  • Model: OiMF

Main drive

  • Number of spindles: 1
  • Spindle speed range: 10000 1/MIN
  • Spindle motor power: 15 kw
  • Tool taper: ISO 40

Movement

  • X-AXIS Movement: 1050 mm
  • Y-AXIS Movement: 520 mm
  • Z-AXIS Movement: 505 mm

Table

  • Outer length: 1150 MM
  • Outer width: 520 MM
  • Min distance between vertical spindle and table: 80 mm
  • Max distance between vertical spindle and table: 585 mm

Tools

  • Slots in storage: 30

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - High-speed machining, advanced cooling, and precision sensing.
      • - Tool and part sensors hexagon infra-red transmission
      • - High-pressure spindle-center spraying 30 bars
      • - Shower cabin watering
      • - Spindle cooler
      • - Electrical cabinet air conditioning
    • Qualitative Machine Benefits:
      • - Excellent condition, fully documented, and visible under power for inspection.

    Extra information

    • - Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
