FEHLMANN - Picomax 55 CNCDE-MIL-FEH-1998-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Machine Tools
- Fehlmann Picomax 55 CNC Milling machine

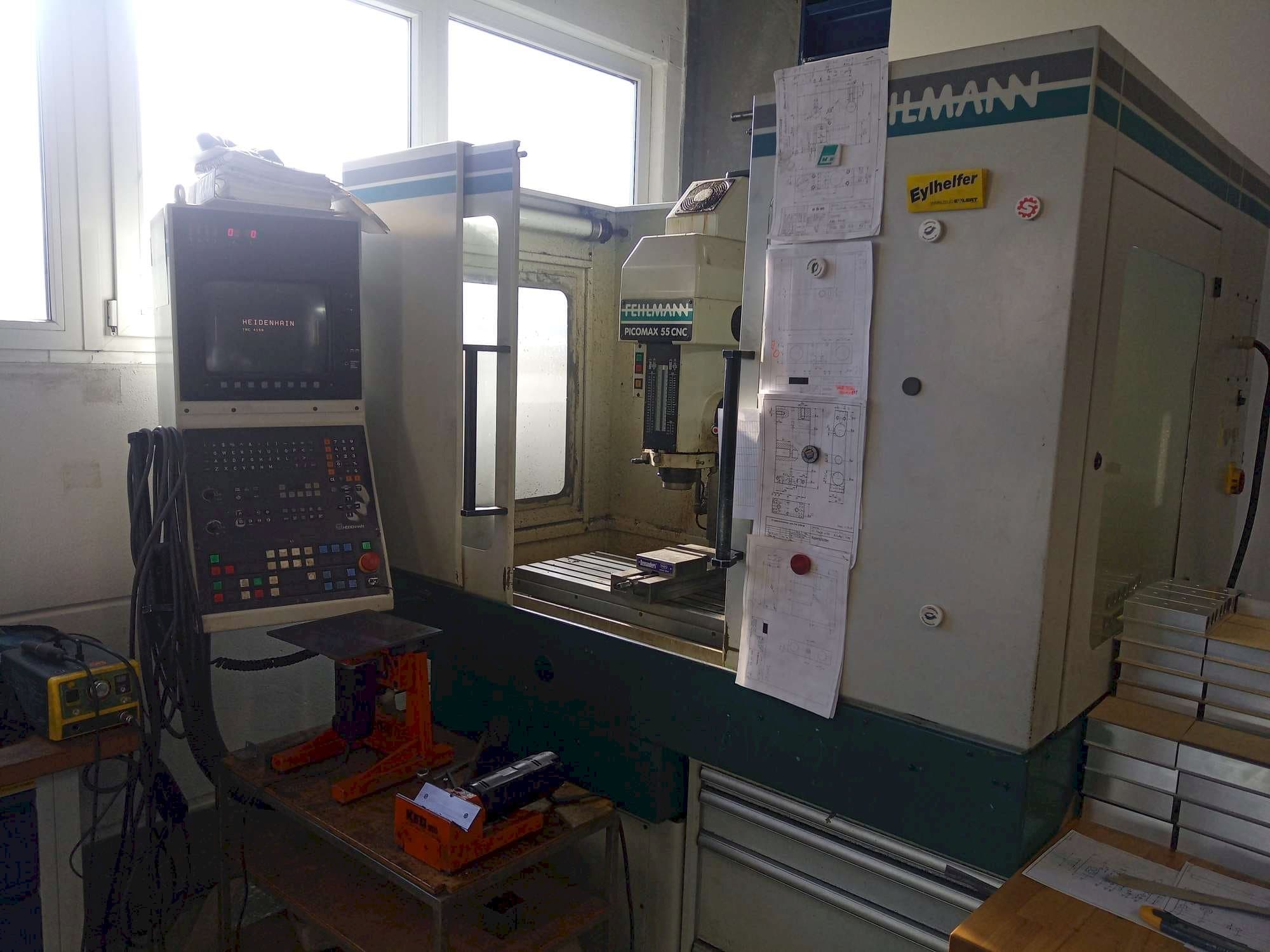

This Fehlmann Picomax 55 CNC Milling machine was manufactured in the year 1998 in Switzerland. It is equipped with a HEIDENHAIN 415B control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.
Overview
- brand: FEHLMANN
- year: 1998
- MODEL: Picomax 55 CNC
- application type: Milling
- Location: Germany
- machine type: Milling Machine
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - FEHLMANN Picomax 55 CNC
Control Unit
- Brand: HEIDENHAIN
- Model: 415 B
Main drive
- Spindle speed range: 50-10000 1/MIN
- Spindle motor power: 7 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 250 mm
- Z-AXIS Movement: 160 mm
Table
- Outer length: 885 mm
- Outer width: 320 mm
- TSlots size: 5
- Min distance between vertical spindle and table: 120 mm
- Max distance between vertical spindle and table: 620 mm
- Table load: 50 kg
Additional Information
- Technical Machine Benefits:
- - Working elk
- - X and y axis: 1-11000 mm/min
- - Z axis 1-6000 mm/min
- - W axis 1-3600 mm/min
- - X and y axis 6500 n
- - Z axis 8000 n
- - Distance measuring system resolution
- - Direct measuring system via linear scale - x / y / w axis
- - Indirect measuring system via rotary encoder - z axis
- - Resolution in x, y, z and w axes - 0. 001 mm
- Qualitative Machine Benefits:
- - Accuracy (according to vdi / dgq 3441)
- - Position tolerance p axis(s)
- - X/y 0. 005mm
- - Z/w 0. 010mm
- - Quick tool change system - sf 32
- - Repeatability 0. 002 mm
- - Tool change hydraulically - via push buttons
- - Changing time (manual) sec approx. 3
- - Max. Torque 70 nm
- - This is a 3-axis milling machine with x-y-z - which is controlled with an additional quill w
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
