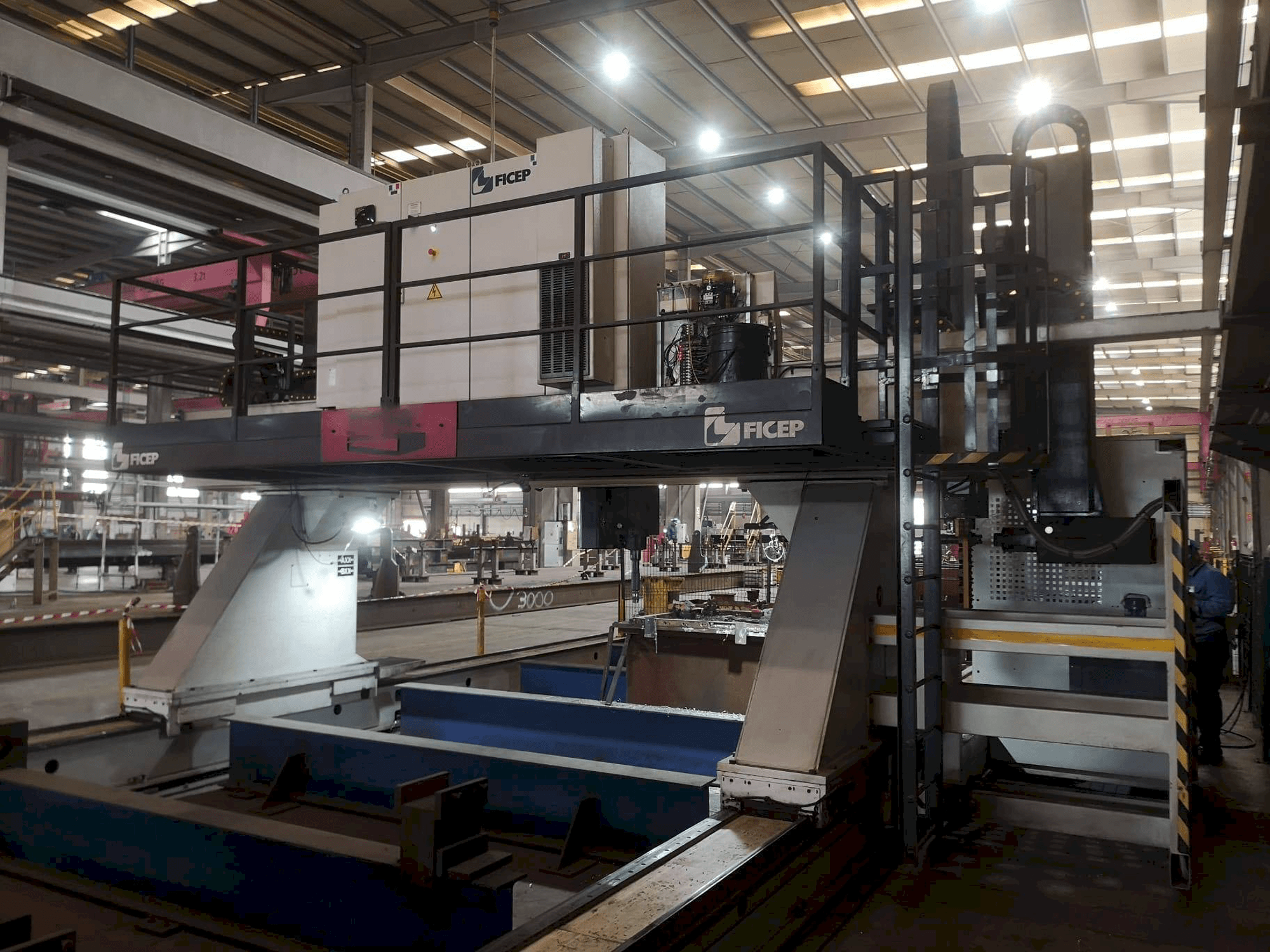

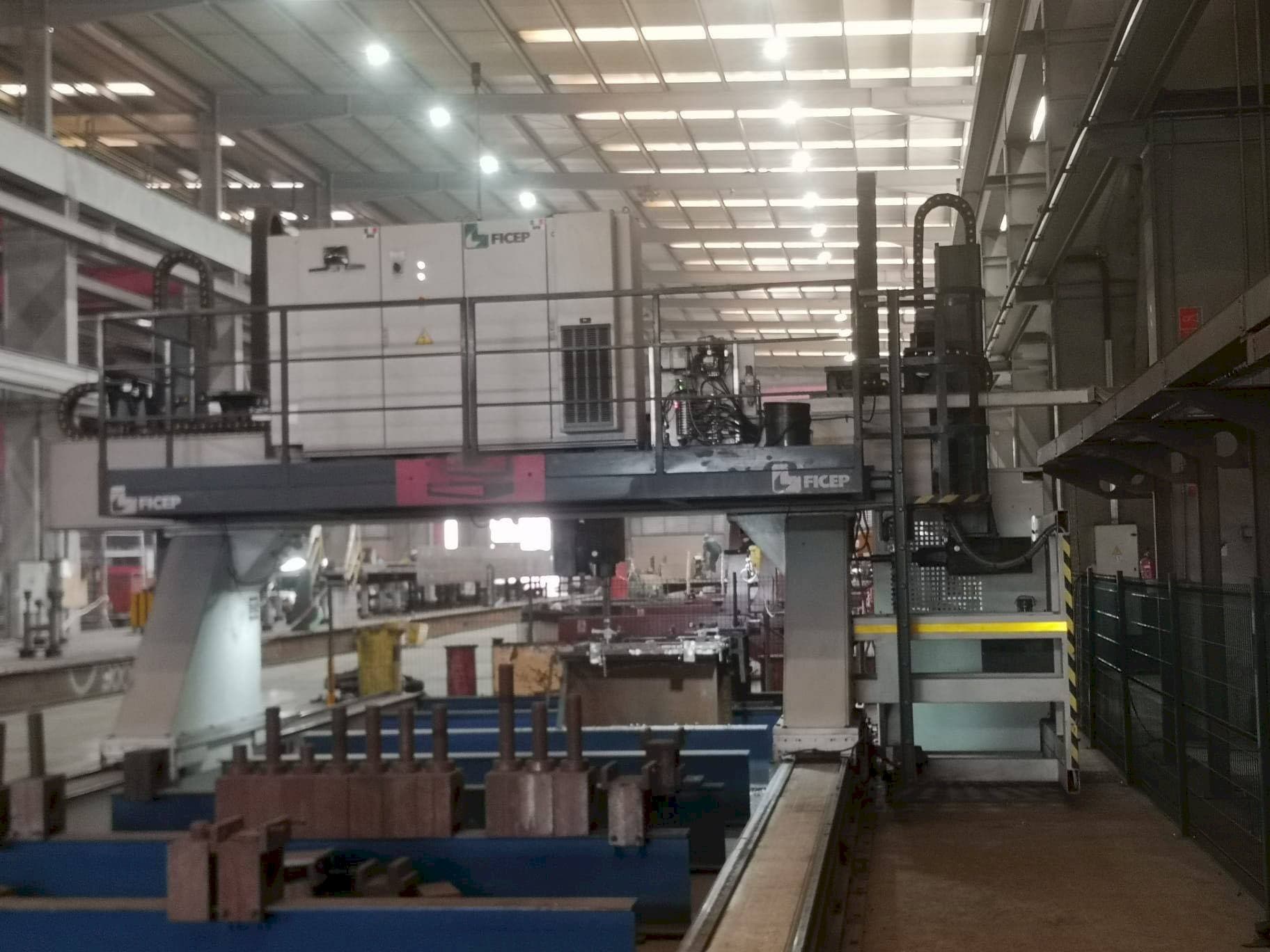

- FICEP 3003/12 GDD CNC automatic drilling lines for welded beams and welded structures
This FICEP 3003/12 GDD CNC automatic drilling lines for welded beams and welded structures was made in the year 2016 in Italy. The machine has a spindle speed of 5000 rpm and 6 axis.
Overview
- brand: FICEP
- year: 2016
- MODEL: 3003/12 GDD
- application type: Drilling
- Location: Spain
- machine type: Drilling machines
- availability: Immediately
Technical Information - FICEP 3003/12 GDD
Main drive
- Spindle speed range: 5000 1/MIN
- Spindle motor power: 31 kw
- Number of axis: 7
Additional Information
- Technical Machine Benefits:
- - Cnc automatic drilling lines for welded beams and welded structures
- - Web height min/max (mm) 200/3000
- - Flange width min. / max. (mm) 100/1200
- - Drilling heads (no. ) 3
- - Spindle spindle (no. ) 6
- - Max. Diameter (mm) 40
- - Aux. Spindle travel (option) (mm) 250
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
