➤ Used FICEP D50F - 2022 - Drill For Sale | gindumac.com

Show in original language

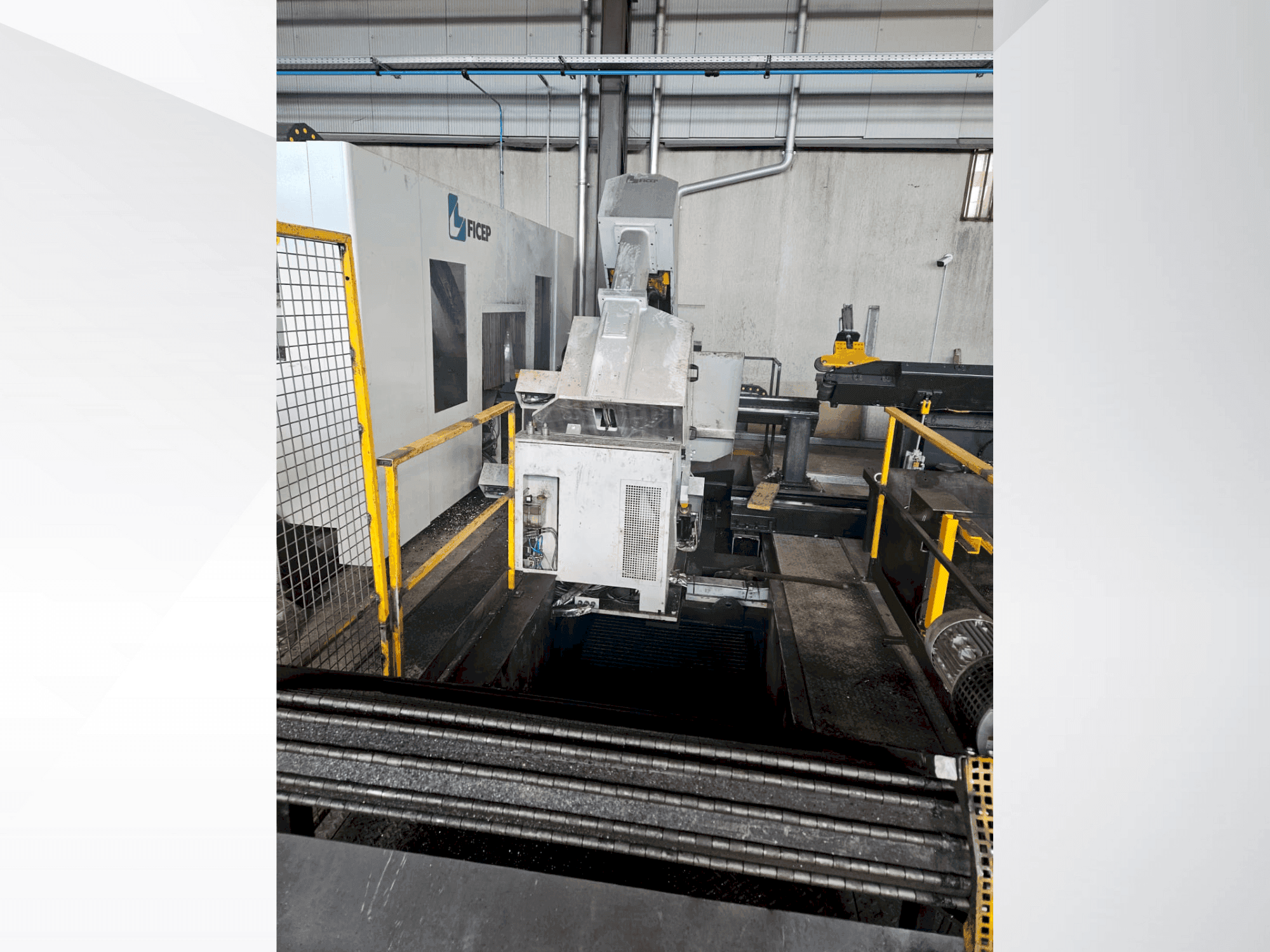

This FICEP D50F was manufactured in 2022. It features a CNC FICEP PEGASO Series, capable of handling flat bars up to 500 × 25 mm and angle profiles up to 180 × 180 × 18 mm. The machine includes a powerful drilling unit with a spindle motor up to 27 kW and a circular saw with a blade diameter of 560 mm. Consider the opportunity to buy this FICEP D50F drilling machine. Contact us for more information about this machine.

Overview

brand: FICEP
year: 2022
MODEL: D50F
application type: Other Machine Tools
Location: Italy
machine type: Drilling Machine (Metal)
availability: Immediately

Technical Information - FICEP D50F

Additional Equipment

- Powered support structure/ Roller table system with detection device / Automatic loading/unloading / Chip conveyor / Beveling/milling equipment / Circular saw / Short parts unloading conveyor for saw
- Hydraulic power unit / Pneumatic system
- Drilling unit with 8-position tool changer / Writing marker unit: MKT 38 N (38 positions + 1 character set)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min. Profile length: 2500 mm / max. Profile length: 12000 mm
- - Number of drilling heads (standard): 1 / max. Drilling diameter: 40 mm (optional 50 mm) / max. Drilling thickness: 40 mm / tool changer: 8 positions (iso40 tool holders)
- - Spindle motor power (s1): 19 kw / spindle motor power (s6-60%): 27 kw / spindle feed rate: 40–400 mm/min / spindle speed: 180–3500 rpm
- - Max. Drilling diameter: 40 mm (optional 50 mm) / max. Drilling thickness: 40 mm
- - Tool changer: 8 positions (iso40 tool holders) / spindle feed rate: 60–400 mm/min / spindle speed: 180–3500 rpm
- - Blade motor power: 18 kw / cutting speed: 80–180 m/min
- - Max. Dimensions of flat bars: 500 × 25 mm / max. Dimensions of angles: 180 × 180 × 18 mm / max. Dimensions of upn profiles: upn 300 / max. Dimensions of square tubes: 160 × 160 mm / max. Dimensions of rectangular tubes: 300 × 100 mm
- - Tool changer: 8 positions (iso40 tool holders)
- - Max. Feed speed: 50 m/min / infeed table for 12 m bars / infeed transfer table with trolleys (12 m bars) / outfeed table for 12 m bars / outfeed transfer table with trolleys (12 m bars) / powered arms: 11 / auxiliary arms: 11
- - Zero reference auto-correction system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
