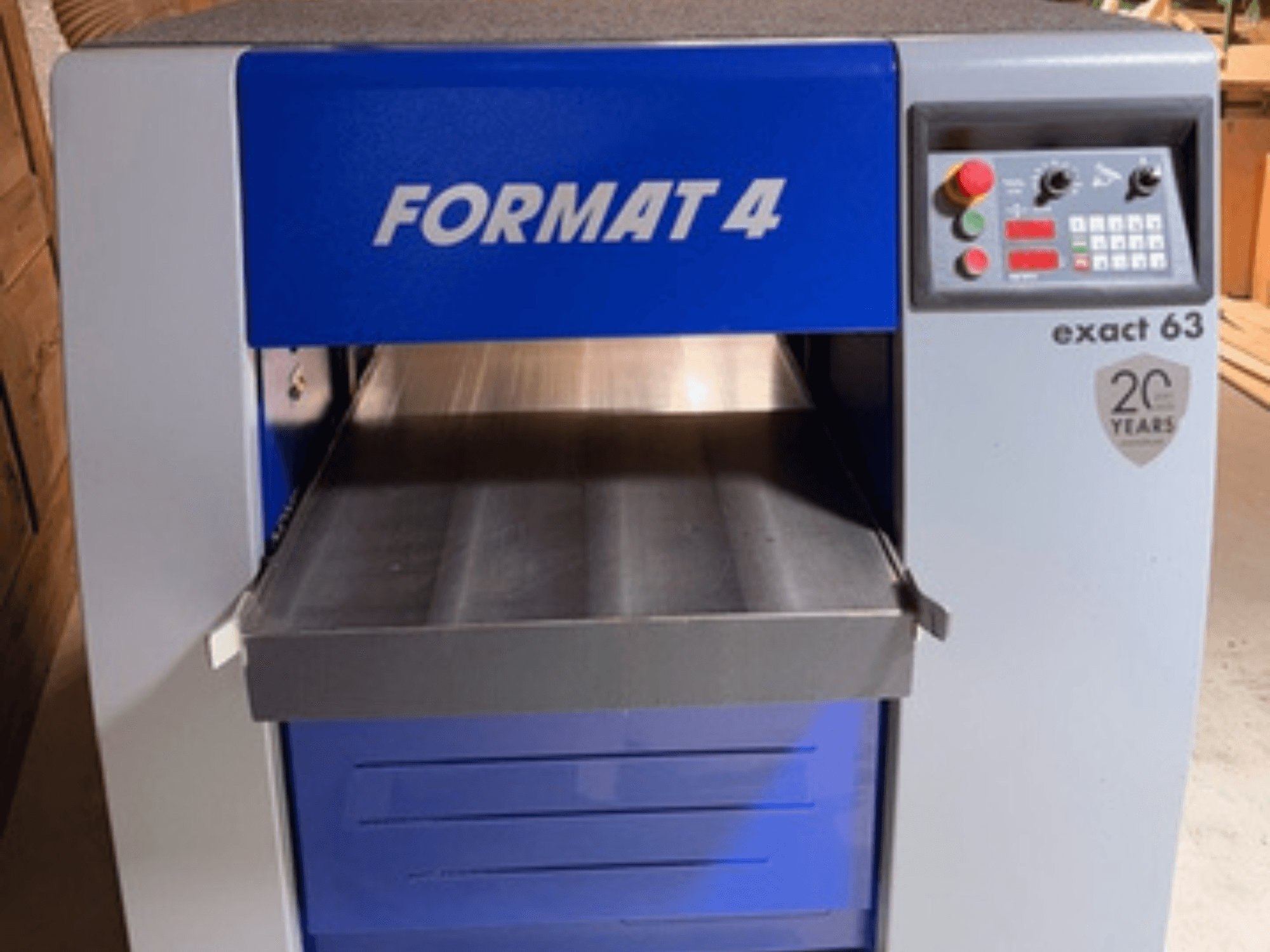

Wood Planer manufactured in 2020. This FORMAT4 EXACT 63 features a planing width of 630 mm and a table length of 1050 mm. It offers a thickness range of 3 – 300 mm with a maximum chip removal of 10 mm. If you are looking to get high-quality planing capabilities, consider the FORMAT4 EXACT 63 machine we have for sale. Contact us for further details.
Overview
- brand: FORMAT4
- year: 2020
- MODEL: EXACT 63
- production hours: 80
- application type: Planing
- Location: Germany
- machine type: Wood Planer
Technical Information - FORMAT4 EXACT 63
Dimensions
- Machine Weight: 1000 kg
Additional Information
Planing width: 630 mm
Table length: 1050 mm
Thickness range: 3–300 mm
Maximum chip removal: 10 mm
Cutterblock: 4-knife system, diameter 120 mm, speed 4600 rpm, self-setting planer knives
Feed speed: stepless 5–20 m/min; feed unit with variable speed
Main motor: 10.0 kW
Electrical: 3 x 400 V, 50 Hz, duty type S6, star-delta start
Thickness height adjustment: electric with digital display
Position control: Digi Drive D1 with LED display for set/actual value; programmable positioning functions
Infeed roller: steel, spiral toothed, 630 mm
Outfeed roller: steel, 630 mm
Pressure bars: segmented at infeed; spring-loaded at outfeed
Side guiding strips on thickness table
Swiveling extraction hood
Machine weight: approx. 1000 kg
Control: conventional (non-CNC)
Additional equipment
Table extension with workpiece roller, 630 x 570 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
