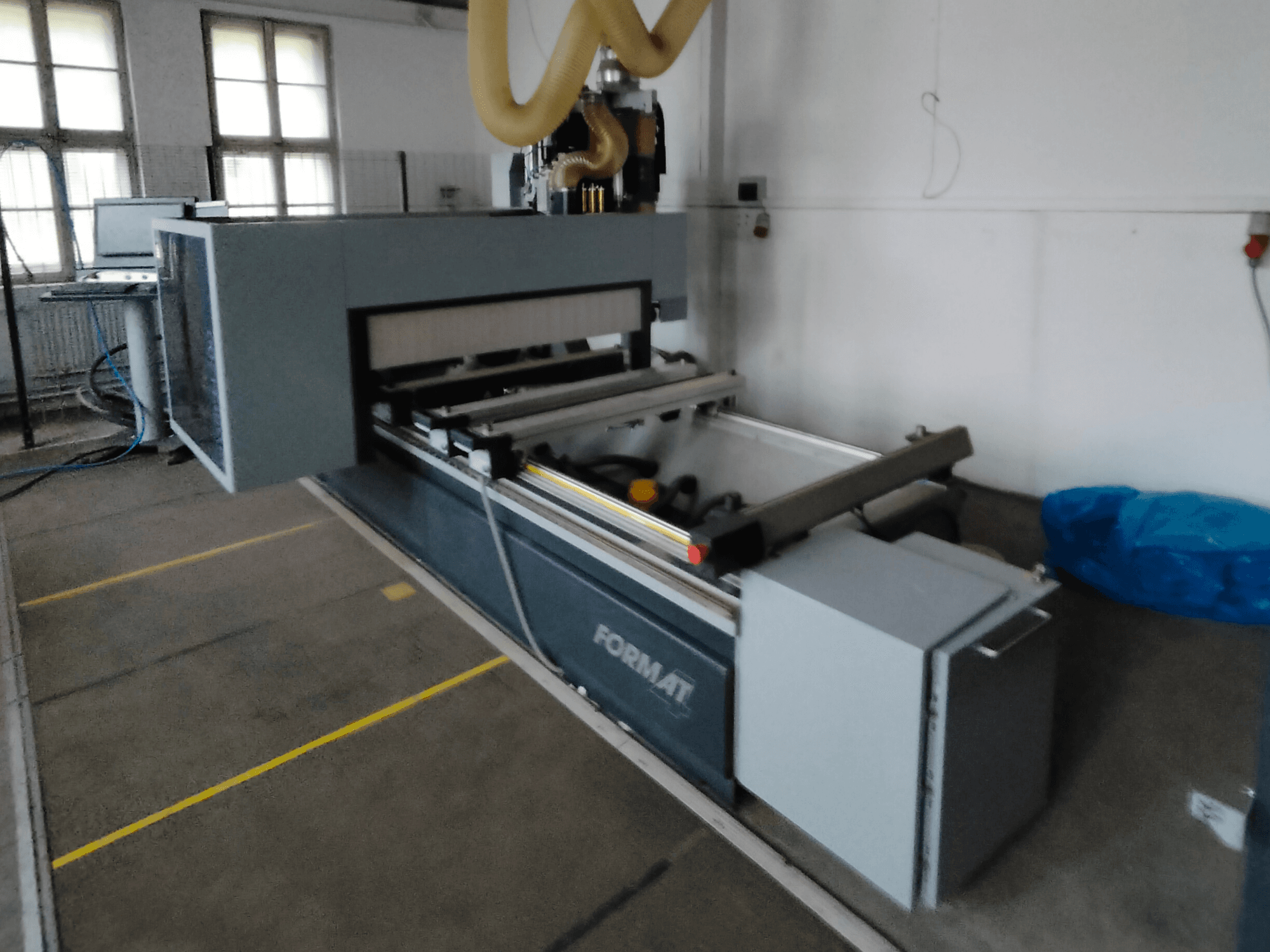

FORMAT4 - Profit H200 13.33PL-CNC-FOR-2019-00001

Working field (max panel size)

• X: 3300 mm

• Y: 1280 mm

• Z clearance: 250 mm

Spindle

• Tool interface: HSK F63

• Rated power at: approx. 12,000 rpm

• Cooling: Air-cooled

• Rotation: CW / CCW

Tool magazine

• Linear tool magazine (side-mounted): 12 positions

• Additional linear magazine on gantry: 4 positions

• Max. tool diameter: 250 mm

• Max. tool length: 300 mm

Drilling unit

• Model: DH 24 6H 2S

• Vertical spindles: 18 (12 in X, 6 in Y)

• Horizontal spindles: 6 (4 in X, 2 in Y)

• Max. drill length: 70 mm

• Max. tool diameter: 10 mm

• Grooving saws: 2 (X and Y)

• Max. saw diameter: 120 mm

• Max. speed: 6,000 rpm

Vacuum table

• 6 consoles (instead of 4)

• Dual-circuit vacuum system

• Vacuum cups height: 100 mm

• Pneumatic console locking

• Adjustable side stops (Y-axis)

Axis system

• X-axis: Rack and pinion drive

• Y/Z-axis: Ball screw drive

• Linear guideways on all axes

• Central automatic lubrication

Control and software

• CNC control with CAD/CAM software

• 3D simulation preview

• DXF import capability

• Parametric programming

• Remote service package (internet-ready)
