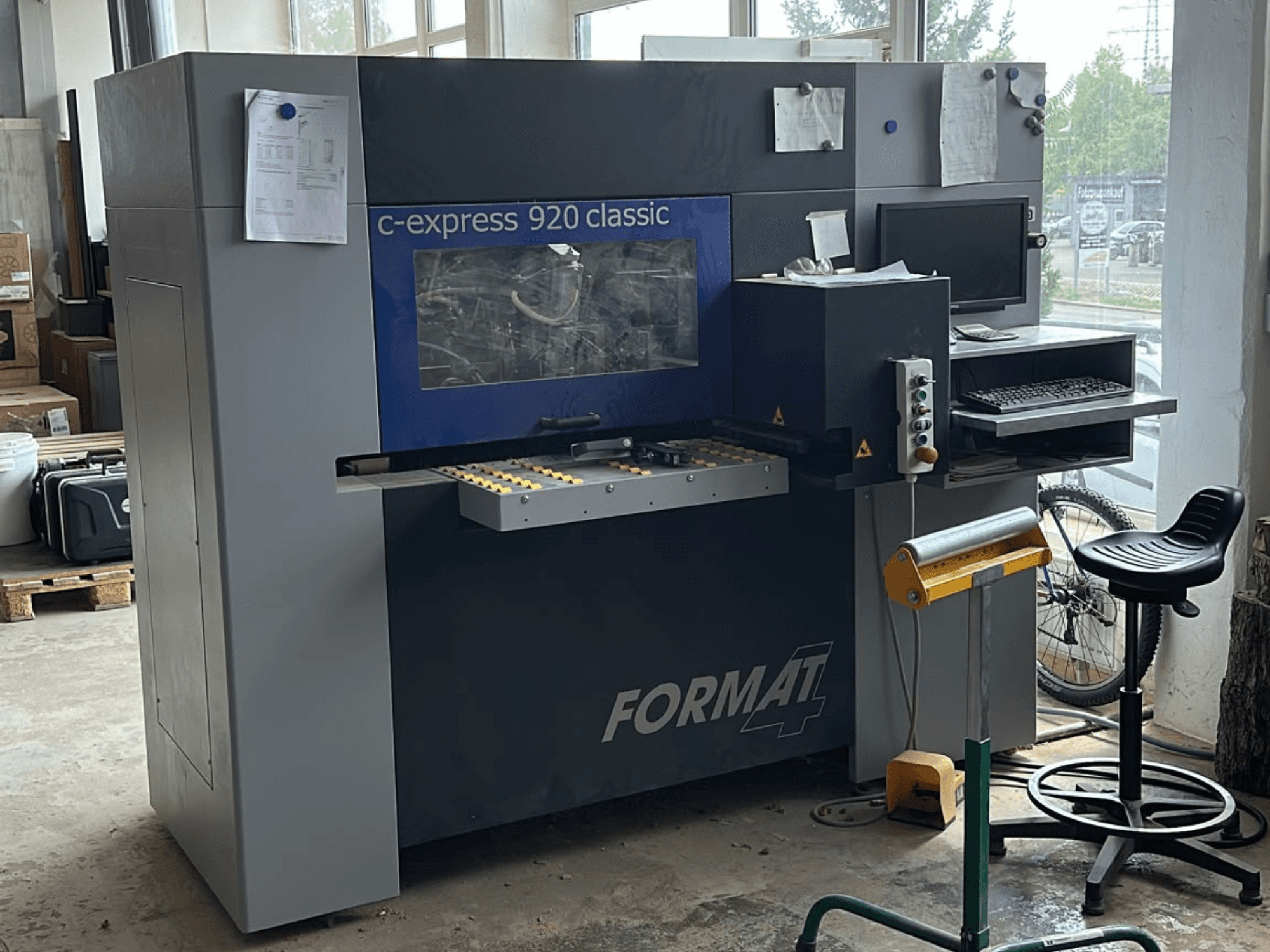

This 3-axis FORMAT4 c-express 920 classic was manufactured in 2018. It features a maximum workpiece dimension of 3000 mm in the X direction and 920 mm in the Y direction, with a robust clamping collet system for CNC through-feed technology. The machine is equipped with 6 vertical and 9 horizontal drilling spindles, allowing for versatile drilling, sawing, and milling operations. If you are looking to get high-quality wood machining capabilities, consider the FORMAT4 c-express 920 classic machine we have for sale. Contact us for further details.
Overview
- brand: FORMAT4
- year: 2018
- MODEL: c-express 920 classic
- application type: CNC Wood Machining
- Location: Germany
- machine type: CNC Wood Machining Centre
- Available from: 28/12/2026
Technical Information - FORMAT4 c-express 920 classic
Dimensions
- Machine Height: 1950 mm
- Machine Length: 2100 mm
- Machine Weight: 850 kg
- Machine Width: 1500 mm
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 920 mm
- Z-axis Travel: 50 mm
Additional Information
Voltage: 400 V
Phase: 3 Ph
Frequency: 50 Hz
Current: 22 A
Power: 7.0 kW
Duty Cycle: S6 40%
CNC Drilling Center c-express 920 classic
Clamping Collet System for CNC Through-Feed Technology
Drilling, Sawing and Milling Operations from Below (optionally without milling spindle)
Laser "0" Double Reference
Drilling Head: DH15
6 Vertical Drilling Spindles
9 Horizontal Drilling Spindles
1 Grooving Saw in X Direction
Graphical User Interface
Machine Software License: 1
CE Conformity
Maximum Workpiece Dimensions (X × Y × Z): 3000 × 920 × 50 mm
Minimum Workpiece Dimensions (X × Y × Z): 280 × 180 × 10 mm
19" LCD Color Display
Mouse and Keyboard
Packed on Pallet: 2100 × 1500 mm
Tools:
HW circular saw blade 100 × 5 / 3.6 × 20 Z24 / FZ
DP end mill D12 / NL23.5 / Z2+2+Q / GL80 / S20 / RL
ER32 collet, Ø20 mm
Drill bit Ø5 mm LL (3×)
Drill bit Ø5 mm RL (2×)
Drill bit Ø8 mm LL (4×)
Drill bit Ø8 mm RL (3×)
Through drill bit Ø5 mm LL (1×)
Drill bit Ø15 mm RL (1×)
Drill bit Ø35 mm RL (1×)
End mill Ø8 mm (1×)
End mill Ø10 mm (1×)
In addition: one 8 mm end mill and one 10 mm end mill are also included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
