FPT AREA M Machining Center

Show in original language

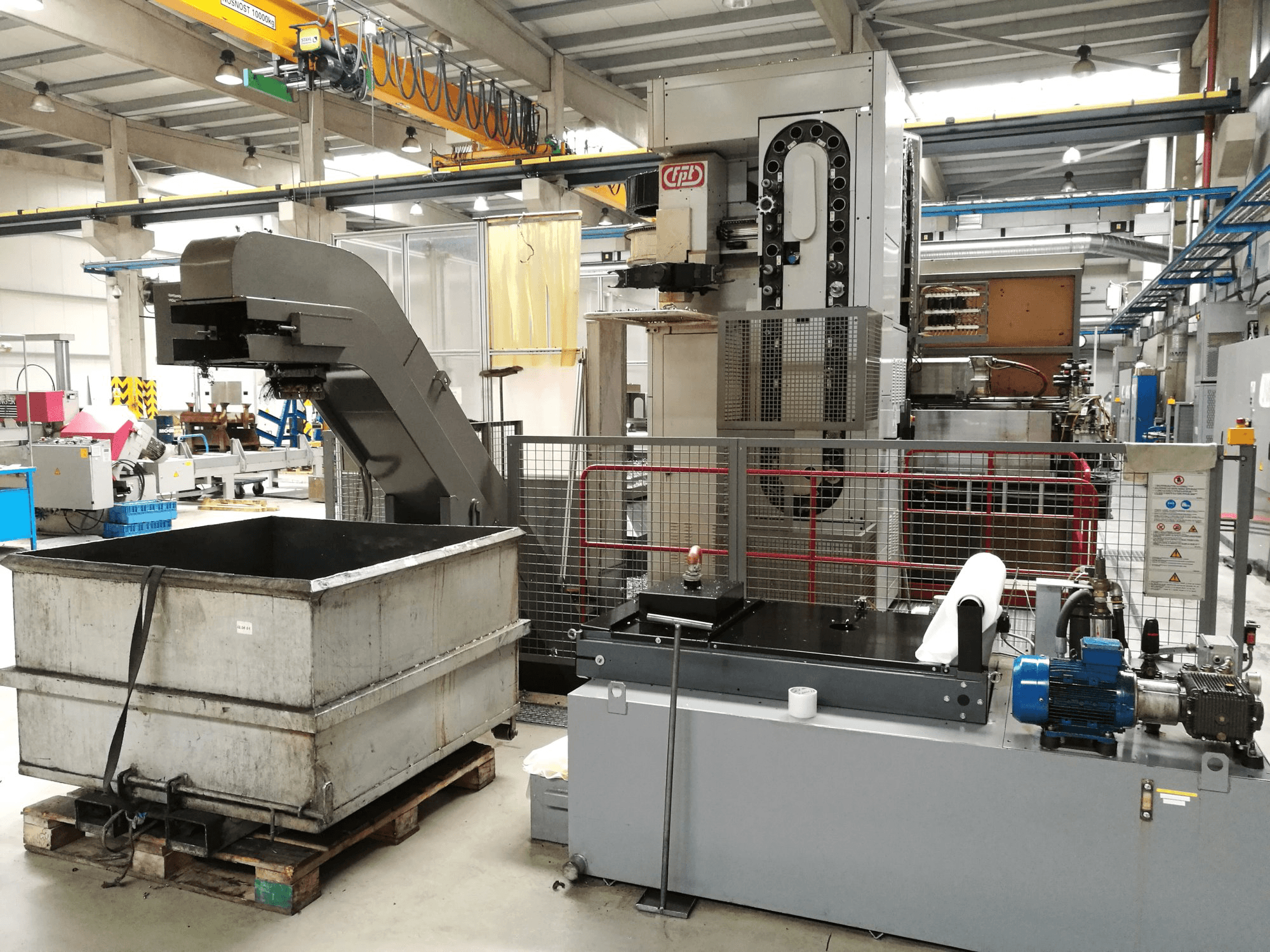

This FPT AREA M Machining Center was made 2008 in Italy and has a working record of approximately 10000 production hours. This model is equipped with a SIEMENS SINUMERIK Control unit and stands out due to its hydrostatic guideways on the X, Y and Z axis, its pallet changing system and automatic milling head exchange. During the past, this machine has worked mainly with steel.

Overview

brand: FPT
year: 2008
MODEL: AREA M
production hours: 10000
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - FPT AREA M

Control Unit

Model: SINUMERIK 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 3000 1/min
Spindle motor power: 37 kw

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 1250 mm
Z-AXIS Movement: 2000 mm

Workpiece

Workpiece weight: 7000 kg

Table

Outer length: 1000 mm
Outer width: 1000 mm

Tools

Max weight: 20 kg
Max tool diameter: 230 / 125 mm
Max tool length: 400 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Straight milling head, D'Andrea head

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque 2000 nm
- - Spindle taper iso 50
- - Axes feedrate 15. 000 mm/min
- - 2 rotating tables
- - Table indexation 0. 5 degrees
- - Storage rack for 3 heads
- - High pressure cooling outside/inside 8/20 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
