➤ Used FPT DINOMAX - Gantry Mill For Sale | gindumac.com

Show in original language

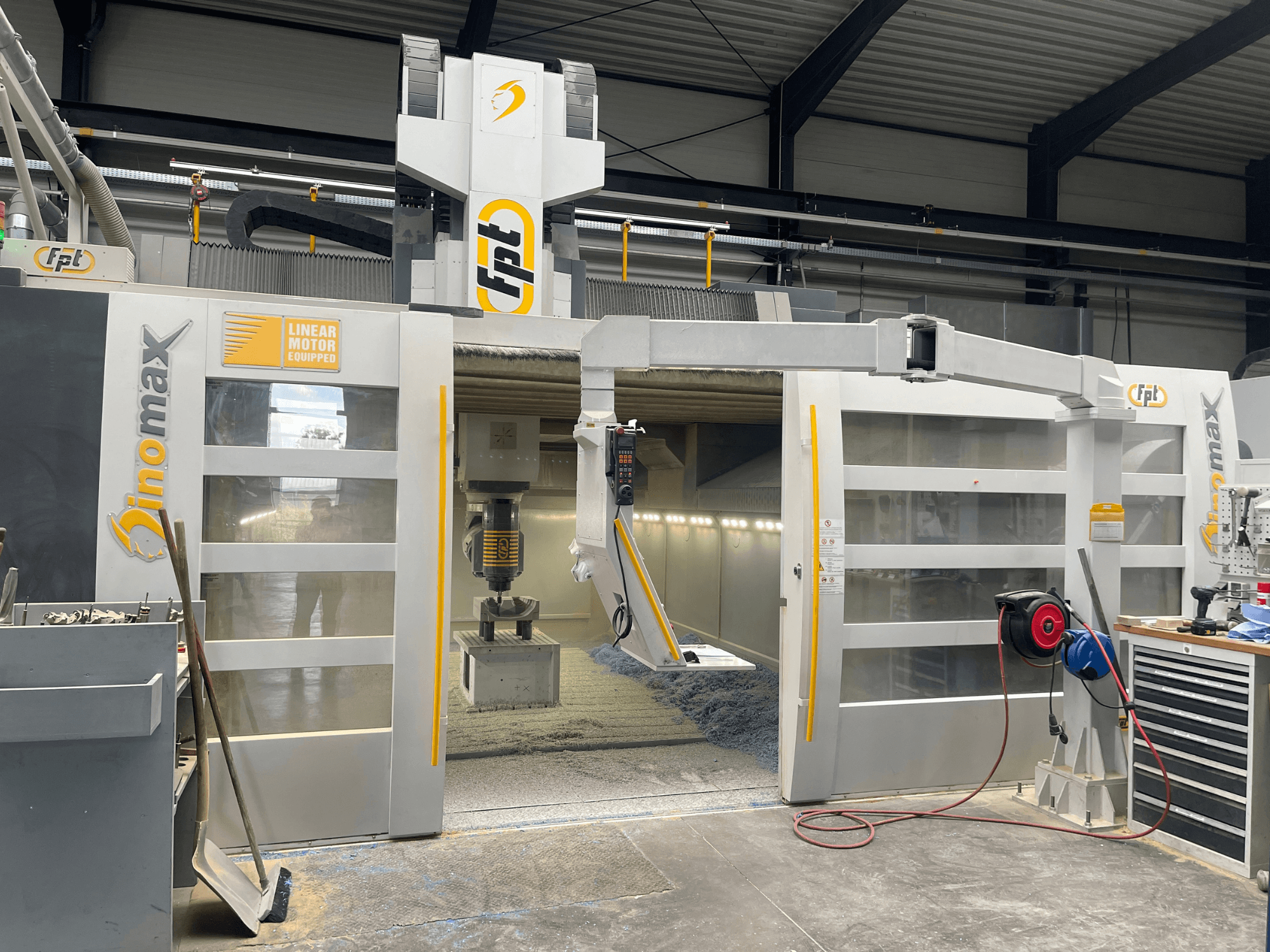

This 5-axis FPT DINOMAX gantry milling machine was manufactured in 2022. It features an impressive X-axis travel of 4000 mm, Y-axis travel of 2700 mm, and Z-axis travel of 1300 mm. The machine includes a robust table size of 2500 x 4000 mm with a load capacity of 15 t/m². If you are looking to get high-quality milling capabilities, consider the FPT DINOMAX gantry milling machine we have for sale. Contact us for further details.

Overview

brand: FPT
year: 2022
MODEL: DINOMAX
production hours: 14089
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
Available from: 01/10/2026
control unit brand: HEIDENHAIN

Technical Information - FPT DINOMAX

Control Unit

Control Brand: HEIDENHAIN
Control Model: TNC 640

Movement

Number of Axes: 5
X-axis Travel: 4000 mm
Y-axis Travel: 2700 mm
Z-axis Travel: 1300 mm

Technical Specification

Spindle Speed: 10000 RPM

Additional Information

- NC Software Version: 340590 11 SP5 Hotfix1

- Control On Time: 16,539 hours

- Machine On Time: 14,089 hours

- Program Run Time: 6,549 hours

- Spindle Motor 1 Working Hours: 0 hours

- Spindle Motor 2 Working Hours: 3,627 hours

- Head Accessory 1 Working Hours: 5,768 hours

- Head Accessory 2 Working Hours: 4,343 hours

- Longitudinal Travel (X-Axis): 4000 mm

- Cross Travel (Y-Axis): 2700 mm

- Vertical Travel (Z-Axis): 1300 mm

- Max. Rapid Feed X-Axis: 50 m/min

- Max. Rapid Feed Y-Axis: 50 m/min

- Max. Rapid Feed Z-Axis: 35 m/min

- Max. Working Feed X-Axis: 40 m/min

- Max. Working Feed Y-Axis: 40 m/min

- Max. Working Feed Z-Axis: 25 m/min

- Table Dimensions: 2500 x 4000 mm

- Table Height: 300 mm

- Table Load Capacity: 15 t/m²

- T-Slots Width & Distance: 22 mm (DIN 650 H12), 250 mm pitch

- Max. Installed Power: 177 KVA

- Max. Required Current: 235 A

- Required Pneumatic Flow: 400 Nl/min

- Operating Pneumatic Pressure: 6 bar

- Operating Voltage: 400V 50Hz

- Machine Weight: 66,650 kg

- Integrated 4th Torque C-Axis Swivel Range: +/-270°

- Integrated C-Axis Max Speed: 30 rpm

- TUDX 50° Universal Milling Head A-Axis Range: +/-180°

- Electrospindle HSK-A100 (10,000 rpm): 45 kW / 55 kW (S1/S6), 246 Nm / 301 Nm (S1/S6)

- High-Frequency Spindle HSK-A63 EMPT2230-H63 (22,000 rpm): 30 kW / 37 kW (S1/S6), 90 Nm / 110 Nm (S1/S6)

- Tool Changer Capacity: Chain magazine for 128 tools (HSK-A100 x 40, HSK-A63 x 88)

- Max. Tool Length: 700 mm (HSK-A100), 400 mm (HSK-A63)

- Max. Tool Weight: 25 kg (HSK-A100), 10 kg (HSK-A63)

- Coolant Tank Capacity: 1500 liters

- High-Pressure Internal/External Coolant System (IKZ/ÄKZ): 70 bar / 30 l/min

- Additional Features: Linear Motor Driven X and Y Axes, Renishaw RMP60M Wireless Probe, Laser Tool Measurement System, MARES 4.0+ System Integration, Bellows Roof Enclosure, Stainless Steel Interior Guarding, Chip Conveyors

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
