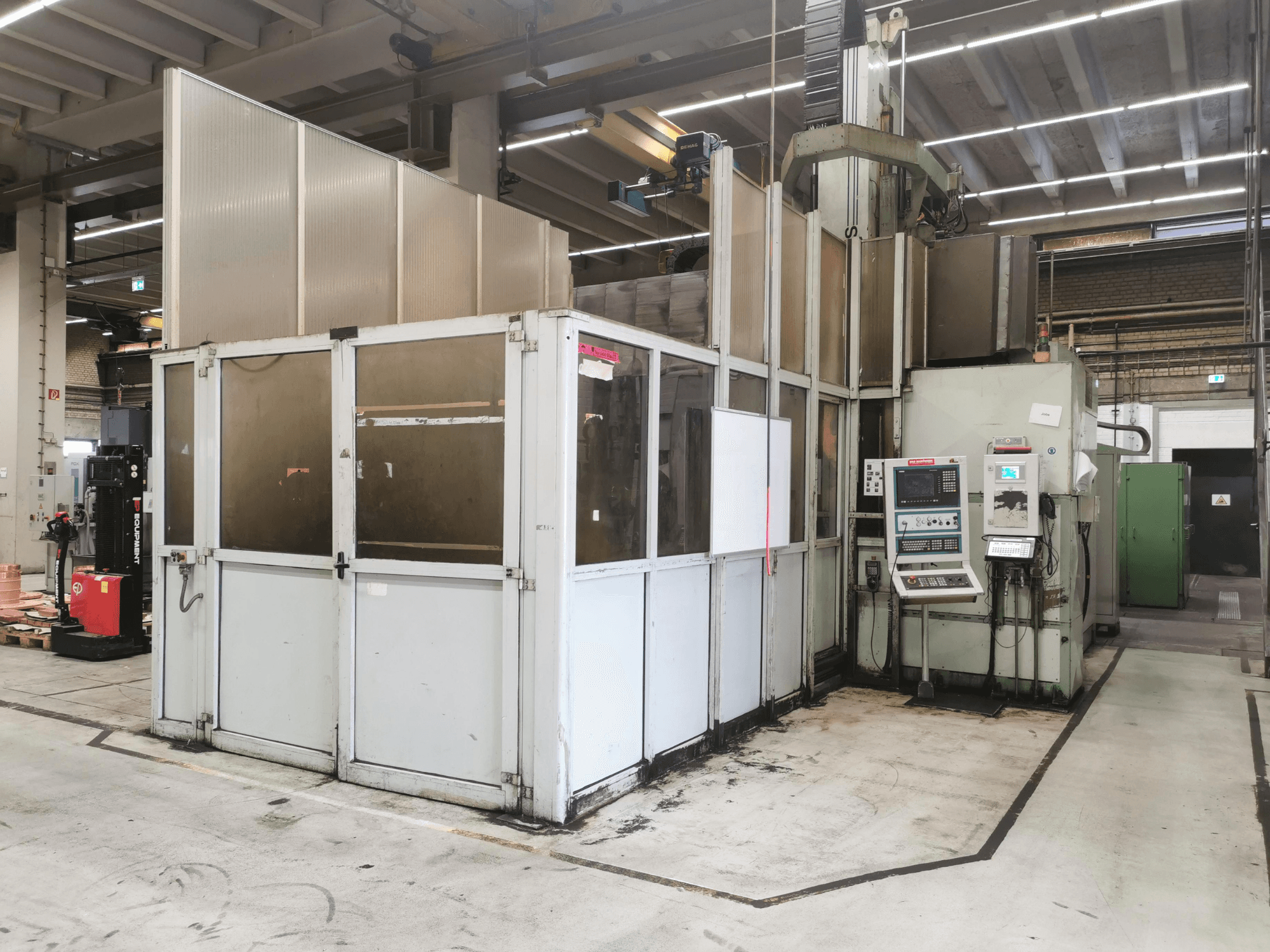

JOBS - Jomach 241DE-MIL-JOB-2007-00001

- Control System: Siemens Sinumerik 840D (Software version 3.7 MMc 103, JO'CAM NC-Steuerung)

- Power On Hours: 91,055.12 h

- Spindle Hours: 34,019.20 h

- X Axis Travel (Longitudinal): 3,400 mm (+ 2,000 mm for pallet changers)

- Y Axis Travel (Transversal): 2,500 mm

- Z Axis Travel (Vertical): 1,250 mm

- Distance Between Columns: 2,200 mm

- C Axis (Twist Head - First Rotation): ±400°

- A Axis (Twist Head - Second Rotation): 220° (±110°)

- Linear Axes Min Position Step (X-Y-Z): 0.001 mm (0.00004 in) / 0.0005 mm

- Angular Axes Min Position Step (C-A): 1° (6,000 Nm)

- Linear Axes Speed (X-Y-Z): 5 to 16,000 mm/min

- Angular Axes Speed (C/A): 50 / 30 deg/sec

- Spindle Taper: HSK-A-63

- Spindle Speed: 500–4,000 RPM

- Spindle Motor Power S6 (S1): 25 kW / 17 kW (15 kW) / 20 kW / 18.5 kW (15 kW) / 47 kW (39 kW)

- Spindle Motor Type: Siemens Type DMR 160.AS.4.FFS

- Twist Head Pivot Point: 250 mm

- Worktable Size: 3,000 x 1,500 mm

- Worktable Load Capacity: 12,000 kg

- Pallet Size: 2,500 x 1,500 mm

- Pallet Load Capacity: 8,000 kg

- Tool Magazine Capacity: 16 / 32 positions (Chain type)

- JO'TOOL Static Rack Capacity: 12 to 360 tools

- Electric Power Supply: ~70 to 96 kVA

- Three-Phase Power Supply: 380V - 50Hz / 480V - 60Hz

- Basic Machine Weight: 50,000 kg

- Machine Dimensions (Layout Ground Area): 11,000 mm x 7,000 mm / 11,200 mm x 6,400 mm

- Compressed Air Pumps / Coolant Tank: Johnson (Sealing Material: Viton)

- Optional Equipment & Accessories: Angle head, 2x fork heads, head magazine, 2x twist heads, quill with head, quill without head, 3-A head mount, complete replacement spindle, all new or repaired axis motors in stock, documentation comprising approx. 4 folders (including manuals, repair invoices, defect report from 2006 available)
