Friggi - VTS 4100 X 1500 X 1200 HSDE-SAW-FRI-2007-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Friggi VTS 4100 X 1500 X 1200 HS | For Sale

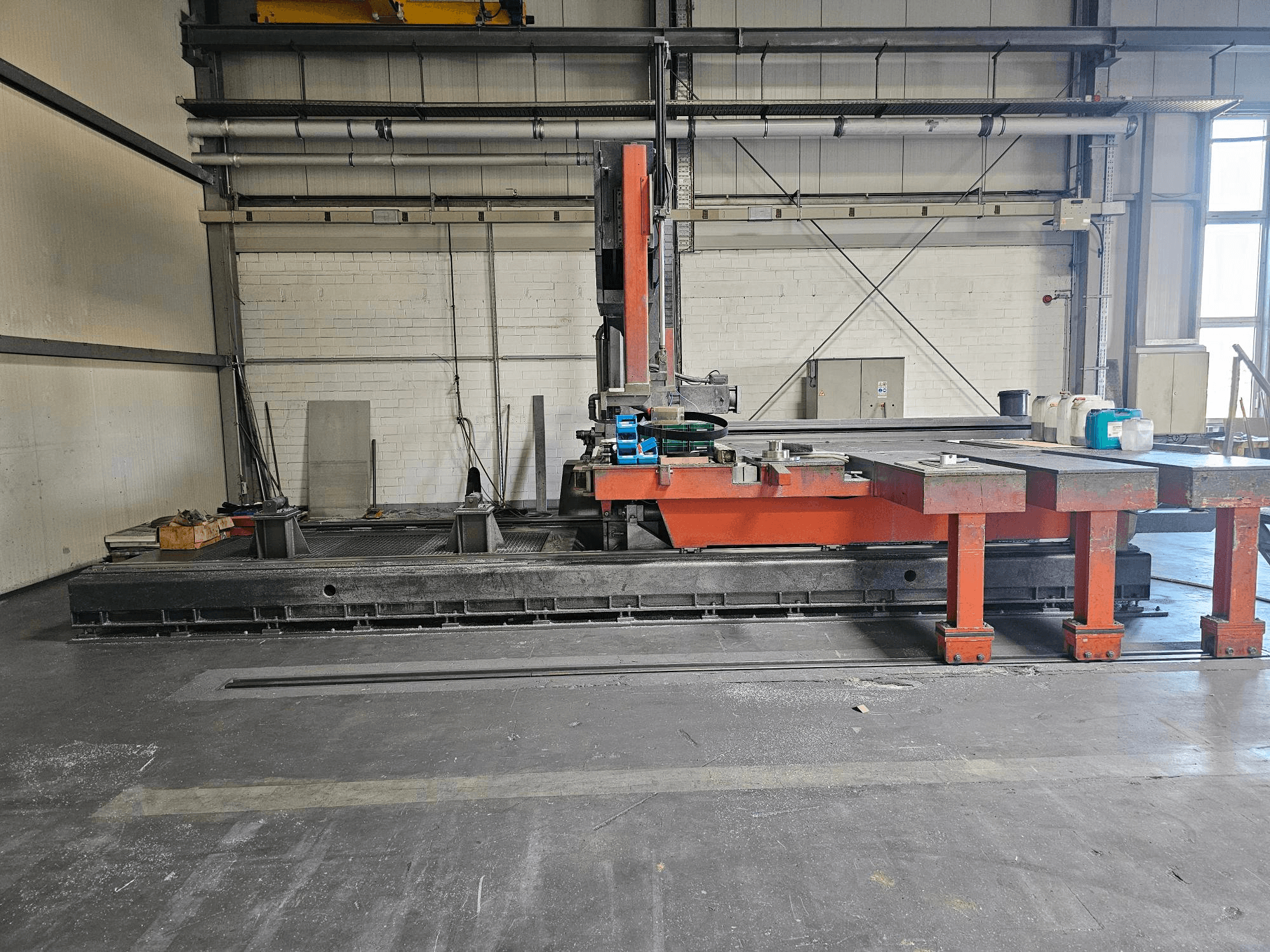

This 3-axis Friggi VTS 4100 X 1500 X 1200 HS was manufactured in 2007. It features a maximum blade length of 11470 mm and blade dimensions of 41 x 1.3 mm. The band rotation speed ranges from 400 to 2300 m/min, and the blade motor power is 45 KW. If you are looking to get high-quality cutting capabilities, consider the Friggi VTS 4100 X 1500 X 1200 HS machine we have for sale.Contact us for more information.
Overview
- brand: Friggi
- year: 2007
- MODEL: VTS 4100 X 1500 X 1200 HS
- application type: Sawing
- Location: Germany
- machine type: Metal Band Saw
Technical Information - Friggi VTS 4100 X 1500 X 1200 HS
Dimensions
- Machine Weight: 14750 kg
Additional Information
Electrical
Supply voltage: 400 V
Phases: 3
Frequency: 50 Hz
Installed power: 58 kW
Cutting and dimensions
Cutting capacity (L × W × H): 4100 × 1500 × 1200 mm
Max. blade length: 11,470 mm
Blade dimensions: 41 × 1.3 mm
Band rotation speed: 400–2300 m/min
Blade motor power: 45 kW
Flywheel diameter: 1000 mm
Table axis: 4100 mm
Stop axis: 1500 mm
Band axis: 1200 mm
Table feed speed (manual cycle): up to 5000 mm/min
Hydraulic system
Reservoir capacity: 150 L
Pump flow rate: 40 L/min
Pump motor power: 9 kW
Color coding
Structure: RAL 7039
Flywheel covers: RAL 7021
Moving parts: RAL 2004
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
