➤ Used FRITZ MULLER ZAE 400-25.1.1 For Sale | gindumac.com

Show in original language

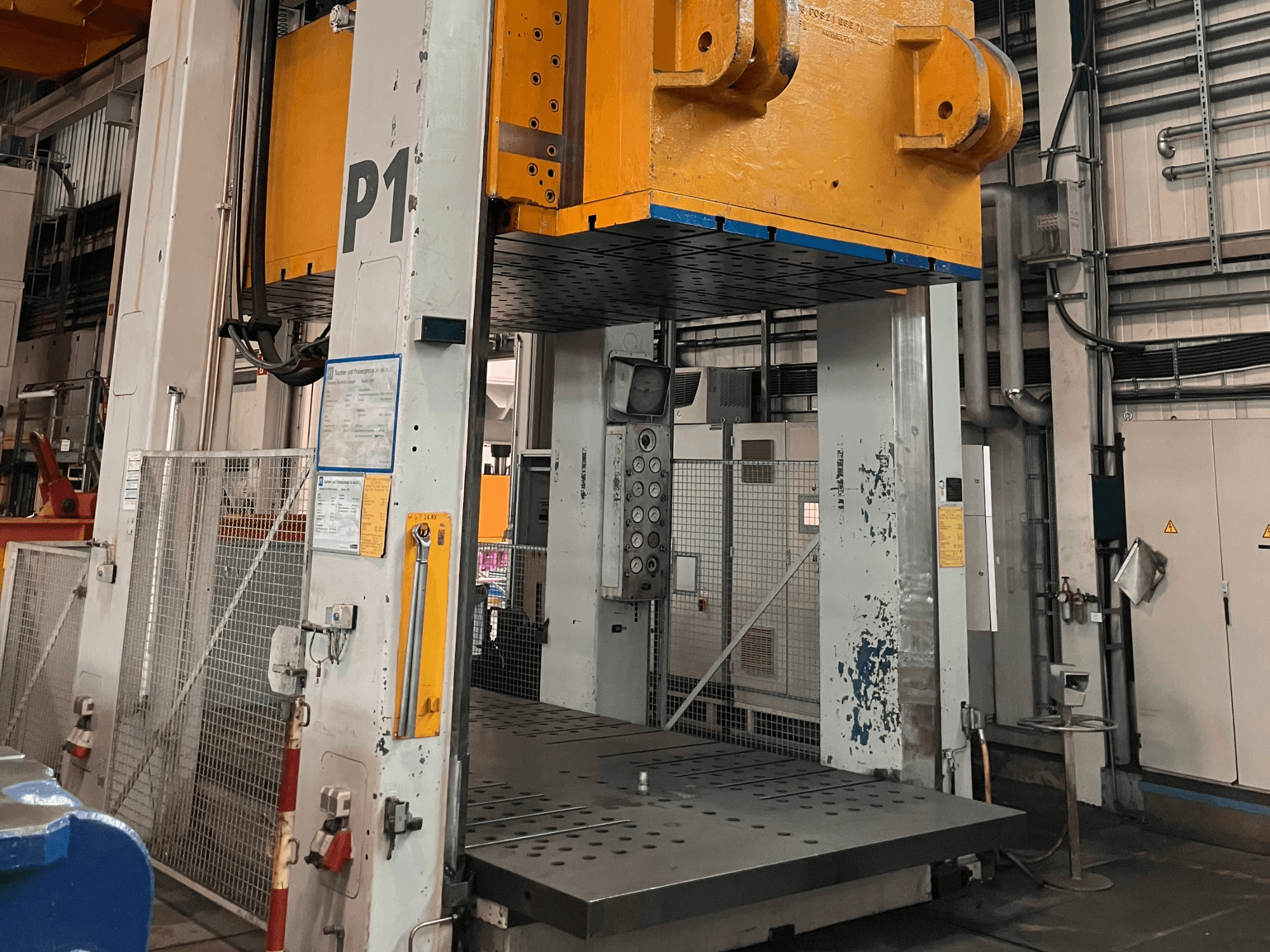

Hydraulic press manufactured in 1980. This FRITZ MULLER ZAE 400-25.1.1 features a substantial press force of 400 t and a table size of 4,500 × 2,500 mm. The ram and additional clamping plate size is 4,500 × 2,500 mm, with a ram stroke of 1,490 mm, providing robust performance for various applications. The travelling table supports a maximum load of 60 t. If you are looking to get high-quality pressing capabilities, consider the FRITZ MULLER ZAE 400-25.1.1 machine we have for sale. Contact us for further details.

Overview

brand: FRITZ MULLER
year: 1980
MODEL: ZAE 400-25.1.1
application type: Bending
Location: Germany
machine type: Hydraulic Press

Technical Information - FRITZ MULLER ZAE 400-25.1.1

Dimensions

Machine Weight: 25000 kg
Table Length: 4500 mm
Table Load: 60000 kg
Table Width: 2500 mm

Technical Specification

Max. Stroke: 1490 mm
Pressing Force: 4000 Kn

Additional Information

Pressing Force

Ram Force: 4000 kN
Table Ejector Force: 200 kN
Ram Cushion Force: 2000 kN

Stroke

Ram Stroke: 1490 mm
Table Ejector Stroke: 550 mm
Ram Cushion Stroke: 200 mm
Max. Stroke: 900 mm (UT)

Working Area

Ram Cushion Surface: 4000 × 1500 mm
Max. Tool Installation Height: 2390 mm
Max. Travelling Table Load: 60 t

Clamping Surfaces

Ram & Additional Clamping Plate: 4500 × 2500 mm
Travelling Table: 4500 × 2500 mm

Additional Information

Oil Capacity: 3000 l HLP46
Oil Cleanliness Class: 15/13/10 according to ISO 4406
Travelling Table: Max. Load 60 t

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
