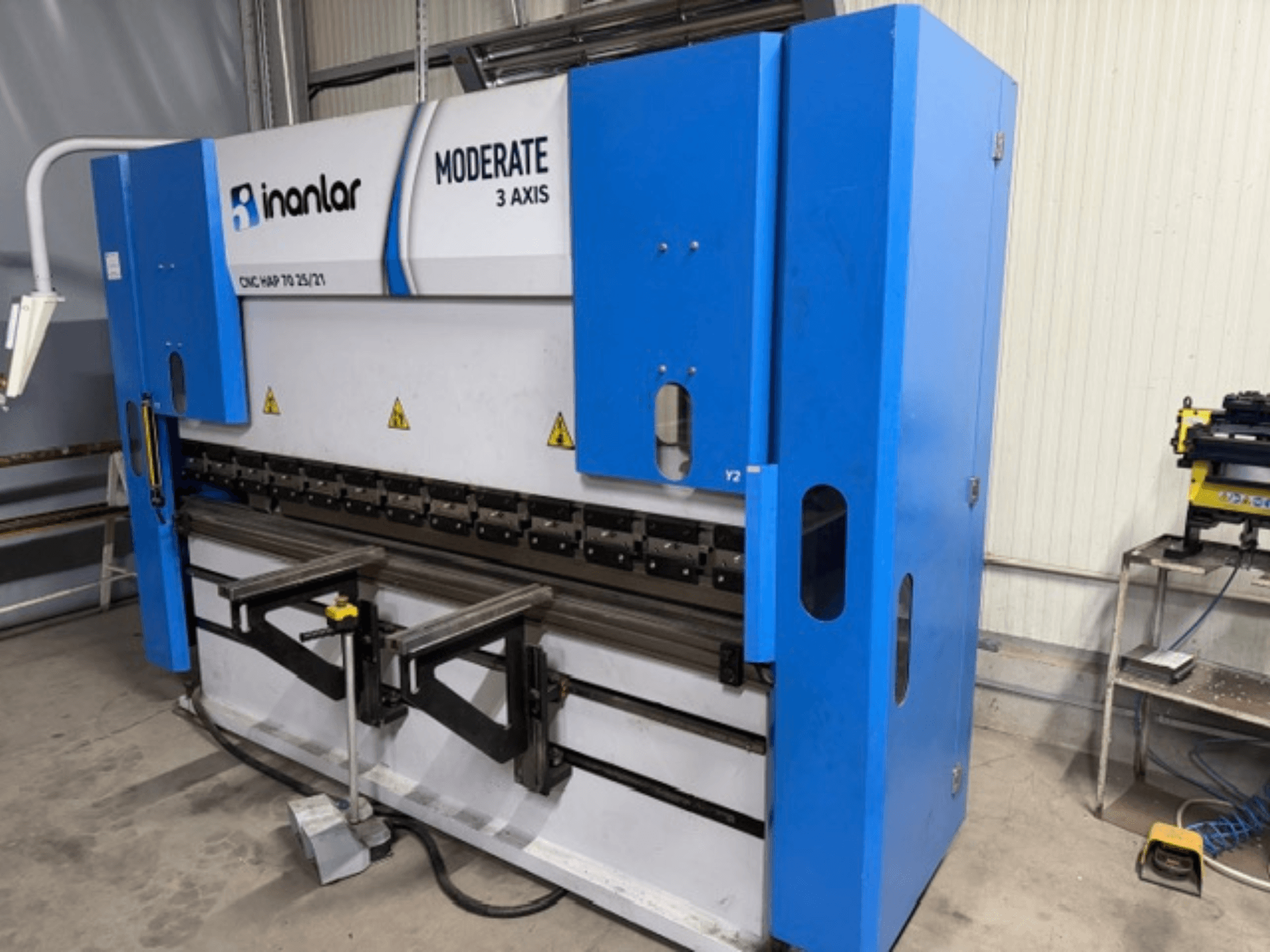

This Inanlar CNC HAP 70 25/21 was manufactured in 2018. It features a bending length of 2,550 mm and a bending force of 70 tons. The machine includes a finger protection system and supports for safety and efficiency. With a main motor power of 5.5 kW and a stroke of 185 mm, it's ideal for precise bending operations. Contact us for more information about this machine.
Overview
- brand: Inanlar
- year: 2018
- MODEL: CNC HAP 70 25/21
- application type: Bending
- Location: Romania
- machine type: Hydraulic Press
Technical Information - Inanlar CNC HAP 70 25/21
Dimensions
- Machine Height: 2100 mm
- Machine Length: 2950 mm
- Machine Weight: 4050 kg
Movement
- X-axis Travel: 500 mm
Technical Specification
- Bending Length: 2550 mm
Additional Information
Bending force: 70 tons
Bending capacity (steel 400 N/mm² over full length): 3 mm
Distance between uprights: 2,100 mm
Speeds
Down speed: 90 mm/s
Working speed (bending): 8 mm/s
Return speed: 70 mm/s
Axes
X-axis speed: 250 mm/s
Safety & equipment
Finger protection system (spaced pads): 2 units
Table supports: 2 units
Hydraulics & power
Oil tank capacity: 180 liters
Main motor power: 5.5 kW
Tooling / geometry
Ram stroke: 185 mm
Distance between prism table and ram: 380 mm
Throat depth: 310 mm
Table height: 800 mm
Table width: 110 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
