GASPARINI PSG 330/4000 Variante C

Photo Gallery

GASPARINI - PSG 330/4000 Variante CAT-BEN-GAS-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used GASPARINI PSG 330/4000 Variante C | Press For Sale

Show in original language

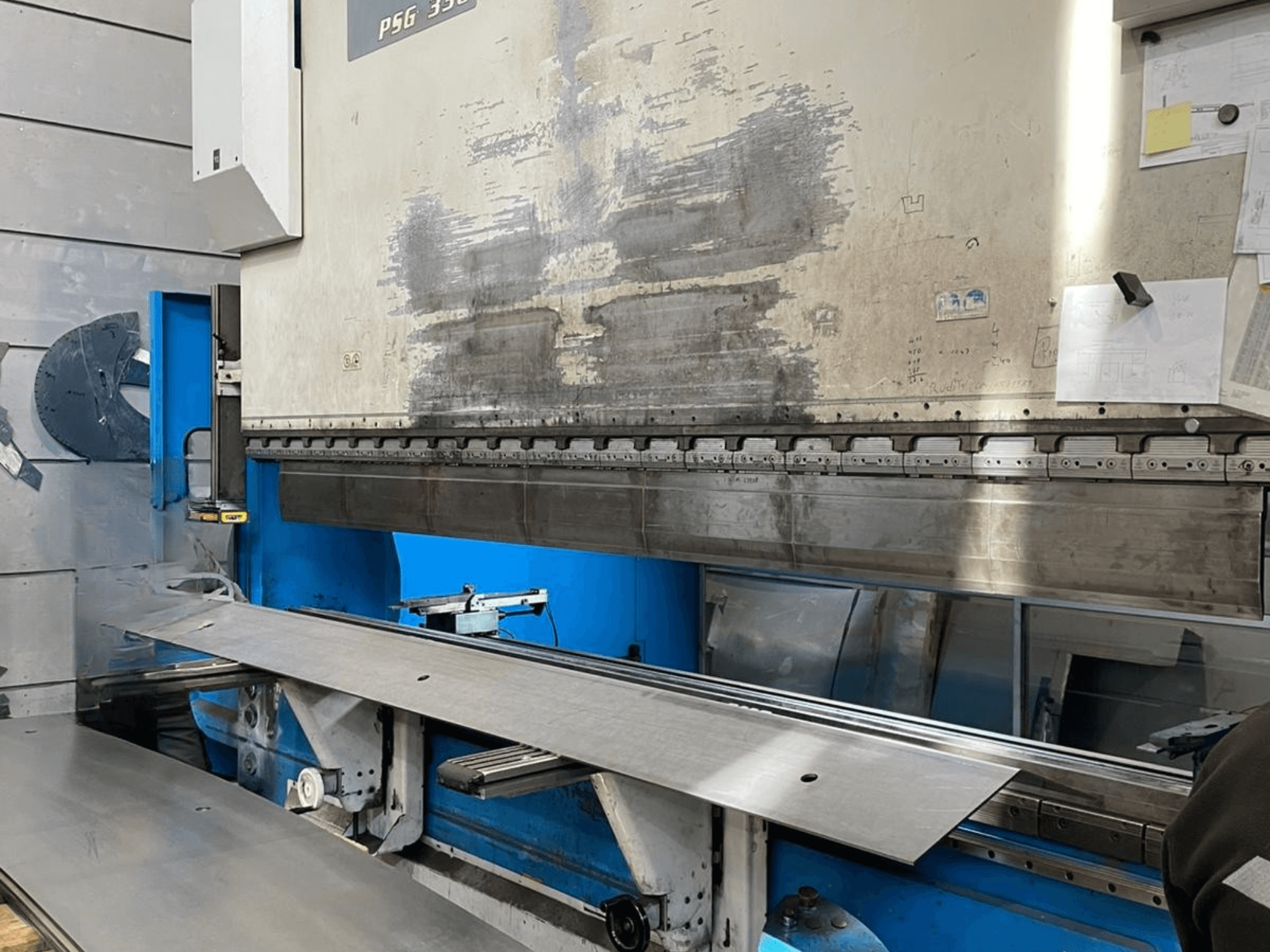

This 6-axis GASPARINI PSG 330/4000 Variante C was manufactured in 2007. It features a bending force of 330 tons and a useful bending length of 4100 mm. The machine includes a stroke of 400 mm and an X-axis travel of 800 mm. If you are looking to get high-quality bending capabilities, consider the GASPARINI PSG 330/4000 Variante C press brake we have for sale. Contact us for further details.

Overview

brand: GASPARINI
year: 2007
MODEL: PSG 330/4000 Variante C
production hours: 20700
application type: Bending
Location: Austria
machine type: Press Brake
control unit brand: DELEM

Technical Information - GASPARINI PSG 330/4000 Variante C

Control Unit

Control Brand: DELEM
Control Model: DA-66W

Dimensions

Machine Height: 3715 mm
Machine Length: 5100 mm
Machine Weight: 24000 kg
Machine Width: 2200 mm

Movement

Number of Axes: 6
X-axis Travel: 800 mm
Y-axis Travel: 400 mm
Z-axis Travel: 610 mm

Technical Specification

Bending Length: 4100 mm
Pressing Force: 3300 Kn

Additional Information

- Bending Force / Press Capacity: 330 Ton / 3300 kN

- Usable Bending Length: 4100 mm

- Distance Between Uprights: 3600 mm

- Stroke / Y-Axis Travel: 400 mm

- Installation Height / Daylight: 600 mm

- Throat / Ausladung: 500 mm

- Approach Speed: 0 - 200 mm/s

- Return Speed: 0 - 125 mm/s

- Working Speed: 0 - 8.5 mm/s

- X-Axis Speed: 300 mm/s

- X-Axis Accuracy: ±0.05 mm

- R-Axis Stroke / Travel: 250 mm

- R-Axis Speed: 160 mm/s

- R-Axis Accuracy: ±0.1 mm

- Z-Axis Speed (Option): 1000 mm/s

- Z-Axis Accuracy (Option): ±0.25 mm

- Z-Axis Repeatability (Option): ±0.15 mm

- Motor Power: 30 kW

- Power Supply: 400V / 50Hz

- Oil Tank Capacity: 420 L

- Recommended Hydraulic Oil: Shell Tellus Oil TX 46

- Machine Weight: ca. 24 Ton (23 t on nameplate)

- Table Width: 90 mm

- Working Height: 965 mm

- Hydraulic Components: Rexroth

- Electrical Components: Telemecanique

- Pneumatic Components: SMC

- Control Unit CNC: Delem DA-66W

- Safety System: Nuova Elettronica DFS Laser Beam - RX (Type 4 Safety Device)

- CNC controlled Z1-Z2-Z5 with 6-axis control DA - 66 W

- Tool holder with upper and lower jaw clamping system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
