Geminis - GHT-4 720 x 3000ES-TUR-GEM-1999-00001

Name: Geminis GHT-4 720 x 3000
Brand: Geminis
SKU: ES-TUR-GEM-1999-00001
Price: 67000 EUR
Availability: InStock

67,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Geminis GHT-4 720 x 3000 For Sale | gindumac.com

Show in original language

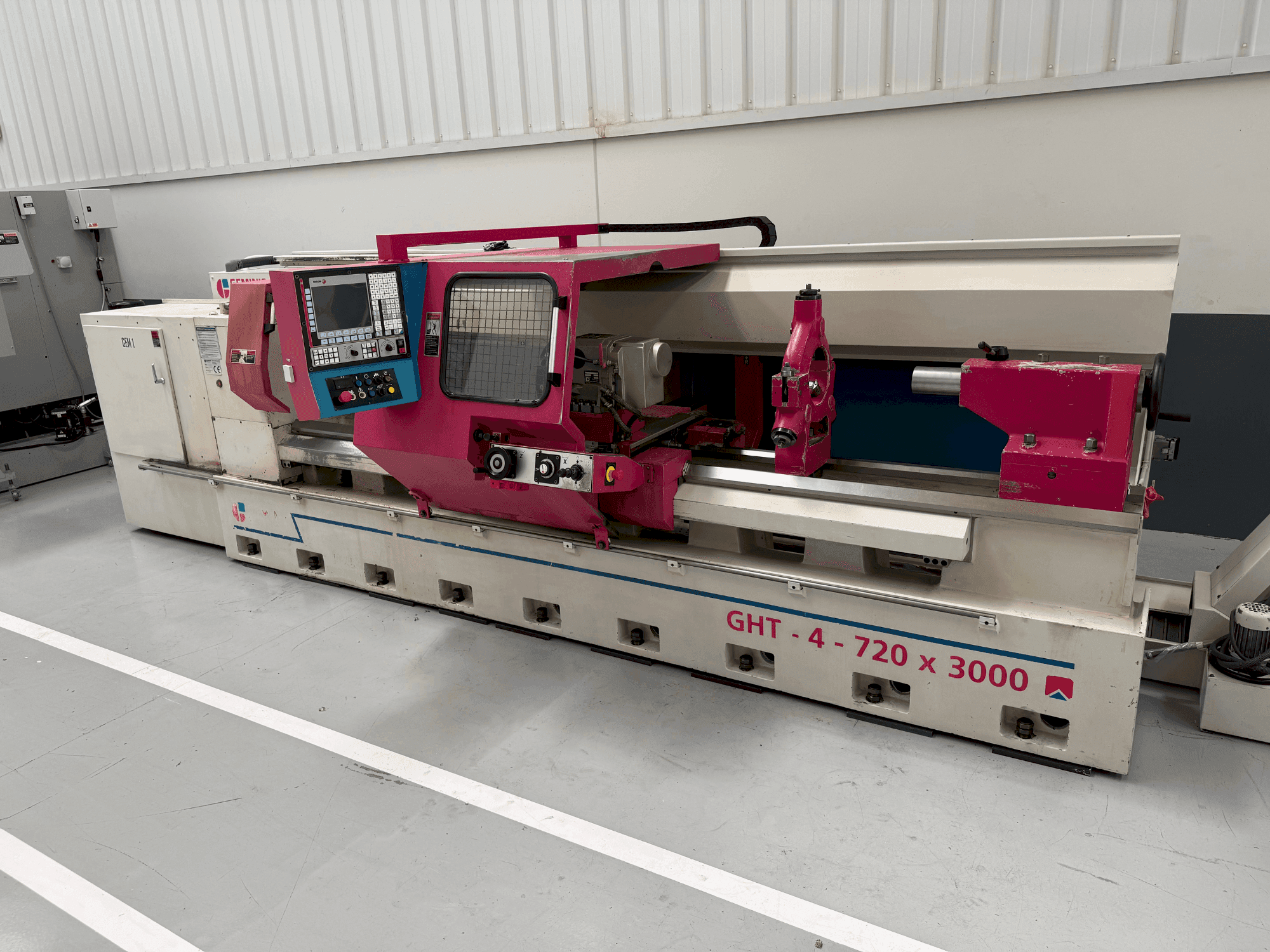

This Geminis GHT-4 720 x 3000 was manufactured in 1999. It features a maximum swing over bed of 720 mm and a distance between centres of 3000 mm. The main spindle supports a speed up to 1600 rpm with a power of 17/20.5 kW. It includes a Duplomatic turret with 8 tool positions and a longitudinal chip conveyor. Consider the opportunity to buy this Geminis GHT-4 720 x 3000 horizontal turning machine. Contact us for further details regarding this machine.

Overview

brand: Geminis
year: 1999
MODEL: GHT-4 720 x 3000
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine

Technical Information - Geminis GHT-4 720 x 3000

General Data

Measurements width: 2385 mm
Measurements depth: 6800 mm
Measurements height: 1765 mm
Machine weight: 5700 kg

Main drive

Spindle speed range: 1600 1/MIN
Spindle bore: 92 mm

Movement

X-AXIS Rapid traverse: 8000 mm/min
Z-AXIS Rapid traverse: 8000 mm/min

Workpiece

Workpiece drm over bed: 720 mm
Workpiece drm over support: 470 mm

Turret

Number of tool slots: 18
Rotating tools: Yes
Tool taper: Duplomatic VDI 40

Tail Stock

Pinol diameter: 100 mm
Pinol way: 200 mm
Pinol tool taper: Morse 6

Media

Chip conveyor: Yes

Additional Equipment

- Chuck Protection: Included
- Fix SteadyRest 20/200: Included
- Complete Rear Protection: Included
- 2 Handwheels in Carriage: Included Longitudinal
- Chip Conveyor: Included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle torque: 1590 / 1920 nm
- - Main spindle nose: din-55027-11
- - Spindle diameter on front bearing: 150 mm
- - Spindle automatic ranges: 2
- - Work feedrate x/z axis: 8000 mm/min
- - Distance between centres: 3000 mm
- - Autocentering chuck diameter: 315 mm
- - Bed width: 430 mm
- - Height up to flat guide: 775 mm // height of centres from flat guide: 366 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
