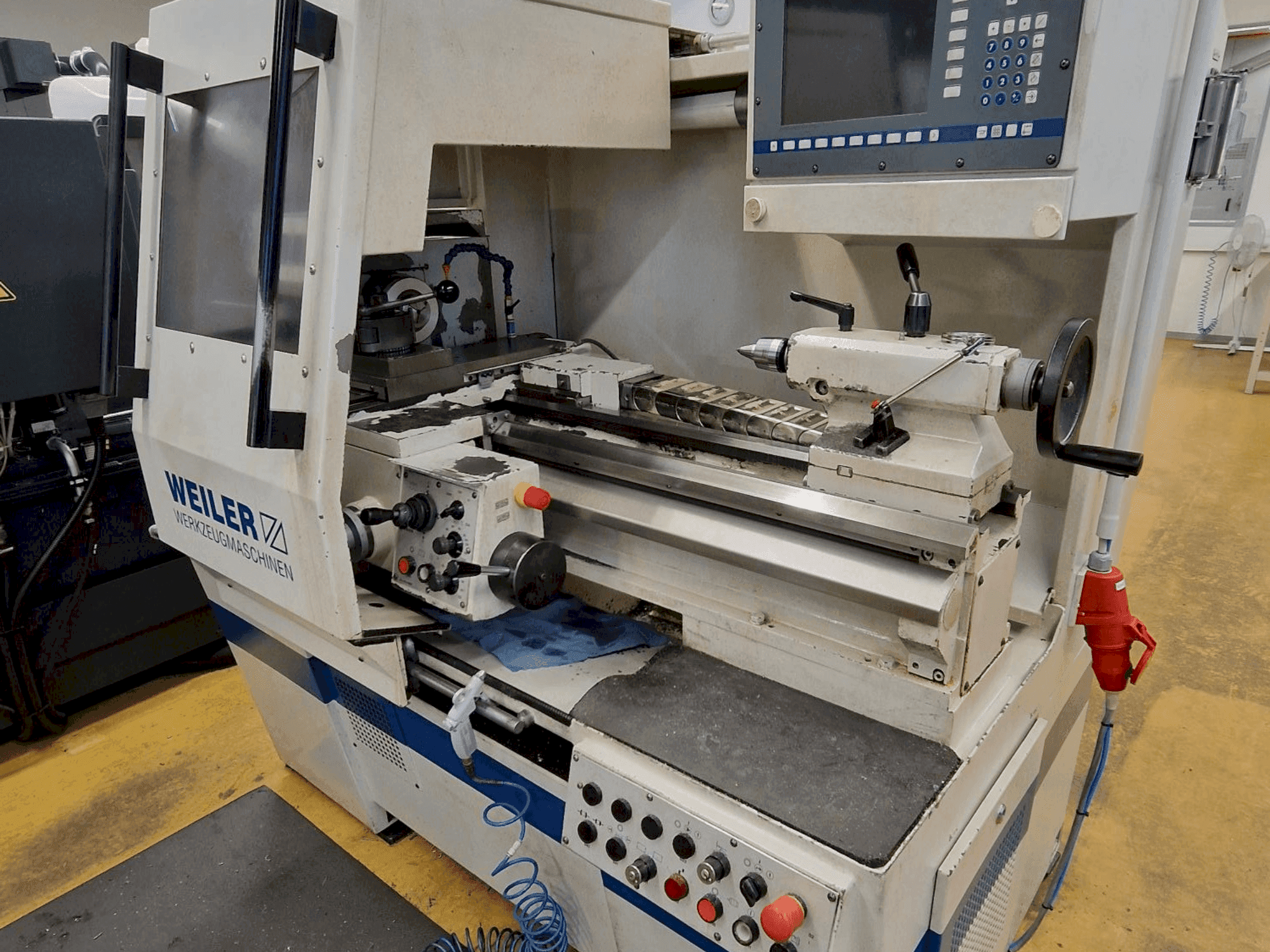

This Weiler E30 was manufactured in 1990. A robust horizontal turning machine featuring a spindle bore of 42mm and a swing diameter over bed of 330mm. It supports a wide range of thread cutting, from metric to DP thread, and includes a Multifix holder B. Ideal for detailed and versatile turning operations. Contact us for more information about this machine.
Overview
- brand: Weiler
- year: 1990
- MODEL: E30
- production hours: 51392
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Weiler E30
Dimensions
- Machine Depth: 1800 mm
- Machine Height: 1700 mm
- Machine Weight: 1300 kg
Additional Information
Additional equipment
- Multifix holder B mounted
- Fixed steady rest (option) clamping range: 15-100 mm
- Moving steady rest (option) clamping range: 10-85 mm
- Collets ranging from 3-28 mm (increments of 0.5 mm)
- Tailstock with an MK3 chuck
Machine Benefits
Technical Machine Benefits
- Drive power 100% / 60% ed: 9/11 kw
- Max. Torque on the turning spindle: 180 nm
- Total speed range: 1-4500 min⁻¹
- Feed drive: three-phase ac feed drives
- Feed range longitudinal: 0-20 mm/rev
- Ellganggeschwindghell longitudinal/plan: 10/7. 5/5/3. 5 m/min
- Quill diameter: 50 mm
- Quill stroke: 110 mm
- Inner taper of quill: mk 3
Extra Information
Swing diameter over facing slide: 160 mm Bed width: 240 mm Sliding movement of the facing slide: 180 mm Bed slide guide length: 395 mm Turning tool cross-section (height/width): 20 x 20 mm Spindle head according to DIN 55027 Gr. 5 Spindle diameter in the front bearing: 70 mm Inner taper of the main spindle: Mk 5 Workpiece Metric thread range: 0.1 - 400 mm Inch thread range: G/1" 1/4 - 56 Module thread range: 0.125 - 28 mm DP thread range: 1-224 G/" Number of threads max.: 50
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
