GER - RHC 1000ES-GRI-GER-1987-00001

Name: GER RHC 1000
Brand: GER
SKU: ES-GRI-GER-1987-00001
Price: 74000 EUR
Availability: InStock

74,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used GER RHC 1000 For Sale | gindumac.com

Show in original language

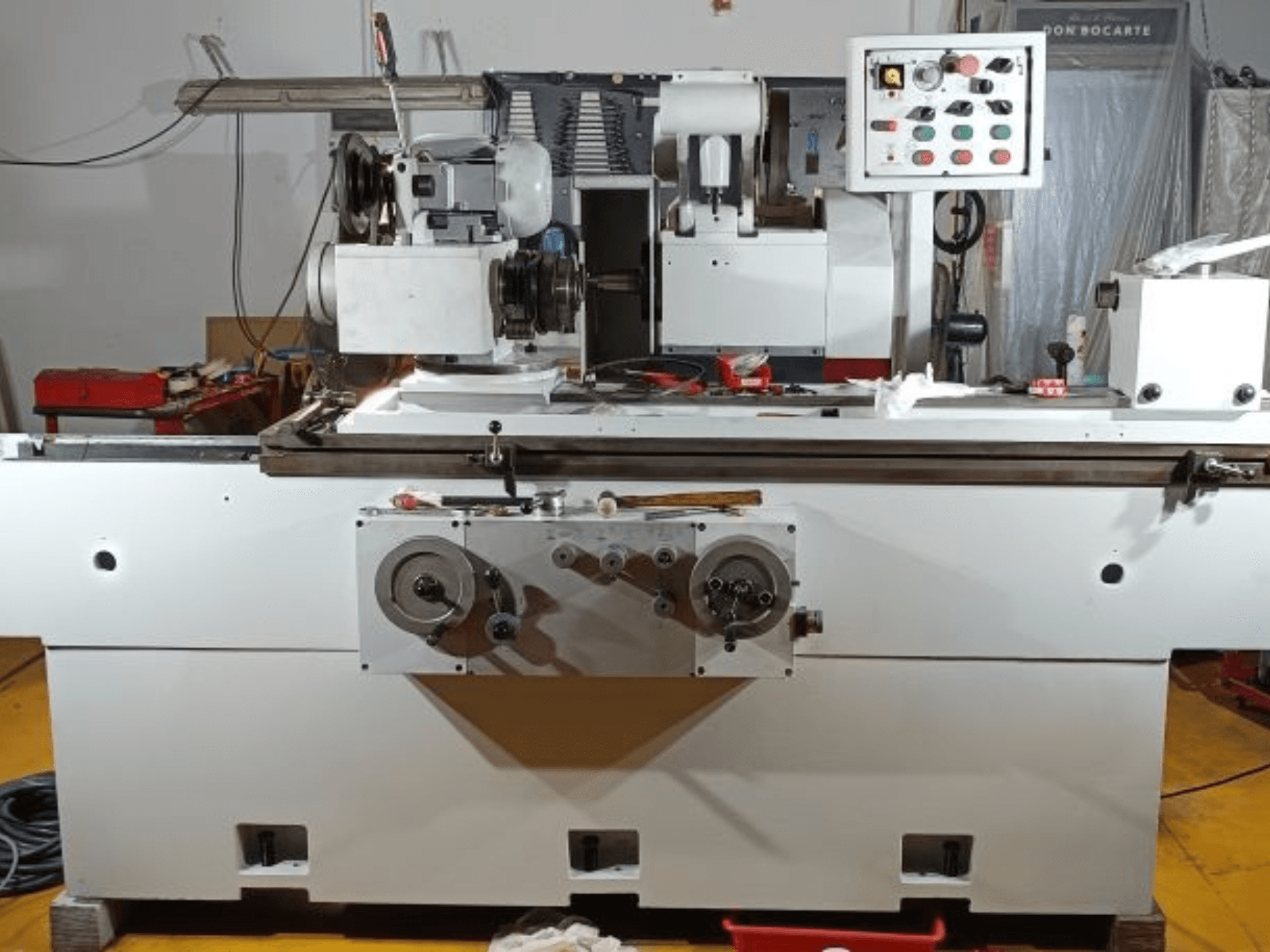

Cylindrical grinding machine manufactured in 1987. This GER RHC 1000 features a maximum grinding diameter of 355 mm and a distance between centres of 1000 mm. It is equipped with a grinding wheel spindle speed of 1500/1900 rpm and a powerful 7.5 kW motor. If you are looking to get high-quality grinding capabilities, consider the GER RHC 1000 machine we have for sale. Contact us for further details.

Overview

brand: GER
year: 1987
MODEL: RHC 1000
application type: Grinding
Location: Spain
machine type: Cylindrical Grinding Machine

Technical Information - GER RHC 1000

Dimensions

Machine Weight: 3700 kg

Movement

Number of Axes: 2

Additional Information

Centre height: 180 mm
Maximum grinding diameter: 355 mm
Distance between centres: 1000 mm
Workhead speed: 55–500 rpm
Grinding wheel dimensions: Ø400 × 50 (80) × Ø127 mm
Grinding wheel spindle speed: 1500/1900 rpm
Grinding wheel motor power: 7.5 kW
X-axis: Cross feed
Z-axis: Longitudinal travel
Table swivel: ±10°
Wheelhead swivel: Yes
Workhead swivel: Yes
Workhead taper: MT5
Tailstock taper: MT4
Machine dimensions: 3800 × 1800 mm

Additional equipment

Internal grinding attachment: Manual swing-out
Coolant filtration system: Decanting filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
