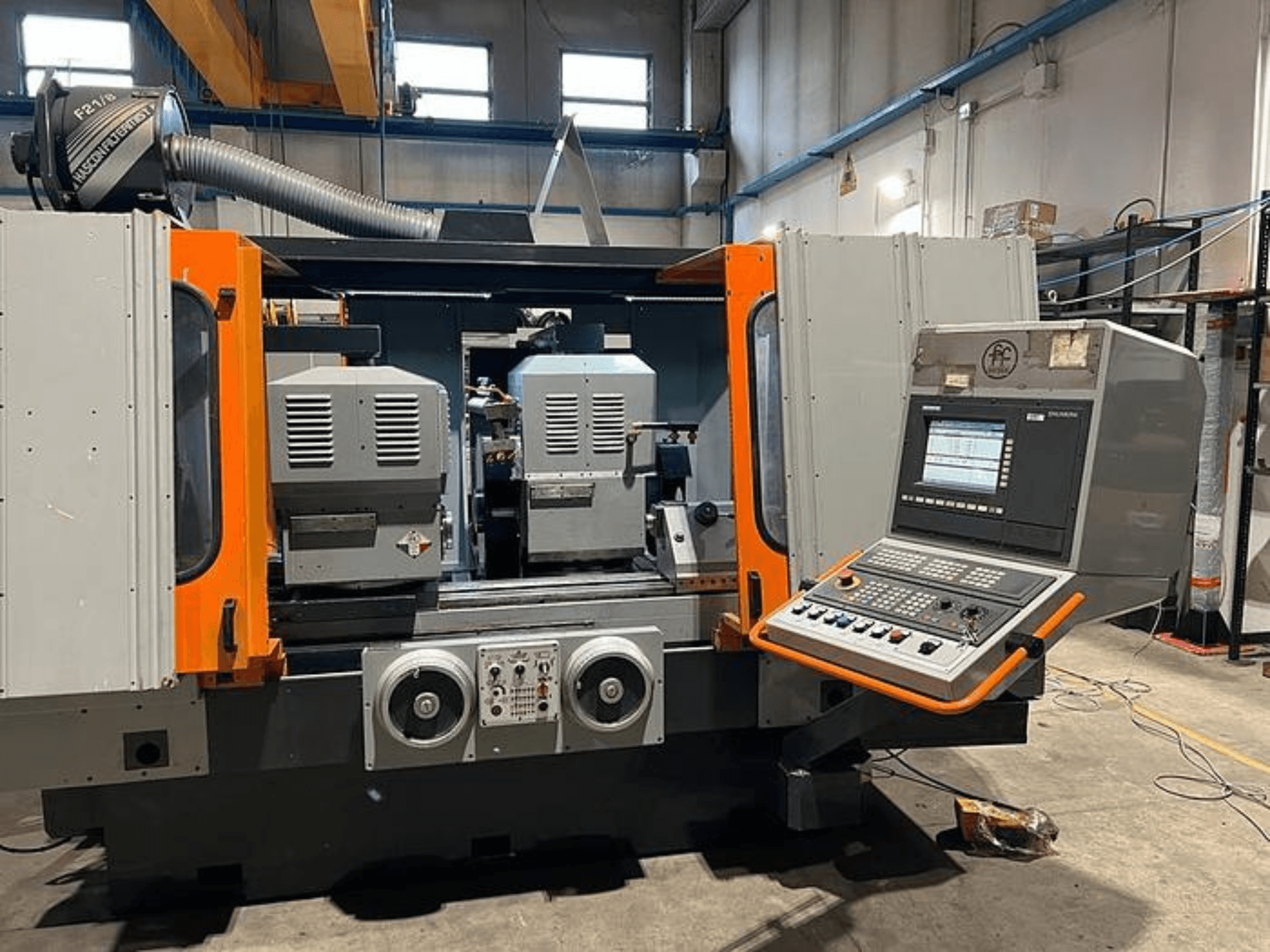

This Parpas RUAP 700 was manufactured in 2000. A used cylindrical grinding machine, fully reconditioned and in excellent condition. Features include Siemens Sinumerik 840C control, 700 mm distance between centers, and a maximum workpiece diameter of Ø 360 mm. If you are looking to get high-quality grinding capabilities, consider the Parpas RUAP 700 machine we have for sale. Contact us for more information.
Overview
- brand: Parpas
- year: 2000
- MODEL: RUAP 700
- application type: Grinding
- Location: Italy
- machine type: Cylindrical Grinding Machine
Technical Information - Parpas RUAP 700
Movement
- Number of Axes: 2
Additional Information
Status: Excellent
Control: Siemens Sinumerik 840C
Distance between centers: 700 mm
Center height: 185 mm
Maximum workpiece diameter: 360 mm
Maximum table travel (Z-axis): 820 mm
Table feed speed (Z-axis): 0–10 m/min
Maximum wheelhead travel (X-axis): 500 mm
Wheelhead feed speed (X-axis): 0–10 m/min
Max wheel size (left): 508 x 203 x 76 mm
Max facing wheel size (right): 450 x 127 x 50 mm
Wheel motor power: 10 hp
Workpiece spindle speed: 0–600 rpm
Wheel spindle speed: 0–2,880 rpm
Workpiece spindle taper: ISO 50
Tailstock internal taper: Morse 4
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
