➤ Used Gildemeister CTX 400 S2 For Sale | gindumac.com

Show in original language

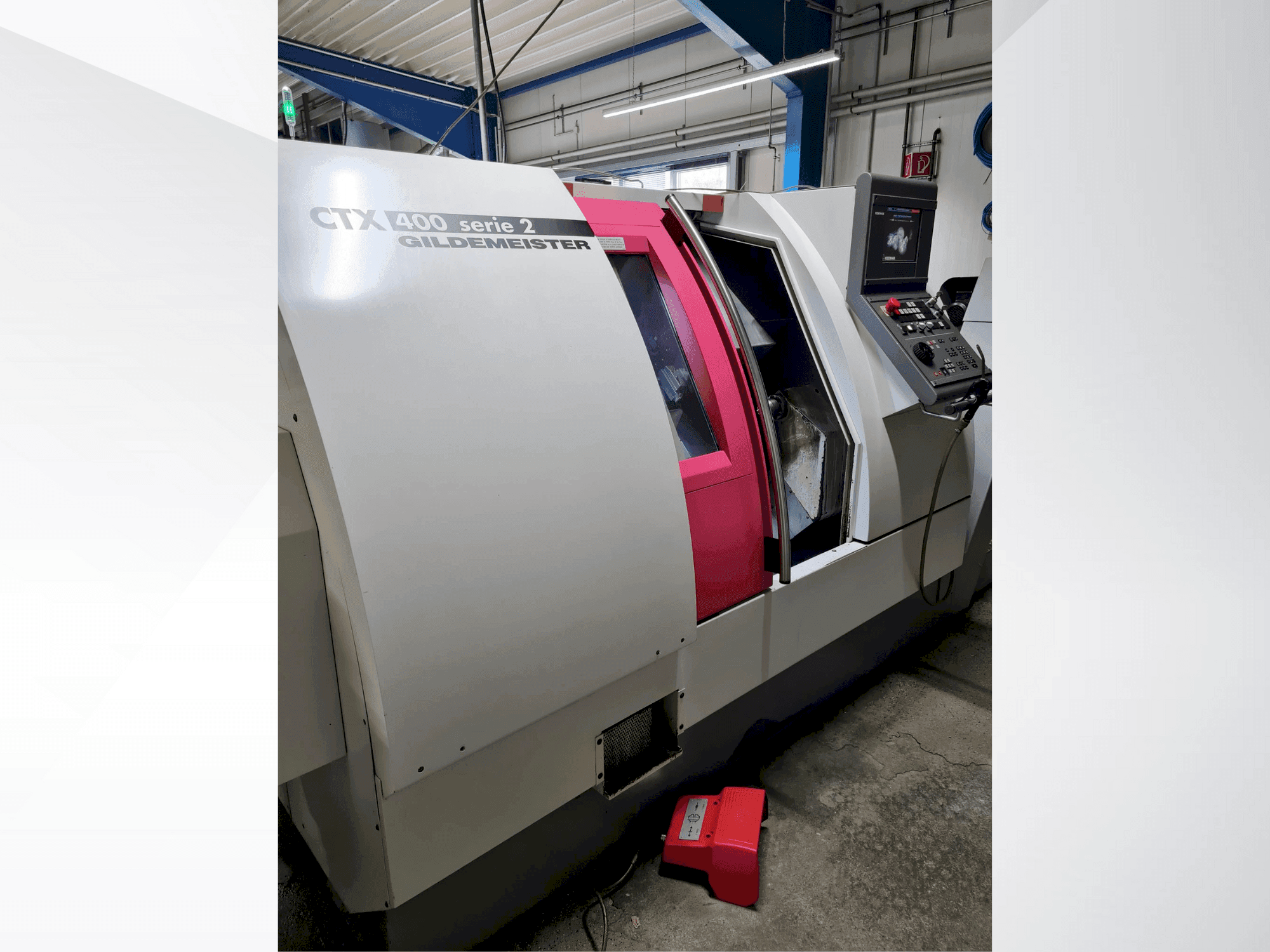

This Gildemeister CTX 400 S2 lathe was manufactured in 2001. It features a Heidenhain CNC control system, a turning diameter max of 400 mm, and a turning length max of 600 mm. Equipped with a tailstock with quill, collet chuck, two-jaw chuck, four-jaw chuck, bar loader, and 9 attached tool holders. The spindle bore is 78 mm. Ideal for precision tasks, the Gildemeister CTX 400 S2 machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: Gildemeister
year: 2001
MODEL: CTX 400 S2
production hours: 37702
application type: Turning
Location: Germany
machine type: Lathe
availability: Immediately
control unit brand: Heidenhain

Technical Information - Gildemeister CTX 400 S2

Control Unit

Brand: Heidenhain
Model: CNC Pilot with TURN PLUS

Main drive

Spindle bore: 78 mm
Number of axis: 2

Movement

X-AXIS Movement: 220 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece drm over bed: 570 mm
Workpiece drm over support: 420 mm
Workpiece x: 600 mm

Media

Chip conveyor: Yes

Additional Equipment

- Tailstock with quill
- Hainbuch collet chucks / a two-jaw chuck / a four-jaw chuck
- Various guide channels for FMB
- Not included: Collets and holders
- Bar loader
- 9 attached tool holders
- IRCO bar loader including all accessories
- All driven tools
- Complete original documentation
- 6 driven tools (3 x horizontal, 3x vertical) /

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Workpiece diameter: 400 mm / turning diameter max. 400 mm / turning length max. 600 mm
- - Standard turning diameter: 200 mm / turning diameter over bed 570 mm / turning diameter above the cross slide 420 mm
- - Spindle diameter: 120 mm / spindle bore 78 mm / max. Usable bar diameter (62) mm / chuck diameter max. 250 mm
- - Max. Usable bar diameter: 62 mm
- - Chuck diameter max: 250 mm
- - High precision turning with heidenhain control system
- - Extensive equipment setup for versatile operations
- - Travelling distance: traverse path - x 220 mm / traverse path - z 635 mm
Qualitative Machine Benefits:
- - Reliable and robust with substantial operating hours

Extra information

- Machine still under power / Machine can be tested under power at any time.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
