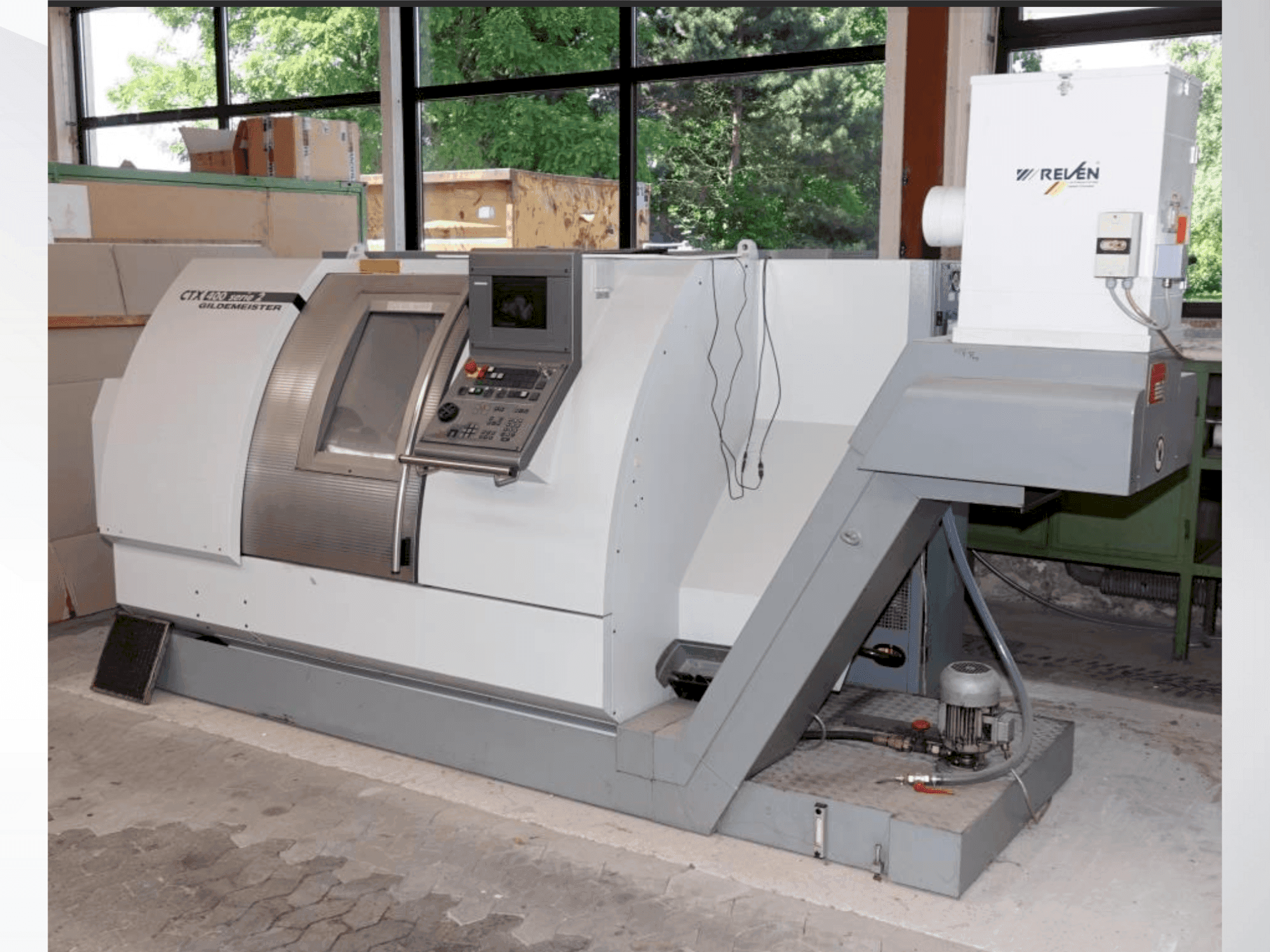

Front view of Gildemeister CTX-400 S2  machine

Gildemeister - CTX-400 S2DE-TUR-GIL-2002-00003

33,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Gildemeister CTX-400 S2 was manufactured in 2002. A robust lathe featuring a Heidenhein CNC Pilot 4290 V6.4 control, chip conveyor, and oil mist extraction. Includes over 100 accessories, many driven tools, and an operational measuring arm. Currently connected to power for on-site inspection. A valuable addition for any machining needs. Contact us for more information.

Overview

  • brand: Gildemeister
  • year: 2002
  • MODEL: CTX-400 S2
  • production hours: 40302
  • application type: Turning
  • Location: Germany
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Heidenhain

Technical Information - Gildemeister CTX-400 S2

General Data

  • Measurements width: 1750 mm
  • Measurements depth: 3210 mm
  • Measurements height: 1750 mm
  • Machine weight: 5300 kg

Control Unit

  • Brand: Heidenhain
  • Model: CNC Pilot 4290 V6.4 .... 14a

Main drive

  • Spindle speed range: 25-5000 rpm 1/MIN
  • Spindle bore: 79mm
  • Number of axis: 2

Movement

  • X-AXIS Movement: 220 mm
  • Z-AXIS Movement: 635 mm

    Additional Equipment

    • - Chip conveyor
    • - Oil mist extraction
    • - Measuring arm
    • - Over 100 accessories including driven tools

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Circulation -Ø over bedway cover: 570mm // circulation -Ø over face guide cover: 420mm
        • - Plan path: 220mm
        • - Longitudinal travel: 635mm
        • - Spindle head: -Ø: 170mm // spindle head: -Ø in front bearing: 120mm
        • - Drive power 100% ed: 21kw
        • - Max. Torque: 240nm // holding torque: 200nm
        • - Speed: 100 min^-1
        • - Driven tools + c-axis
      • Qualitative Machine Benefits:
        • - Has roller guides
        • - Has direct drive (instead of belt drive)
        • - Has three-phase drives - i. E. Brushless!!!
        • - Keyboard is already equipped with hall sensors (wear-free)
        • - All relevant machine parameters are permanently stored in the sik module.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
