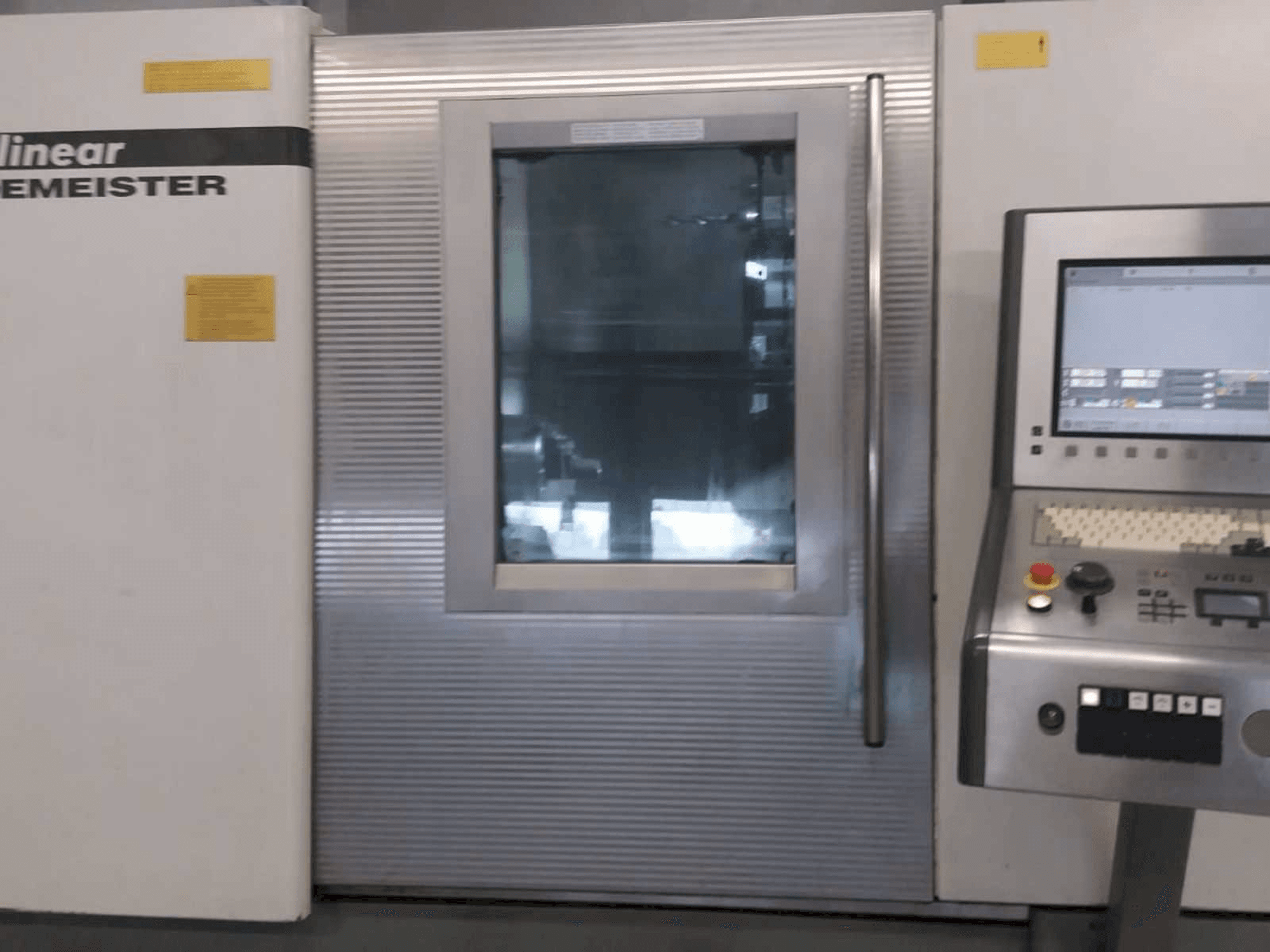

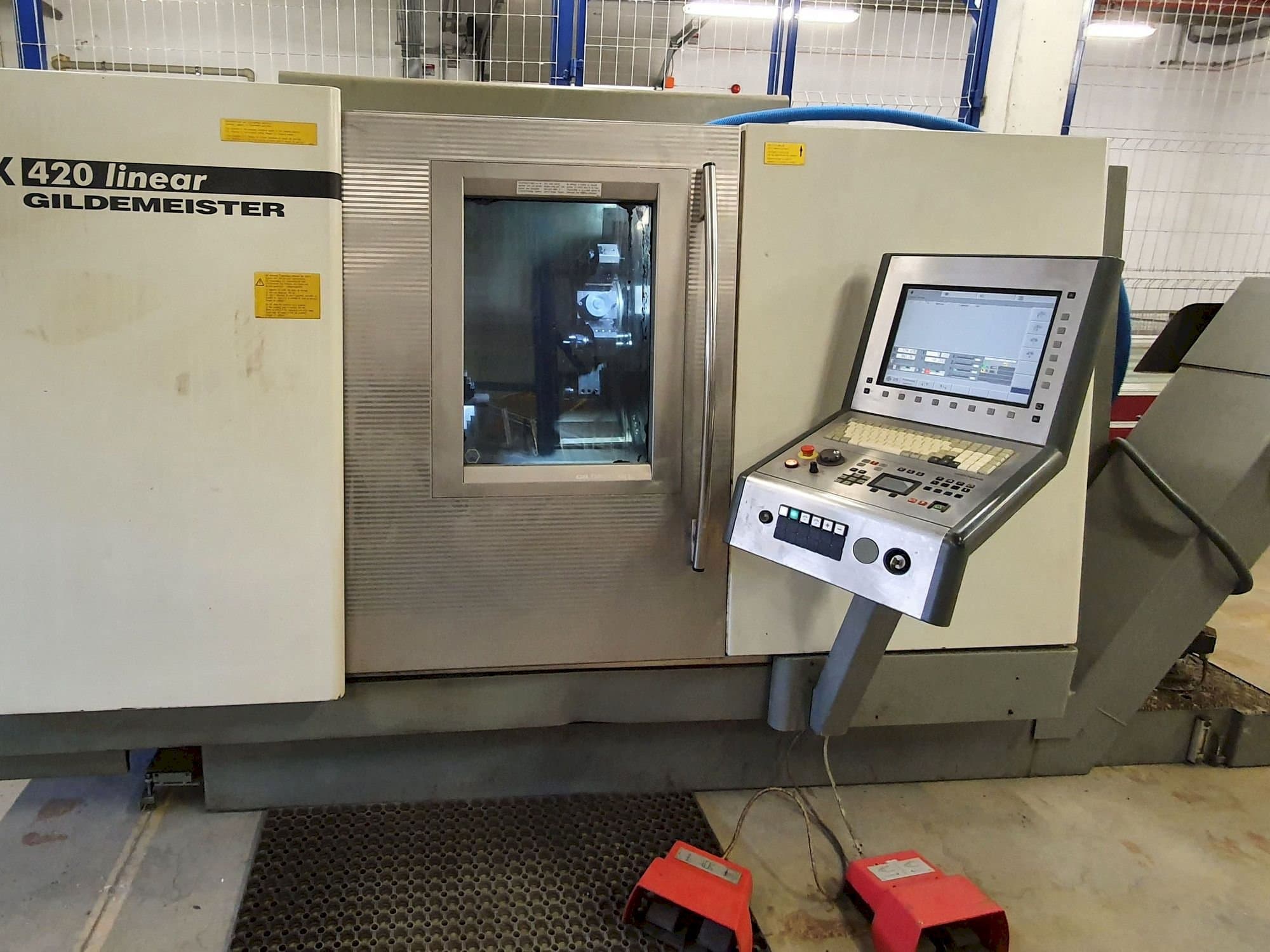

Gildemeister - CTX 420 linearPL-TUR-GIL-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Gildemeister CTX 420 Turning

Show in original language

This Gildemeister CTX 420 linear Lathe was manufactured in 2003. This 4 axis machine has been working for 81891 hours, of which 22974 are spindle working hours. It operates through a Heidenhain DataPilot 4290V7 turnplus control unit. This machine can perform with a spindle speed up to 5000 rpm.

Overview

brand: Gildemeister
year: 2003
MODEL: CTX 420 linear
production hours: 81891
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - Gildemeister CTX 420 linear

Control Unit

Control Brand: HEIDENHAIN
Control Model: DataPilot 4290V7 turnplus

Dimensions

Machine Depth: 2460 mm
Machine Height: 2080 mm
Machine Weight: 6000 kg

Movement

Number of Axes: 4
X-axis Travel: 260 mm
Y-axis Travel: 40 mm
Z-axis Travel: 635 mm

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Tool measurement sensor
X hydraulic counterweight
Scraper chip feeder
Air conditioning of electrical cabinets
Spindle air conditioning
Tool head air conditioning
Original documentation in english
German, and programmer's manual
Electricity: 400v/50hz
Total power requirement: 50kva

Technical Machine Benefits

Turret head 12 pos. / vdi 40 din 69880 (all driven)
Turning diameter: 324 mm
Turning length: 600 mm
Bar diameter: 65 mm
Swing diameter: 680 mm
Driven tools 12 pos. 4. 500 u/mi
Taper in tailstock-quill mk 5
Tailstock travel: 580 mm
205 mm hydraulic chuck
Automatic programmable tailstock, rapid traverse 6 m / min
