Gildemeister CTX 500

Photo Gallery

Gildemeister - CTX 500DE-TUR-GIL-1994-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

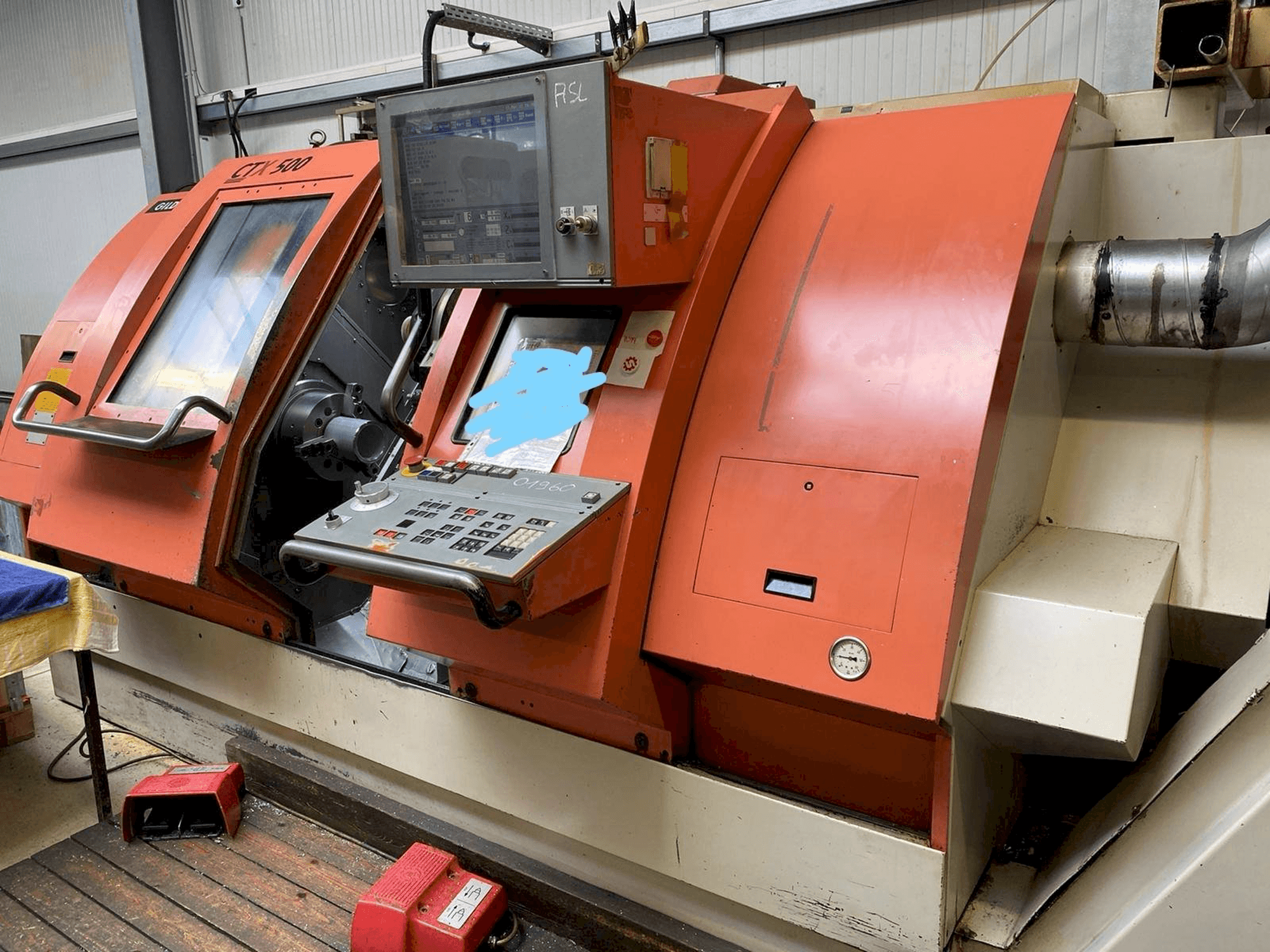

Gildemeister CTX 500 lathe

Show in original language

This Gildemeister CTX 500 lathe was made in the year 1994. It is equipped with a Turn Plus EP1190 control unit. The machine has a spindle speed of 16 - 3200 rpm.

Overview

brand: Gildemeister
year: 1994
MODEL: CTX 500
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Gildemeister CTX 500

Dimensions

Machine Depth: 2190 mm
Machine Height: 1873 mm
Machine Weight: 7200 kg

Technical Specification

Spindle Speed: 3200 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Control panel and software ep90 bft90-k ; rs422 2011 replaced

Technical Machine Benefits

Swing diameter over bedway cover 600 mm
Swing diameter over face guide 40 mm
Chuck diameter 250/315 mm
Face stroke 275 mm
Longitudinal stroke 1065 mm
Spindle head (flat flange) 220 h5 mm
Spindle diameter in front bearing 120 mm
Spindle bore 85 mm
Spindle clearance (option) 73 mm
Control type ep1190 (ep90)turn plus comm 3152621 with update software release va. 6 activation option 512 tools 2004

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
