Gildemeister - CTX 600DE-TUR-GIL-1996-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used Gildemeister CTX 600 For Sale | gindumac.com

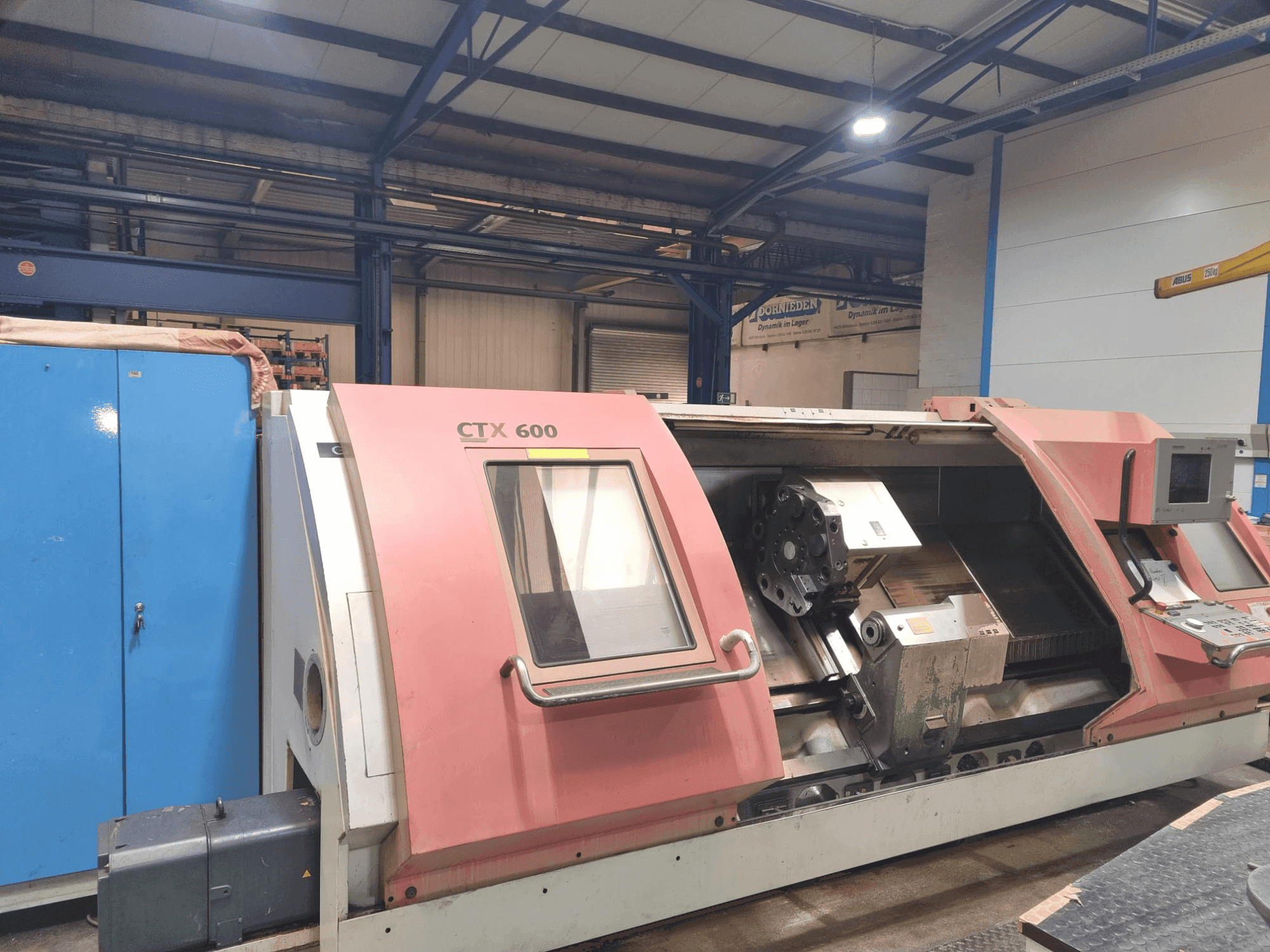

This 2-axis Gildemeister CTX 600 horizontal turning machine was manufactured in 1996. It offers robust construction and reliable performance for precision turning operations. Consider the opportunity to buy this Gildemeister CTX 600 horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: Gildemeister
- year: 1996
- MODEL: CTX 600
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Gildemeister CTX 600
Dimensions
- Machine Depth: 6388 mm
- Machine Height: 3437 mm
- Machine Weight: 9150 kg
Movement
- Number of Axes: 2
Technical Specification
- Spindle Speed: 3050 RPM
Additional Information
Additional equipment
- Number of tool stations: 12
Machine Benefits
Technical Machine Benefits
- Drive power at 100% duty cycle: 27 kw
- Maximum torque: gear stage 1: 1680 nm / gear stage 2: 420 nm
- Orbital diameter over bed cover: 650 mm / orbital diameter over guide cover: 480 mm
- Planar travel: 320 mm / longitudinal travel: 2097 mm
- Spindle head (flat flange): 220 h5 mm/ spindle head diameter at front bearing: 140 mm/ spindle bore: 107 mm/chuck diameter: 315 (400) mm
- X-feed force at 100% duty cycle: 800 n / z-feed force at 100% duty cycle: 1500 n / x-axis rapid traverse: 10 m/min / z-axis rapid traverse: 15 m/min / measuring system: incremental rotary encoder
- Universal disc turret, automatic switching with direction logic / tool shank (din 69880): 50 mm / turret indexing time per station (180°): 1. 0 (3. 0) sec / maximum indexing per hour: 400
- Quill diameter: 120 mm / quill stroke: 120 mm / quill pressure: 1400 n
- Steady rest / self-centering hydraulic steady rest: 22 - 150 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
