Gildemeister - GLD 20PL-TUR-GIL-2001-00001

Name: Gildemeister GLD 20
Brand: Gildemeister
SKU: PL-TUR-GIL-2001-00001
Price: 13000 EUR
Availability: InStock

13,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Gildemeister GLD 20 For Sale | gindumac.com

Show in original language

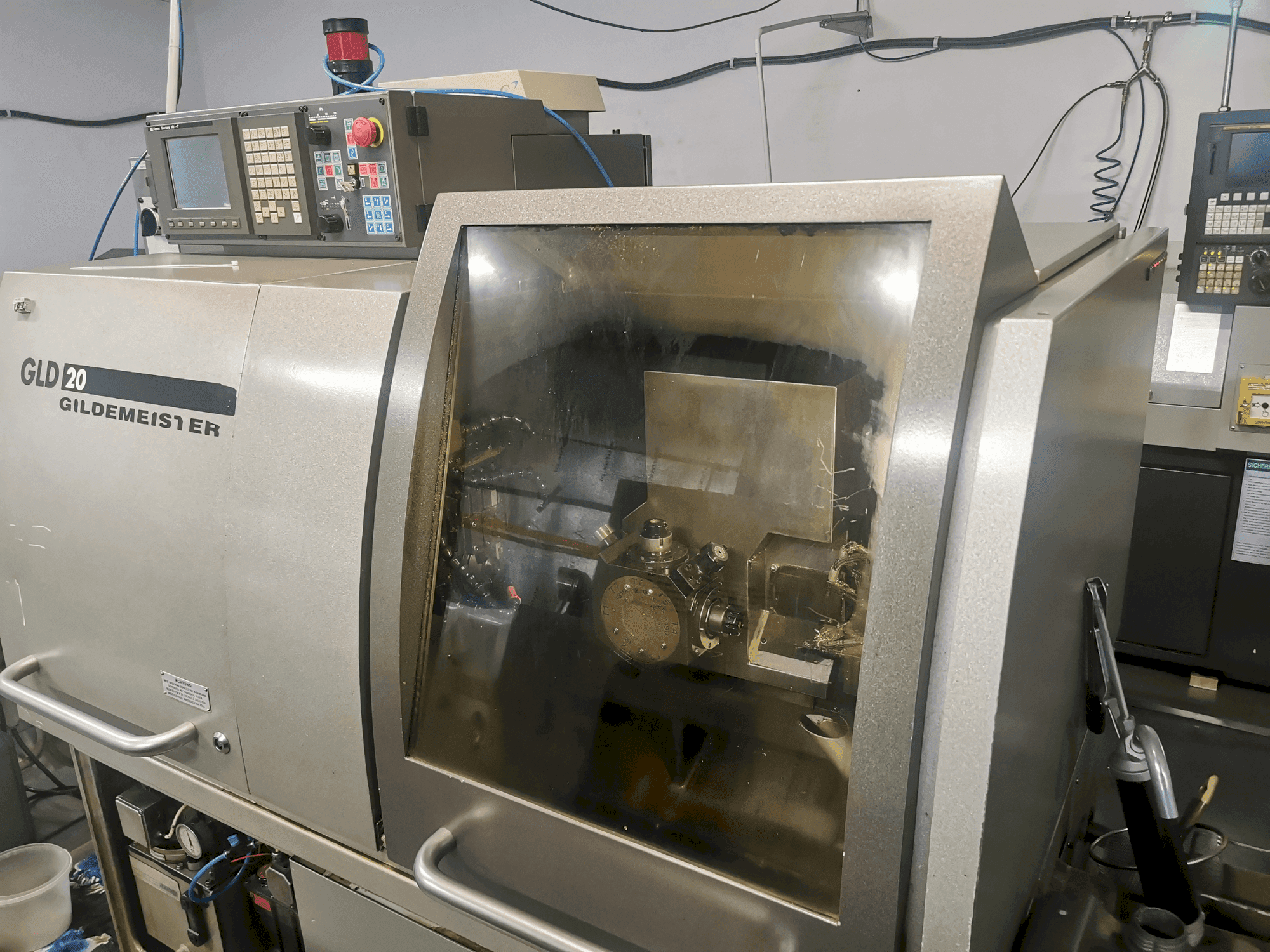

This 5-axis Gildemeister GLD 20 was manufactured in 2001, featuring a FANUC Series 18i-T control system. It offers a maximum turning diameter of 20 mm and a turning length of approximately 70 mm. The main spindle reaches up to 8000 rpm, while the sub-spindle tops at 5000 rpm. Includes a chip conveyor, collets, tool holders, spare parts, and an IEMCA GENIUS 226/32 bar feeder. If you are looking to get high-quality turning capabilities consider the Gildemeister GLD 20 machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: Gildemeister
year: 2001
MODEL: GLD 20
production hours: 17386
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - Gildemeister GLD 20

General Data

Measurements width: 1200 mm
Measurements depth: 2800 mm
Measurements height: 1800 mm
Machine weight: 2000 kg

Control Unit

Brand: FANUC
Model: Series 18i-T

Main drive

Number of spindles: 2
Spindle speed range: 8000 rpm 1/MIN
Number of axis: 5

Media

Power consumption: 18 kW
Chip conveyor: Yes

Additional Equipment

- Collets
- Tool Holders
- Spare Parts
- Drip Trays
- Full Technical Documentation
- Bar Feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Spindle speed (sub-spindle): 5000 rpm
- - Power supply: 3x 400 v, 50 hz
- - Rapid traverse in all axes: 12 m/min
- - Maximum turning diameter: 20 mm
- - Minimum turning diameter: 3 mm
- - Turning length: approx. 70 mm
- - The machine is generally in working condition but requires a technical inspection. It has minor oil leaks that should be addressed.

Extra information

- Bar Feeder Specifications Max. Bar Length: 3210 mm Max. Bar Diameter: 26 mm Max. Feed Speed: 1250 mm/s Bar Change Time: 30 s Dimensions (LxWxH): 4150 x 500 x 1200 mm Weight: 650 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
