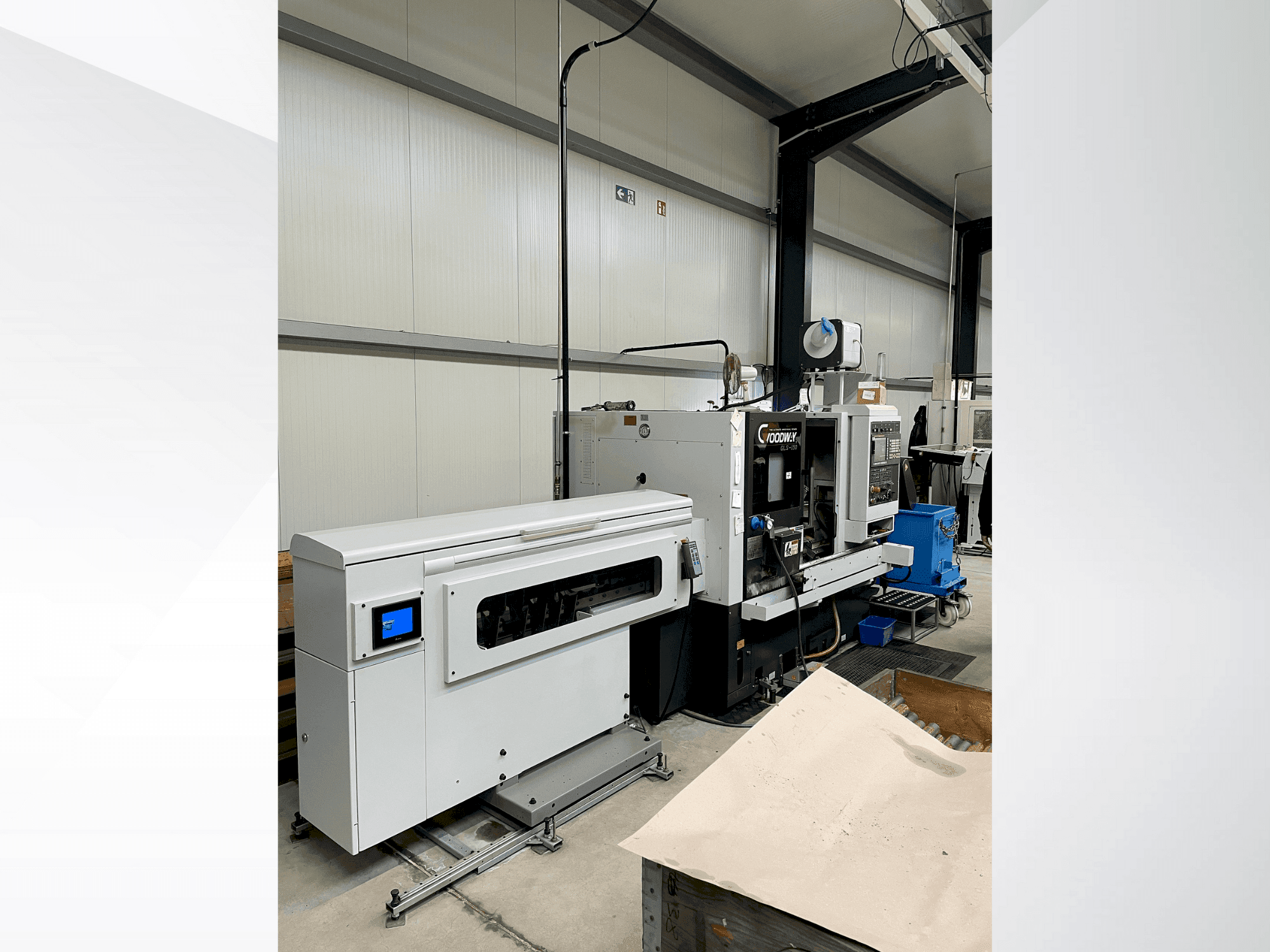

This Goodway GLS-150 was manufactured in 2018. A robust horizontal turning machine featuring a FANUC 01-T control system with a 10.4" LCD and Manual Guide functionality. It boasts a spindle speed of 60-6000 RPM and a maximum bar capacity of 51 mm. Equipped with a high-precision linear guide on all axes, a 12-station turret, and a reinforced coolant pump for enhanced performance. If you are looking to get high-quality turning capabilities consider the Goodway GLS-150 machine we have for sale. Contact us for more information.
Overview
- brand: Goodway
- year: 2018
- MODEL: GLS-150
- production hours: 4137
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Goodway GLS-150
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-TF
Movement
- Number of Axes: 2
- X-axis Travel: 210 mm
- Z-axis Travel: 520 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
- Through-spindle Coolant: Yes
- Tool Stations: 12
Additional Information
Additional equipment
Turret with Direct Mount (12 stations)
High-Precision Linear Guides on All Axes
Coolant System
Hydraulic System
Full Enclosure
Automatic Lubrication System
Signal Lamp (3-color)
Work Area Lighting
Automatic Machine Shutdown (via M-Code)
Automatic Chuck Operation
Machine Benefits
Qualitative Machine Benefits
Prepared for a live center with mk4 mount
Tool monitoring system: load monitoring
Control cabinet with heat exchanger
Foundation and leveling accessories
Set of auxiliary tools
Machine documentation
Ce certification
Renishaw-hpra measuring arm
Stable 30° slant bed design for versatile, precise, and cost-effective machining solutions.
Machine connection data: compatible with clamping device 2703 / 0007, chuck connection to standard spindle, spindle standard: din 55026, short taper size 5/6
Technical Machine Benefits
Max turning length: 500 mm
Control: FANUC Series 0i-TF
Pinole diameter: 70 mm
Programmable quill travel: 150 mm
Tailstock travel: 290 mm
Reinforced coolant pump (pressure: 20 bar)
Parts catcher for main spindle
Transport conveyor for finished parts
8 additional m-functions
Interface for bar loader
Bar loader: barload bk105
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
