HAAS GM-2 AX

Photo Gallery

HAAS - GM-2 AXIT-MIL-HAA-2020-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS GM-2 AX - Gantry Mill For Sale | gindumac.com

Show in original language

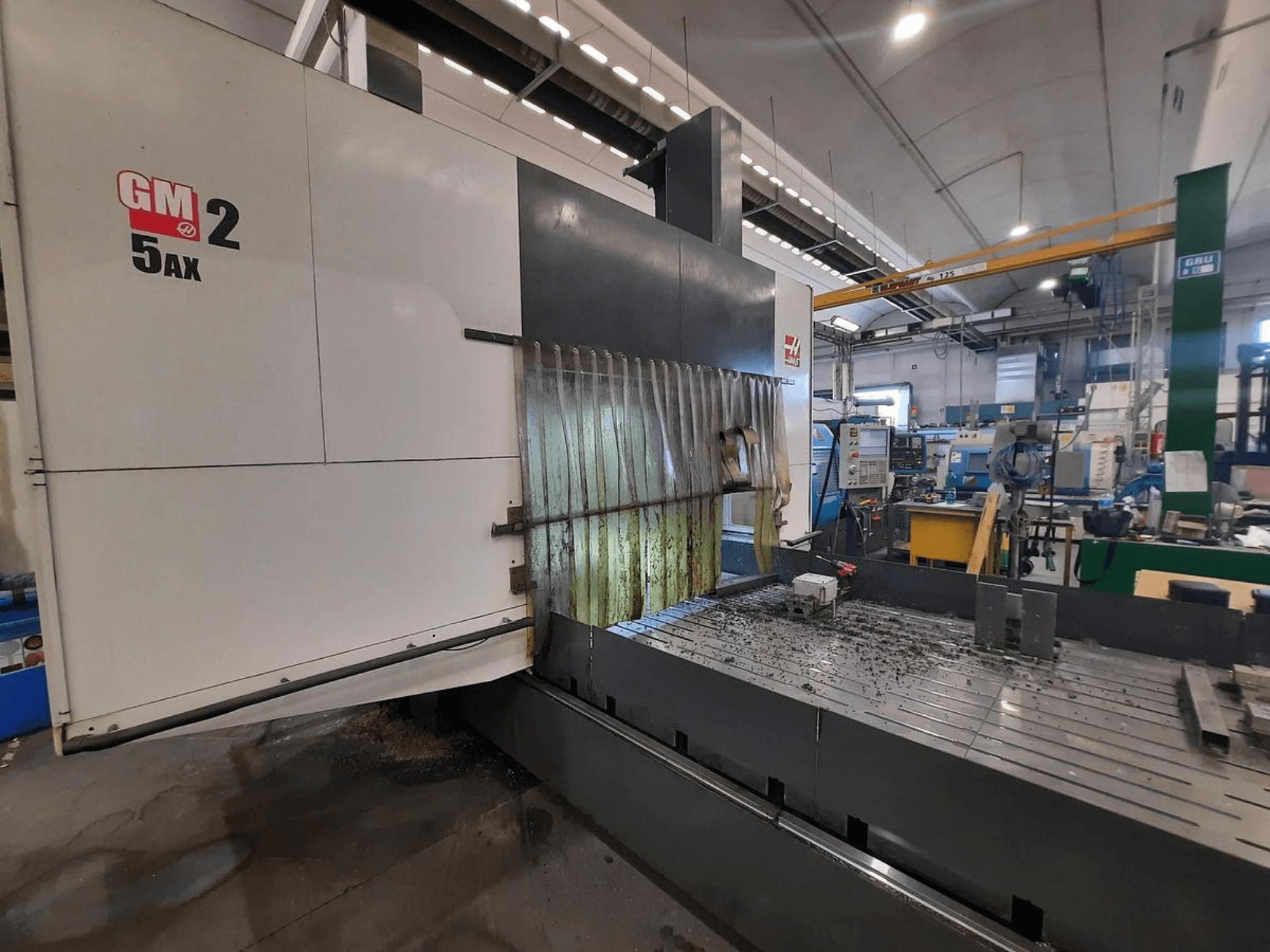

This 5-axis HAAS GM-2 AX gantry milling machine was manufactured in 2020. It features extensive X, Y, and Z-axis travels of 3,683 mm, 2,223 mm, and 998 mm respectively, and a high spindle speed up to 20,000 rpm. The machine supports a maximum table load of 2,722 kg and includes a 30+1 position tool changer. If you are looking to get high-quality milling capabilities consider the HAAS GM-2 AX machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2020
MODEL: GM-2 AX
application type: Milling
Location: Italy
machine type: Gantry Milling Machine

Technical Information - HAAS GM-2 AX

Dimensions

Machine Height: 4089 mm
Machine Length: 6127 mm
Machine Weight: 10000 kg
Table Load: 2722 kg

Movement

Number of Axes: 5
X-axis Travel: 3683 mm
Y-axis Travel: 2223 mm
Z-axis Travel: 998 mm

Technical Specification

Max. Tool Weight: 5.4 kg
Spindle Power: 12 kW
Spindle Speed: 20000 RPM

Additional Information

B-axis tilt: +120° / -120°
C-axis rotation: +245° / -245°
Spindle nose to table distance (Min–Max): 127–940 mm
Maximum spindle torque: 15.3 Nm @ 7,500 rpm
Spindle taper: HSK-A63
Maximum B-axis speed: 110°/sec
Maximum C-axis speed: 200°/sec
Table length: 3,658 mm
Table width: 1,829 mm
Table thickness: 25 mm
Distance between columns: 1,905 mm
Maximum cutting speed: 12 m/min
Rapid feed (X/Y/Z): 12.0 / 48.0 / 30.0 m/min
Maximum axis thrust (X/Y/Z): 20,017 / 7,340 / 8,896 N
Tool changer type: SMTC
Tool magazine capacity: 30 + 1 positions
Maximum tool diameter in magazine: 64 mm
Maximum tool diameter without adjacent tools: 89 mm
Maximum tool length: 279 mm
Coolant tank capacity: 360 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
